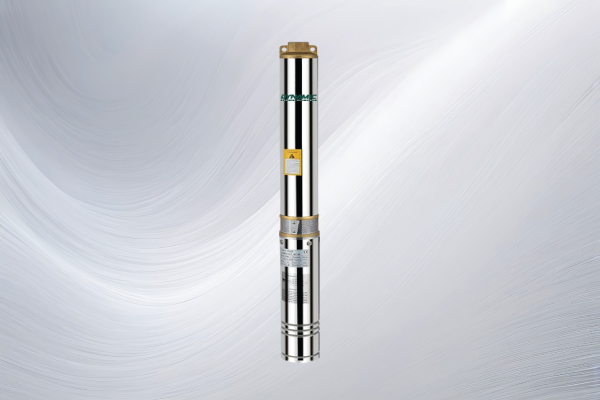

Technical Data
Identification Code
- 4STM10-6
- 4:Well diameter:4"
- ST: submersible pump model
- M:Single phase motor(three phase without M)
- 2:Capacity(m3/h)
- 6:Stage
Fields of Application
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
Technical Data
- Suitable fluids
- Clear, free from solid or abrasive substances,
- Chemically neutral and close to the characteristics of water Performance
- Speed range:2900rpm
- Fluid temperature range:-10o -4OoC
- Max Working pressure:40bar
- Ambient Temperature
- Permissible up to 40oC
Power
- Single phase 1-240V/50Hz,50Hz
- three-phase: 380V-415V/50Hz,60Hz
Motor
- Degree of protection: IP68
- Insulation class: B
- Construction Materials
- Casing both of pump and motor, pump shaft: stainless steel AISI304
- Outlet and Inlet: bronze
- Impeller and diffuser, non-return valve: thermoplastic resin PPO
Accessories
- Control switch, waterproof glue.

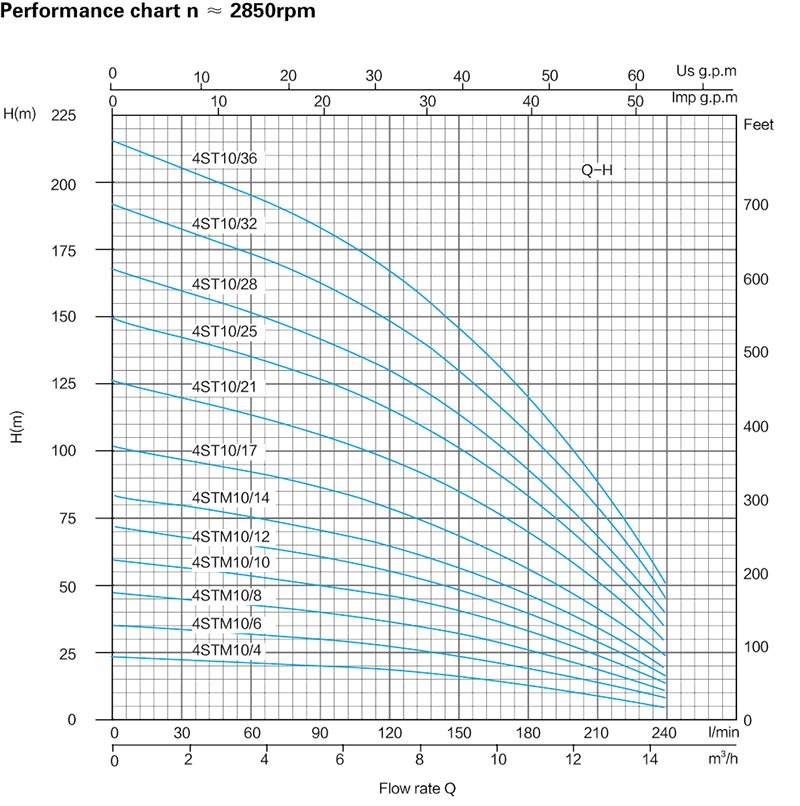

| MODEL | P2 | DELIVERY n~2850 l/min | ||||||||||||
| 1~ 220V/240V |
3~ 380V/415V |
KW | HP | Q | m3/h | 0 | 1.8 | 3.6 | 5.4 | 7.2 | 9 | 10.8 | 12.6 | 14.4 |
| I/min | 0 | 30 | 60 | 90 | 120 | 150 | 180 | 210 | 240 | |||||
| 4STM10/4 | 4ST10/4 | 0.55 | 0.75 | Head(m) | 24 | 23 | 22 | 20 | 19 | 16 | 13 | 10 | 6 | |
| 4STM10/6 | 4ST10/6 | 0.75 | 1.1 | 36 | 34 | 32 | 30 | 28 | 24 | 20 | 15 | 8 | ||
| 4STM10/8 | 4ST10/8 | 1.1 | 1.5 | 48 | 46 | 43 | 41 | 37 | 33 | 2 | 20 | 11 | ||
| 4STM10/10 | 4ST10/10 | 1.5 | 2 | 60 | 57 | 54 | 51 | 47 | 41 | 34 | 25 | 14 | ||
| 4STM10/12 | 4ST10/12 | 2.2 | 3 | 72 | 69 | 65 | 61 | 56 | 49 | 40 | 30 | 17 | ||
| 4STM10/14 | 4ST10/14 | 2.2 | 3 | 84 | 80 | 76 | 71 | 65 | 57 | 47 | 35 | 20 | ||
| 4ST10/17 | 3 | 4 | 102 | 97 | 92 | 86 | 79 | 69 | 57 | 42 | 24 | |||
| 4ST10/21 | 4 | 5.5 | 126 | 120 | 114 | 107 | 98 | 86 | 71 | 52 | 30 | |||
| 4ST10/25 | 5.5 | 7.5 | 150 | 143 | 135 | 127 | 117 | 102 | 84 | 62 | 35 | |||
| 4ST10/28 | 5.5 | 7.5 | 168 | 160 | 152 | 142 | 1321 | 114 | 94 | 70 | 40 | |||
| 4ST10/32 | 7.5 | 10 | 192 | 133 | 173 | 163 | 149 | 131 | 108 | 80 | 45 | |||
| 4ST10/36 | 7.5 | 10 | 216 | 206 | 195 | 183 | 168 | 147 | 121 | 90 | 51 | |||
| MODEL | DN | Dimensions | |||||
| Single phase 220-240V- 50Hz | Three phase 380-415V- 50Hz | Length(mm) | Weight(kg) | ||||
| L1 | L(s) | L(T) | G(S) | G(T) | |||
| 4STM10/4 | 4ST10/4 | 1 1/4″ / 1 1/2″ / 2″ | 398 | 723 | 708 | 11 | 11 |
| 4STM10/6 | 4ST10/6 | 1 1/4″ / 1 1/2″ / 2″ | 472 | 819 | 799 | 13 | 12 |
| 4STM10/8 | 4ST10/8 | 1 1/4″ / 1 1/2″ / 2″ | 548 | 935 | 895 | 16 | 14 |
| 4STM10/10 | 4ST10/10 | 1 1/4″ / 1 1/2″ / 2″ | 624 | 1071 | 1001 | 19 | 16 |
| 4STM10/12 | 4ST10/12 | 1 1/4″ / 1 1/2″ / 2″ | 700 | 1236 | 1137 | 24 | 19 |
| 4STM10/14 | 4ST10/14 | 1 1/4″ / 1 1/2″ / 2″ | 776 | 1312 | 1213 | 24 | 20 |
| – | 4ST10/17 | 1 1/4″ / 1 1/2″ / 2″ | 890 | – | 1367 | – | 23 |
| – | 4ST10/21 | 1 1/4″ / 1 1/2″ / 2″ | 1074 | – | 1625 | – | 27 |
| – | 4ST10/25 | 1 1/4″ / 1 1/2″ / 2″ | 1226 | – | 1847 | – | 31 |
| – | 4ST10/28 | 1 1/4″ / 1 1/2″ / 2″ | 1340 | – | 1961 | – | 32 |
| – | 4ST10/32 | 1 1/4″ / 1 1/2″ / 2″ | 1492 | – | 2203 | – | 37 |
| – | 4ST10/36 | 1 1/4″ / 1 1/2″ / 2″ | 1644 | – | 2355 | – | 39 |
