BC Series Submersible Sewage Cutter Pump

BC Series Submersible Sewage Cutter Pump
  1. This series of products are equipped with a high-rigidity and high-efficiency cutting blade and designed with a cutting disc at the bottom of the impeller. It has a powerful shearing function for strip foreign object or non-metallic object, which can cut off those object and discharge smoothly and preventing blockage.
  2. Cable base and core wire are treated with Epoxy Resin to effectively prevent moisture from penetrating the motor from the cable seam.
  3. Design with an air discharge hole at the volute casing is to prevent airlock to ensure the stability of the drainage system.
  4. Equipped with a high-quality dual SIC mechanical seal.
  5. B(130°C) insulation with Ip68 housing protection.
  6. Auto-cut function to prevent the motor from overheat.
  1. Building a wastewater treatment system.
  2. Piggery excrement, animal & poultry farm.
  3. School, hospital, community wastewater treatment system.
  4. Food, paper, mining, textile, leather industry wastewater treatment system.
  5. Wastewater lift station, municipal wastewater treatment plant.
  6. For this series pump, there may be a blockage occur if the mince knife set encounters excessive solid impurities, please assess the impurity content before using. This BC series pump does not apply to the guide rail system.

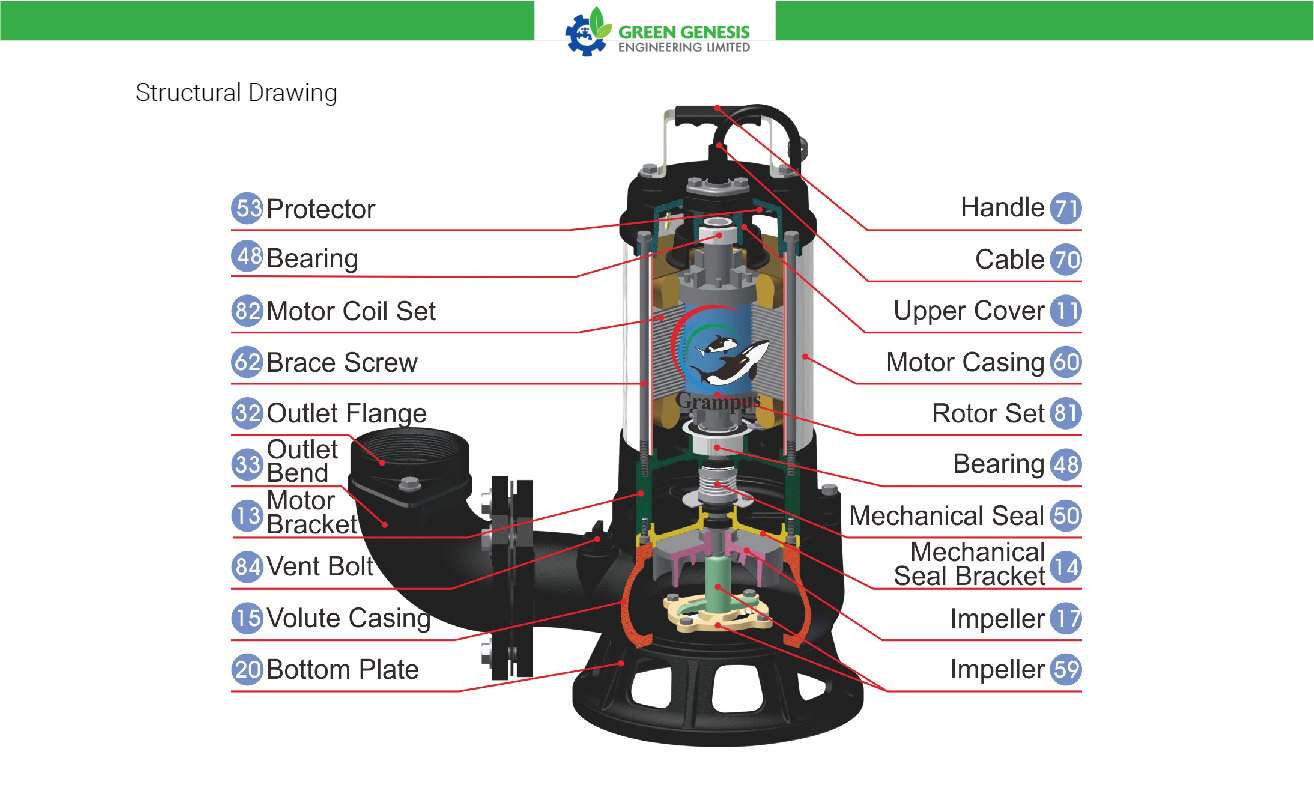

Structural Drawing of Grampus Submersible Sewage Cutter Pump

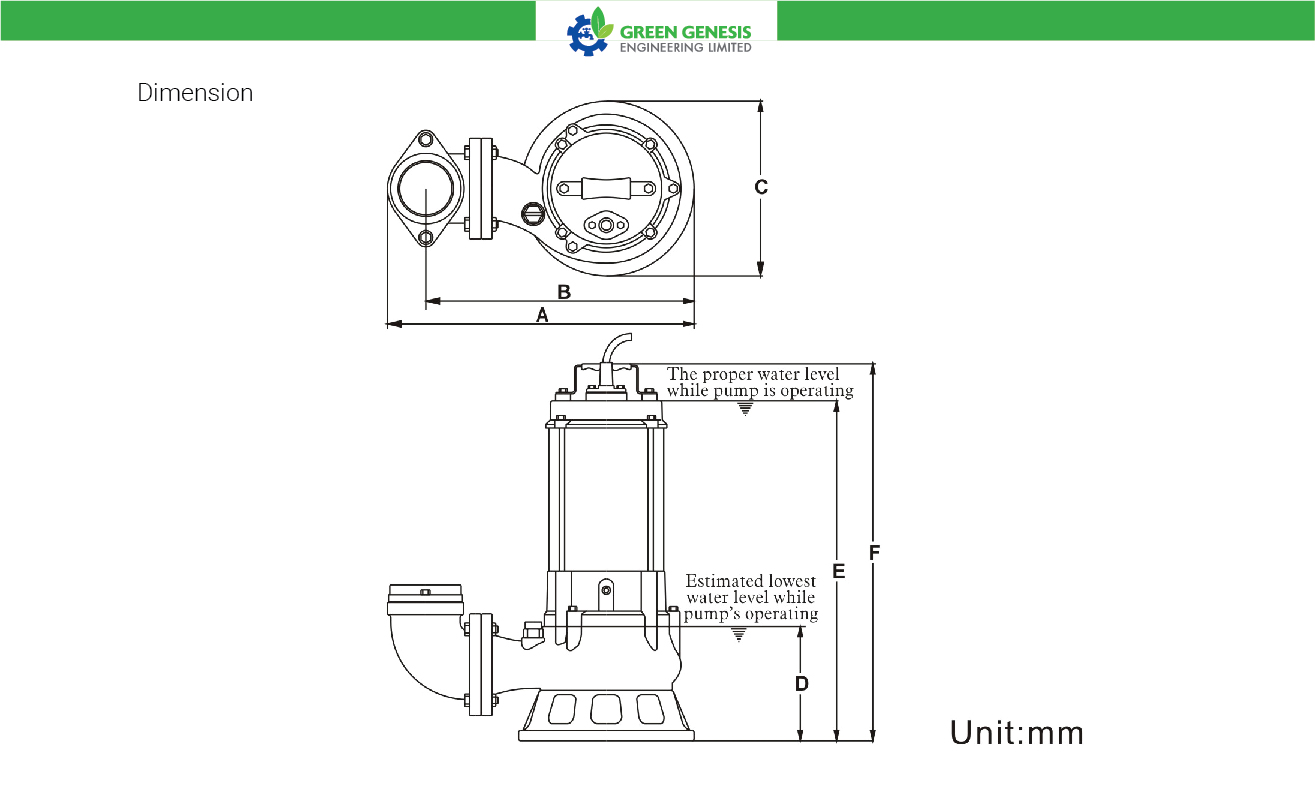

Dimension of of Grampus Submersible Sewage Cutter Pump

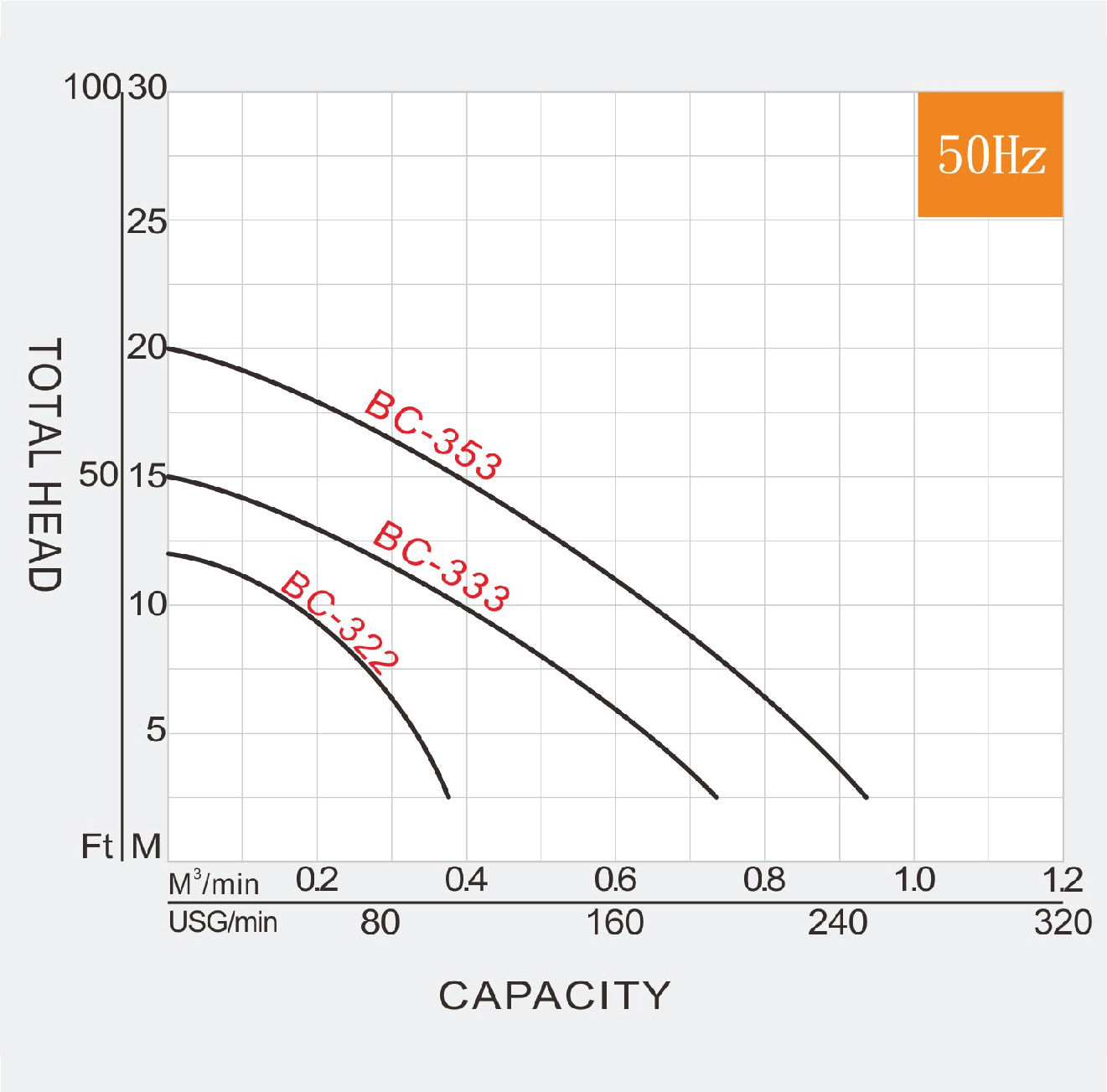

Performance Curve

Grampus Submersible Sewage Cutter Pump

Type Frequency Phase Power Discharge Pole/Rotation Std.Head Std.Flow Max.Head Max.Flow MA BC Weight
HZ PH HP KW Inch mm P/rpm M M3/Min M M3/Min KG
BC-322 50 2 1.5 2" 50 2P / 2850 8 0.25 12 0.4 34
BC-33 50 3 2.2 3" 80 2P / 2850 8 0.5 15 0.8 41
BC-353 50 5 3.7 3" 80 2P / 2850 13 0.5 20 1 45
