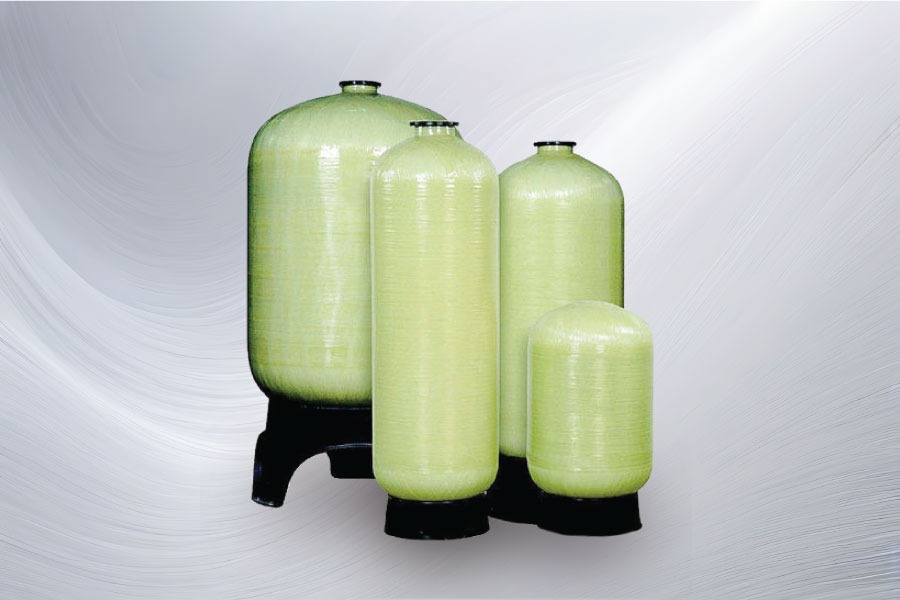

FRP VESSEL FOR WATER TREATMENT PLANT
Specifications
- Shell Layer: Fiber Glass
- MAX. Test Pressure: 150 psi
- MAX. Working Pressure: 100 psi
- Temperature Range: 1-49° c
- MAX. Vacuum: 5″ Hg(127mm Hg)
- Minimum burst at 600 psi
- Tested to 250,000 cycles without leakage
Quality Assurance
- Unique serial no to each vessel for tracking the records
- Hydrotest @ 1.5 times working pressure
- Smooth external glossy finish
- UV and scratch-resistant external Epoxy paint.
Key Points of our FRP Vessel
- High Strength and durable FRP shell
- Polyurethane outermost coating provides extra protection to the environment and a good appearance.
- Quick access to membranes and eliminates the use of tools
- Corrosion resistant
- Light in weight
- High impact strength
- Superior outlook
- Easy to handle & install
Brand
- Pentec
Green Genesis Engineering Limited can be your best option and reliable source of FRP Vessel suppliers in Bangladesh. We have different brands such as Gfiber, Top Klean, Easy Pure, Heron, and a wide range of vessel sizes. We can also able to meet the size and brand requirements as per customer demand.
Our FRP Vessels for Water Treatment Plant have been the industry standard for quality and performance for a long time. Our FRP Vessel for Water Treatment Plant Features a one-piece, seamless high-density polyethylene liner and an encapsulated, leak-free engineered polymer inlet, Green Genesis Engineering Vessels are designed to provide you with years of worry-free performance.
Our FRP vessels for Water Treatment Plant are sourced from Top ranking manufacturers and all are made from high-performance composite material. Tested for over 2,50,000 cycles, they prove strength to withstand pressures as high as 10 kg/cm2 without any structural damage.
Being resistant to most chemicals, our sources FRP vessels for Water Treatment Plant can be used practically for any Water Treatment or Waste Water Treatment application. Our wide range of FRP vessels is known for its features such as Economical Price, Durability, and Efficiency. Offered in different dimensions, we also customize these vessels as per the requirement of our clients
| Model | Vessel Size | Capability | Opening | ||
|---|---|---|---|---|---|
| inch | mm | Liters | Top | Bottom | |
| 610 | 6×10 | 155×260 | 3.1 | 2.5″-NPSM | / |
| 613 | 6×13 | 155×335 | 4.6 | 2.5″-NPSM | / |
| 618 | 6×18 | 155×460 | 6.6 | 2.5″-NPSM | / |
| 629 | 6×29 | 155×740 | 11.1 | 2.5″-NPSM | / |
| 635 | 6×35 | 155×890 | 13.7 | 2.5″-NPSM | / |
| 813 | 8×13 | 205×335 | 7.7 | 2.5″-NPSM | / |
| 817 | 8×17 | 205×438 | 10.9 | 2.5″-NPSM | / |
| 835 | 8×35 | 205×890 | 25 | 2.5″-NPSM | / |
| 844 | 8×44 | 205×1130 | 32.1 | 2.5″-NPSM | / |
| 1035 | 10×35 | 255×905 | 38.4 | 2.5″-NPSM | / |
| 1044 | 10×44 | 255×1130 | 49.5 | 2.5″-NPSM | / |
| 1054 | 10×54 | 255×1380 | 63.3 | 2.5″-NPSM | / |
| 1248 | 12×48 | 300×1225 | 78.9 | 2.5″-NPSM | / |
| 1252 | 12×52 | 300×1340 | 85.8 | 2.5″-NPSM | / |
| 1265 | 12×65 | 300×1650 | 105.3 | 2.5″-NPSM | / |
| 1354 | 13×54 | 335×1398 | 104.5 | 2.5″-NPSM | / |
| 1465 | 14×65 | 355×1650 | 145.1 | 2.5″-NPSM | / |
| 1665/2.5″-NPSM | 16×65 | 400×1670 | 183 | 2.5″-NPSM | / |
| 1665/4″ | 16×65 | 400×1670 | 183 | 2.5″-NPSM | / |
| 1865/4″ | 18×65 | 450×1670 | 253 | 4″-8UN | / |
| 2169/4″ | 21×69 | 530×1750 | 316 | 4″-8UN | / |
| 2169/4″-4″ | 21×69 | 530×1590 | 316 | 4″-8UN | 4″-8UN |
| 2472/4″ | 24×72 | 600×1850 | 415 | 4″-8UN | / |
| 2472/4″-4″ | 24×72 | 600×1850 | 415 | 4″-8UN | 4″-8UN |
| 2487/4″-4″ | 24×87 | 600×2200 | 510 | 4″-8UN | 4″-8UN |
| 3072/4″ | 30×72 | 750×1850 | 640 | 4″-8UN | / |
| 3072/4″-4″ | 30×72 | 750×1850 | 640 | 4″-8UN | 4″-8UN |
| 3087/4″-4″ | 30×87 | 750×2200 | 782 | 4″-8UN | 4″-8UN |
| 3672/4″-4″ | 36×72 | 900×1850 | 850 | 4″-8UN | 4″-8UN |
| 3694/6″F-6″F | 36×94 | 900×2400 | 1205 | 6″-flange | 6″-flange |
| 4072/4″ | 40×72 | 1000×1850 | 1050 | 4″-8UN | / |
| 4072/4″-4″ | 40×72 | 1000×1850 | 1050 | 4″-8UN | 4″-8UN |
| 4272/6″F-6″F | 42×72 | 1070×1850 | 1100 | 6″-flange | 6″-flange |
| 4094/6″F-6″F | 40×94 | 1000×2400 | 1370 | 6″-flange | 6″-flange |
| 4294/6″F-6″F | 42×94 | 1070×2400 | 1465 | 6″-flange | 6″-flange |
| 4872/6″F-6″F | 48×72 | 1200×1850 | 1308 | 6″-flange | 6″-flange |
| 4894/6″F-6″F | 48×94 | 1200×2400 | 1909 | 6″-flange | 6″-flange |
| 6094/6″F-6″F | 60×94 | 1500×2400 | 2688 | 6″-flange | 6″-flange |
| 6383/6″F-6″F | 63×83 | 1600×2100 | 2580 | 6″-flange | 6″-flange |
| 6394/6″F-6″F | 63×94 | 1600×2400 | 3150 | 6″-flange | 6″-flange |
| 7294/6″F-6″F | 72×94 | 1800×2400 | 3950 | 6″-flange | 6″-flange |
-
- FRP Vessel for Water Treatment
-
- FRP Vessel and Tank
-
- FRP Vessel for Water Treatment
-
- FRP Vessel for Water Treatment
-
- FRP Vessel for Water Treatment
-
- FRP Vessel for Water Treatment
-
- FRP Tank
-
- FRP Vessel
-
- FRP Pressure Vessel for Water Treatment
-
- FRP Vessel Drawing
-
- FRP Vessel for Water Treatment
Happy Clients Say
Frequently Ask Question. (F.A.Q.)
Yes, FRP vessels are safe as long as they are properly designed, manufactured, installed, and maintained.
FRP vessels require low maintenance. However, it’s recommended to inspect them regularly for any damages or signs of corrosion.
FRP vessels can be repaired using the same material as the original vessel. The damaged area should be sanded and cleaned before applying the repair material.
