BF Series Grampus Submersible Pump

BF Series Grampus Submersible Pump
Features
  1. High-efficiency stainless steel impeller with semi-open and double-wing design, it can prevent blockage and the impeller will not be stuck in the volute casing. This product will have a better flow and head because of the special runner design.
  2. Cable base and core wire are dealt with Epoxy Resin to avoid the moisture into the motor.
  3. Equipped with vent bolt at volute casing is to avoid air lock ensuring the pump operation steady.
  4. Equipped with a high-quality dual SIC mechanical seal.
  5. Motor is B class(130°C) insulation, enclosure IEC IP68.
  6. Auto-cut prevents the motor from overheat.
  7. This type can be equipped with a lift bracket.
Application
  1. Wastewater lift station, municipal wastewater treatment plant.
  2. Building a wastewater treatment system.
  3. Piggery excrement, animal & poultry farm.
  4. School, hospital, community wastewater treatment system.
  5. Food, paper, mining, textile, leather industry wastewater treatment system.

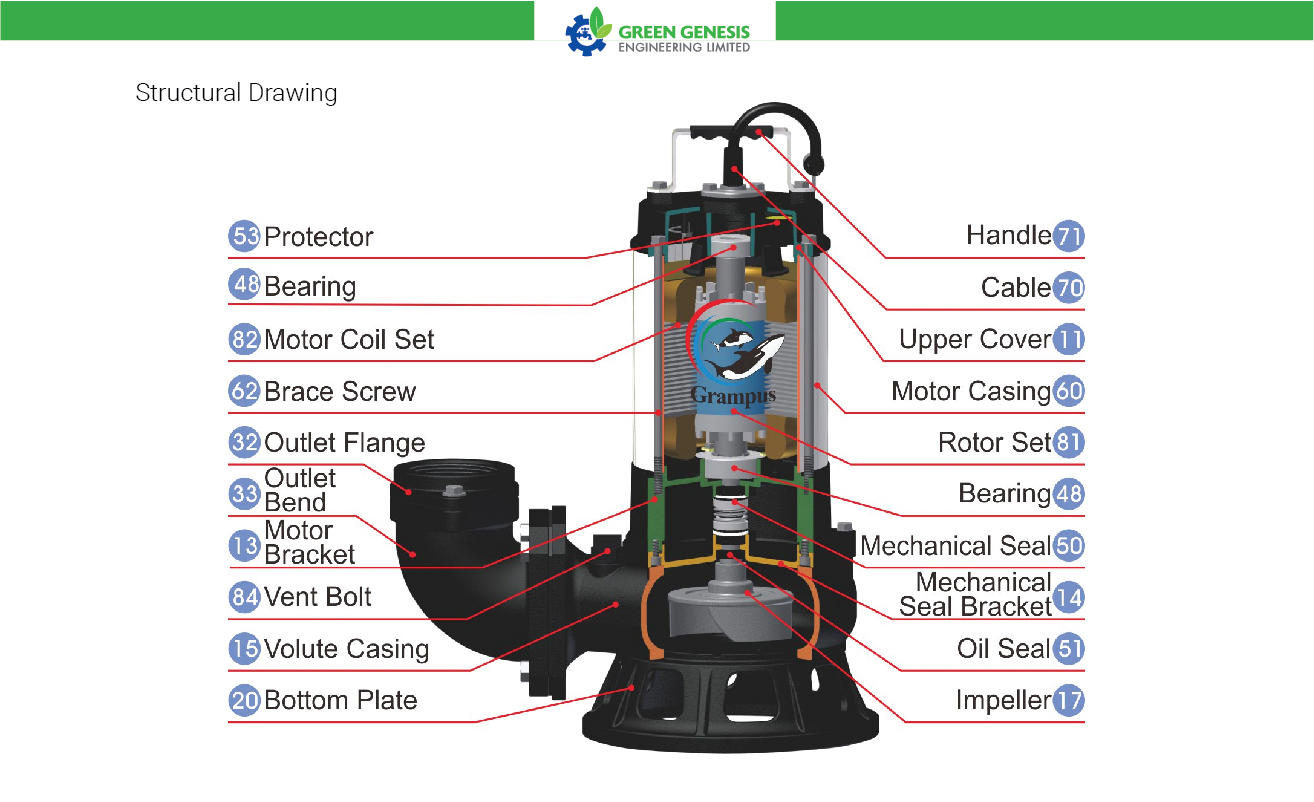

Structural Drawing of BF Grampus Submersible Pump

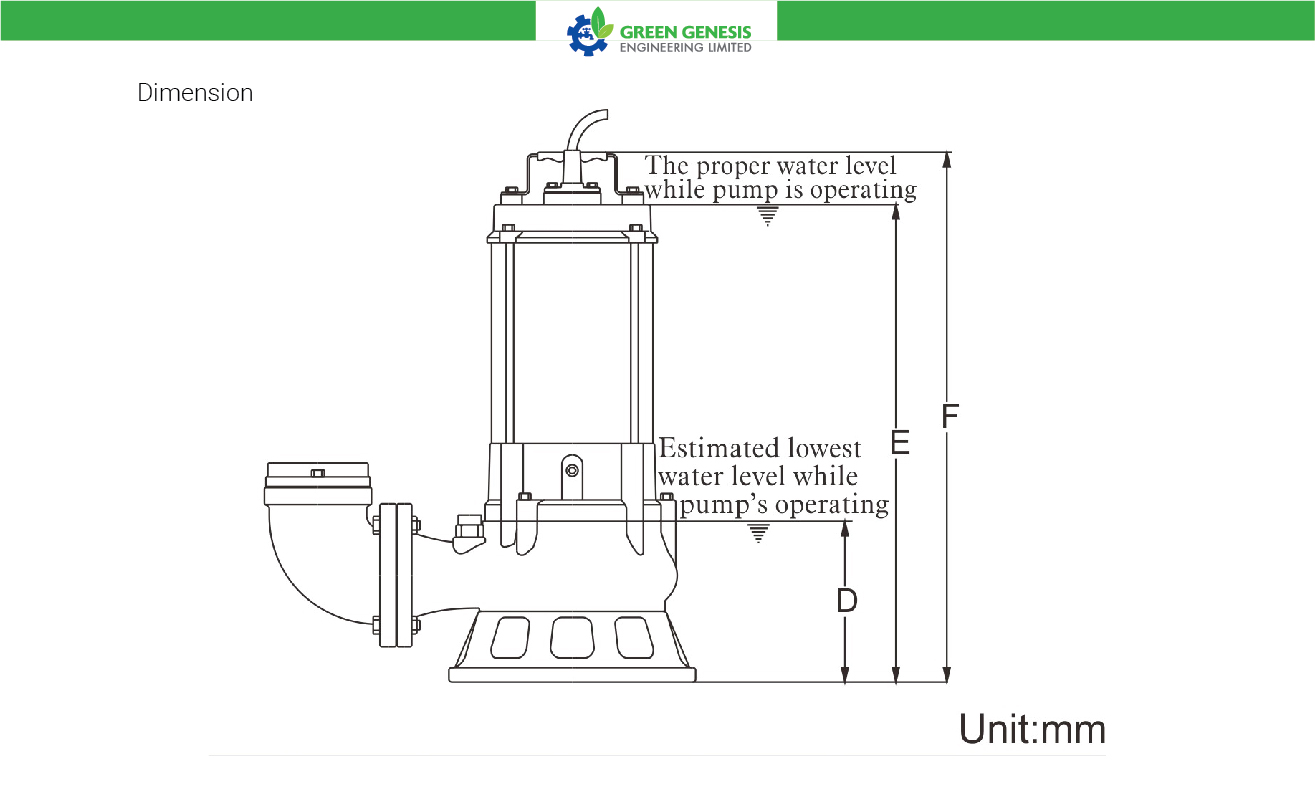

Dimension of BF Grampus Submersible Pump

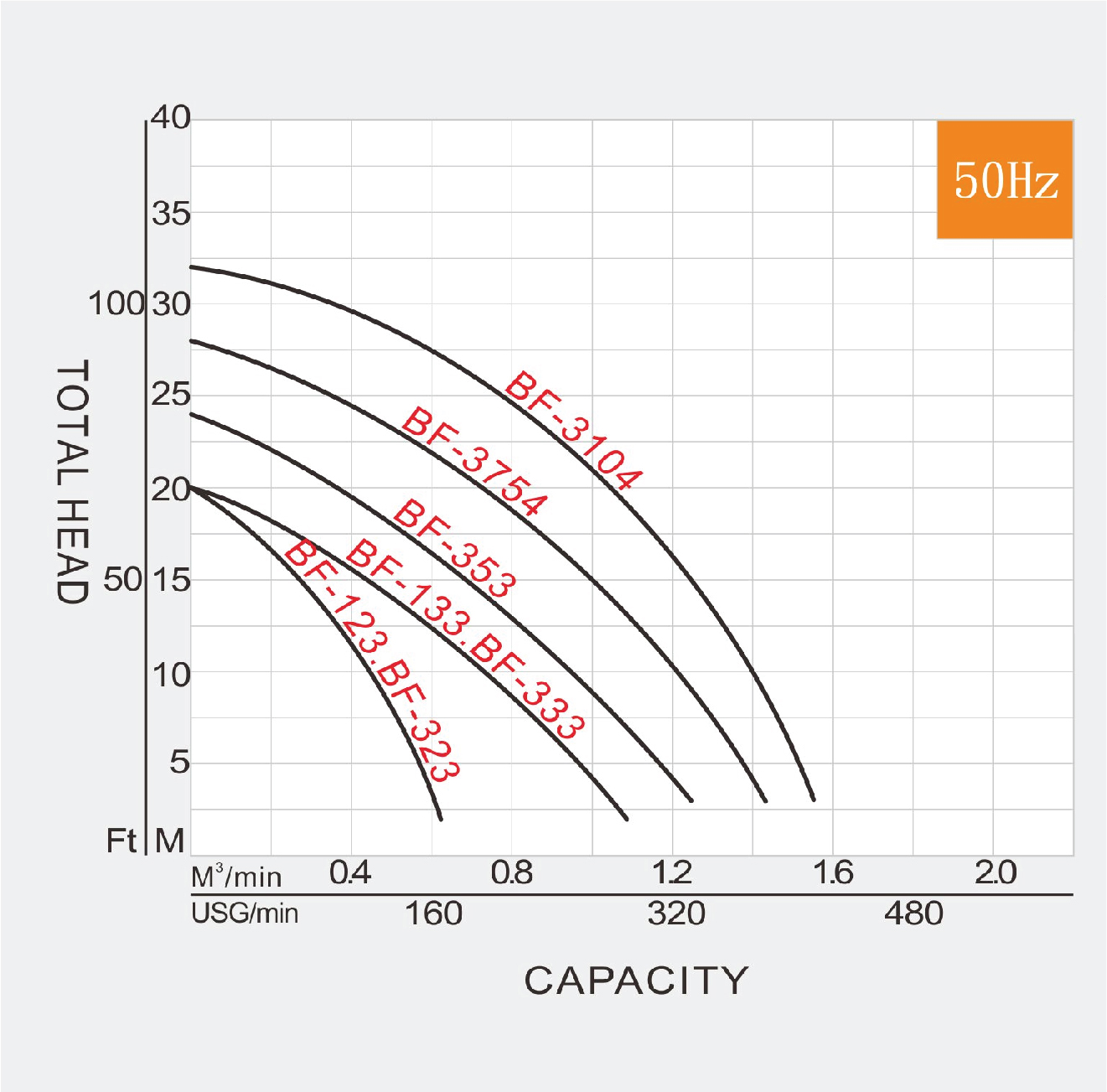

Performance Curve

Performance curve of BF Grampus Submersible Pump

Type Frequency Phase Power Discharge Pole/Rotation Std.Head Std.Flow Max.Head Max.Flow MA BF Weight TOS-BF Weigh Solid Passage
HZ PH HP KW Inch mm P/rpm M M3/Min M M3/Min KG KG mm
BF-123 50 2 1.5 3" 80 2P / 2850 8 0.5 20 0.65 35 55 20
BF-323 50 2 1.5 3" 80 2P / 2850 8 0.5 20 0.65 34 54 20
BF-133 50 3 2.2 3" 80 2P / 2850 14 0.5 20 1.15 45 65 35
BF-333 50 3 2.2 3" 80 2P / 2850 14 0.5 20 1.15 41 61 35
BF-353 50 5 3.7 3" 80 2P / 2850 18 0.5 24 1.35 45 65 35
BF-3754 50 5.5 4" 100 2P / 2850 15 1.0 28 1.50 55 75 35
BF-3104 50 10 7.5 4" 100 2P / 2850 21 1.0 32 1.60 60 80 35
