Features
-
High-efficiency stainless steel impeller with semi-open and double-wing design, it can prevent blockage and the impeller will not be stuck in the volute casing. This product will have a better flow and head because of the special runner design.
- Cable base and core wire are dealt with Epoxy Resin to avoid the moisture into the motor.
- Equipped with vent bolt at volute casing is to avoid air lock ensuring the pump operation steady.
- Equipped with a high-quality dual SIC mechanical seal.
- Motor is B class(130°C) insulation, enclosure IEC IP68.
- Auto-cut prevents the motor from overheat.
- Thick EPOXY coating is better than common painting in corrosion-resistance and rust-resistance.
- This type can be equipped with a lift bracket.
Application
- Wastewater lift station, municipal wastewater treatment plant.
- Building a wastewater treatment system.
- Piggery excrement, animal & poultry farm.
- School, hospital, community wastewater treatment system.
- Food, paper, mining, textile, leather industry wastewater treatment system.

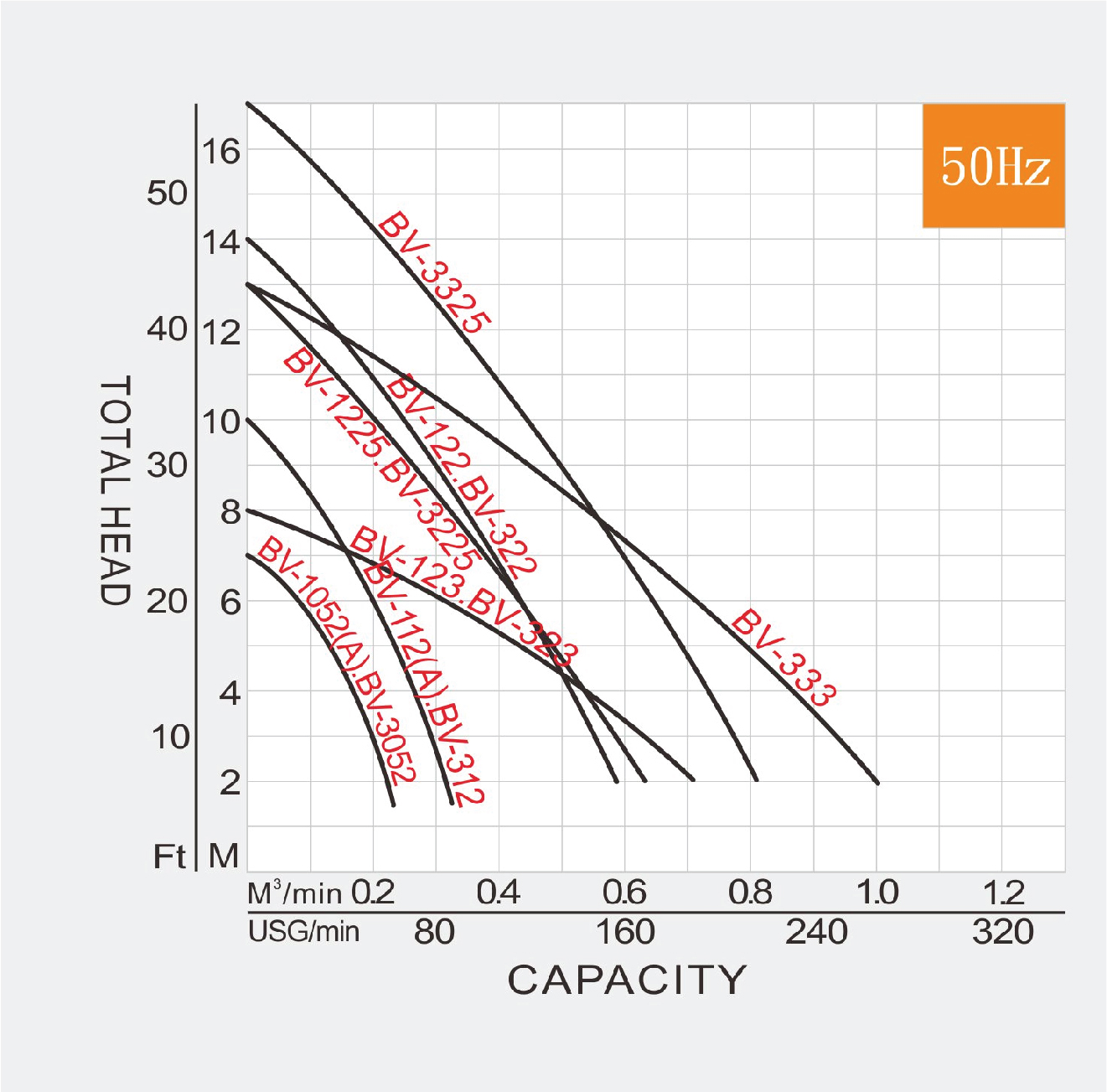

Performance Curve
| Type | Frequency | Phase | Power | Discharge | Pole/Rotation | Std.Head | Std.Flow | Max.Head | Max.Flow MA | BF Weight | TOS-BF Weigh | Solid Passage | ||
| HZ | PH | HP | KW | Inch | mm | P/rpm | M | M3/Min | M | M3/Min | KG | KG | mm | |
| BV-1052(A) | 50 | 1φ | ½ | 0.4 | 2" | 50 | 2P / 2850 | 4.5 | 0.15 | 7 | 0.25 | 1.65 | 2.65 | 50 |
| BV-3052 | 50 | 3φ | ½ | 0.4 | 2" | 50 | 2P / 2850 | 4.5 | 0.15 | 7 | 0.25 | 15 | 25 | 50 |
| BV-112(A) | 50 | 1φ | 1 | 0.75 | 2" | 50 | 2P / 2850 | 6 | 0.2 | 10 | 0.35 | 1.85 | 2.85 | 50 |
| BV-312 | 50 | 3φ | 1 | 0.75 | 2" | 50 | 2P / 2850 | 6 | 0.2 | 10 | 0.35 | 1.75 | 2.75 | 50 |
| BV-122 | 50 | 1φ | 2 | 1.5 | 2" | 50 | 2P / 2850 | 9 | 0.3 | 14 | 0.65 | 35 | 55 | 50 |
| BV-322 | 50 | 3φ | 2 | 1.5 | 2" | 50 | 2P / 2850 | 9 | 0.3 | 14 | 0.65 | 31.5 | 51.5 | 50 |
| BV-1225 | 50 | 1φ | 2 | 1.5 | 2.5" | 65 | 2P / 2850 | 8.4 | 0.3 | 13 | 0.72 | 36 | 56 | 65 |
| BV-3225 | 50 | 3φ | 2 | 1.5 | 2.5" | 65 | 2P / 2850 | 8.4 | 0.3 | 13 | 0.72 | 32 | 52 | 65 |
| BV-123 | 50 | 1φ | 2 | 1.5 | 3" | 80 | 2P / 2850 | 5.3 | 0.4 | 8 | 0.84 | 38 | 58 | 80 |
| BV-323 | 50 | 3φ | 2 | 1.5 | 3" | 80 | 2P / 2850 | 5.3 | 0.4 | 8 | 0.84 | 34 | 54 | 80 |
| BV-3325 | 50 | 3φ | 3 | 2.2 | 2.5" | 65 | 2P / 2850 | 12.6 | 0.3 | 17 | 0.87 | 36 | 56 | 65 |
| BV-333 | 50 | 3φ | 3 | 2.2 | 3" | 80 | 2P / 2850 | 9.5 | 0.4 | 13 | 1.10 | 38 | 58 | 80 |
