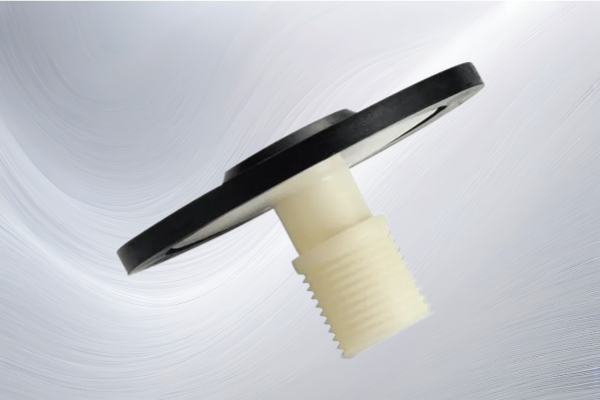

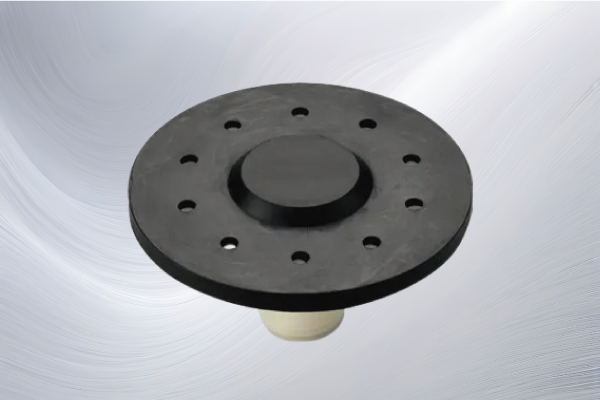

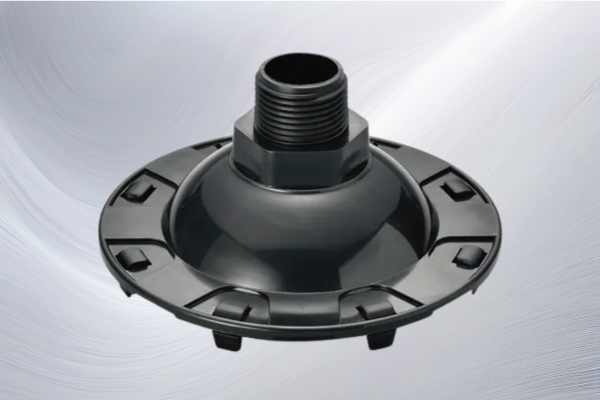

Coarse Bubble Disc Diffuser

Coarse Bubble Disc Diffuser
  • Pipe Caliber for connection
  • Hard enduring diffuser can decrease pressure loss
  • Hard enduring diffuser with excellent corrosion resistance
  • Full-close against backflow

Pipeline Caliber for Connection: PT1B thread.
Limits pressure losses: The flexible valve enables precise adjustment of the pressure discharge force with the use of an air volume gauge, leading to fewer pressure losses.
Excellent corrosion resistance, constructed with a state-of-the-art ABS compound, boasting outstanding temperature resistance.

Long-lasting (three times the life-span of ordinary rubber).

  • Oil and corrosion resistant valve.
  • corrosion resistant valve.
  • Fully-closed against backflow.

Should the pump be stopped, a specially constructed valve is designated to provide a complete seal between the cut-out air flow from underneath and the water pressure above. This naturally prevents any undesired backflow of water into the apparatus.

  • Air flow rate: 100- 450 L/min
  • Diameter: 6” (144 mm)
  • Connection size: PT1B thread
  • Industrial and Municipal Wastewater Treatment
  • Gray Water Treatment
  • Sludge Stabilization
  • MOC-Body: ABS Resin
  • Film section: The Plastic Synthetic Resin
