DPL Series Dynamic Pump
Description
- Wide range for outlet air volume and pressure
- Stable outlet air volume and pressure change.
- Clear outlet air. No oil polluted. Dual oil cases separated from air cell.
- Rigid and solid construction. Easy for maintenance.
- Bearings lubricated by gear oil. Good heat radiation. Long working hours.
Specifications
Roots Blower Specification：
| Bore | 1.5"~16"(40A~400A) |
| Capacity | 0.5~360 m3/min |
| Pressure | 0~8,000mmAq |
| Vacuum | -5,000mmAq |
Features
Longer Bearing Life
Less vibration transmitted throught the lobe results approximately 20% longer bearing life.
Lower Noise
Pressure pluses are the major noise source of blower.
Three lobes' design can efficiently reduce noise by approximately 5dB.
Lower energy consumption
Three lobes' design control backflow pressure to rotor so reduce energy consumption.
Applications
- Wastewater treatment
- Aquaculture Farm
- Particle (pneumatic or pressure) conveying
- Paper industry
- Eletroplating pool Air mixed
- Aeration Tank

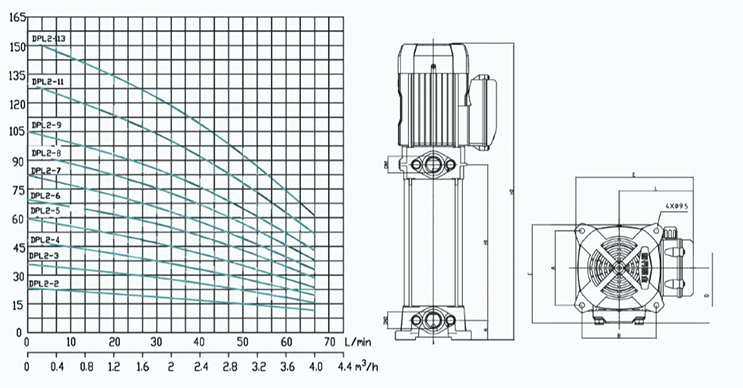

| MODEL | POWER | 1.2 m3/h | 1.6 m3/h | 2 m3/h | 2.4 m3/h | 2.8 m3/h | 3.2 m3/h | 3.6 m3/h | 4 m3/h |
| DPL2-7-1.1 | 1.1 KW, 220v, 1 Phase | 70 m | 67.5 m | 65.5 m | 57.5 m | 52.5 m | 46 m | 41 m | 33.7 m |
| DPL2-9 1.5 | 1.5 KW, 220v, 1 Phase | 93 m | 88.5 m | 84 m | 77 m | 68.5 m | 60 m | 52.5 m | 43 m |
| DPL2-11-1.8 | 1.8 KW, 220v, 1 Phase | 114 m | 107.5 m | 102 m | 92 m | 82.5 m | 72 m | 63 m | 52.5 m |
