Technical Data
Pump:
- Qmax:2.8(m3/h)
- Capacity from 1 to 2(m3/h)
- Total Head from 116 to 22(m)
Motor:
- Power: 0.25 to 1.1kw(Single Phase)
- Insulation class: B
- Protection grad: IP68

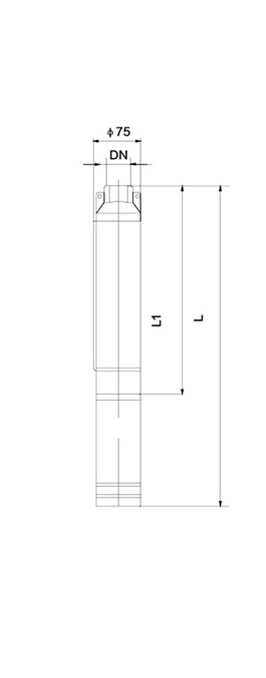

- Maximum diameter: Φ75mm
- Highest temperature of liquid: 35o C

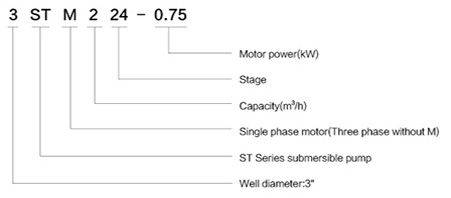

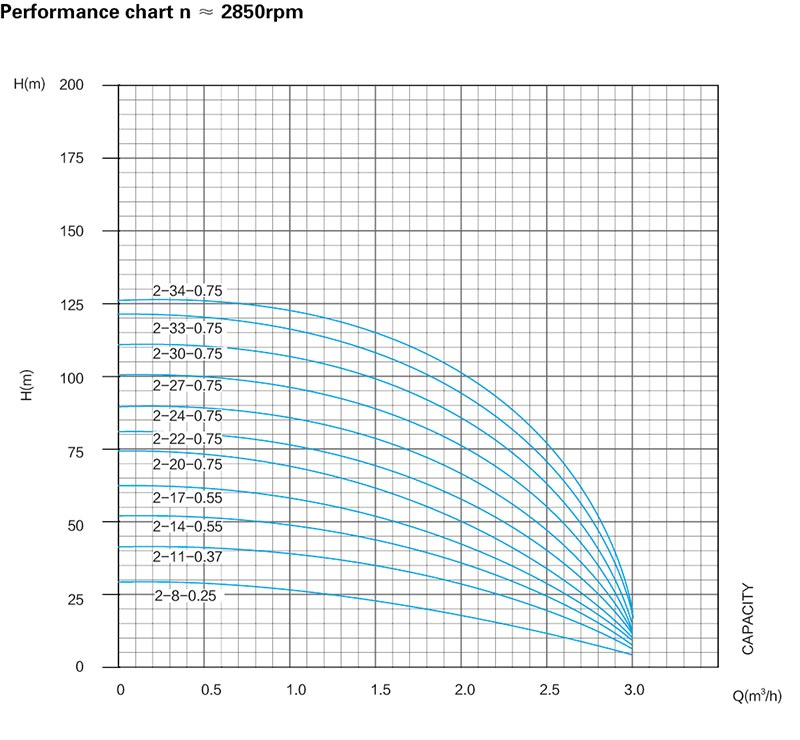

| MODEL | POWER | Capacity and Head | |||||||||
| Three phase 380-415v-50Hz | KW | HP | m3/h | 0 | 0.5 | 1 | 1.5 | 1.8 | 2 | 2.5 | 3 |
| I/min | 0 | 8 | 17 | 25 | 30 | 33 | 42 | 50 | |||
| 3STM2-8-0.25 | 0.25 | 0.33 | Head (m) | 30 | 28 | 27 | 26 | 24 | 22 | 16 | 4 |
| 3STM2-11-0.37 | 0.37 | 0.5 | 41 | 39 | 37 | 36 | 33 | 31 | 22 | 6 | |
| 3STM2-14-0.55 | 0.55 | 0.75 | 52 | 49 | 48 | 46 | 42 | 39 | 27 | 7 | |
| 3STM2-17-0.55 | 0.55 | 0.75 | 63 | 60 | 58 | 56 | 51 | 48 | 33 | 9 | |
| 3STM2-20-0.75 | 0.75 | 1 | 74 | 70 | 68 | 64 | 60 | 55 | 39 | 10 | |
| 3STM2-22-0.75 | 0.75 | 1 | 81 | 77 | 75 | 70 | 66 | 60 | 43 | 11 | |
| 3STM2-24-0.75 | 0.75 | 1 | 89 | 84 | 82 | 77 | 70 | 65 | 47 | 12 | |
| 3STM2-27-0.75 | 0.75 | 1 | 100 | 95 | 92 | 81 | 76 | 70 | 53 | 14 | |
| 3STM2-30-1.1 | 1.1 | 1.5 | 111 | 105 | 105 | 90 | 84 | 78 | 59 | 15 | |
| 3STM2-33-1.1 | 1.1 | 1.5 | 122 | 116 | 112 | 99 | 92 | 86 | 65 | 17 | |
| 3STM2-34-1.1 | 1.1 | 1.5 | 126 | 119 | 116 | 102 | 95 | 88 | 67 | 18 | |
