Technical Data
Pump
- Qmax: 20(m³/h)
- Capacity from 12 to 17(m³/h)
- Total head from 143 to 39(m)
Motor
- Power: 4 to 11kW (Single Phase)
- Insulation class: B
- Protection grade: IP58

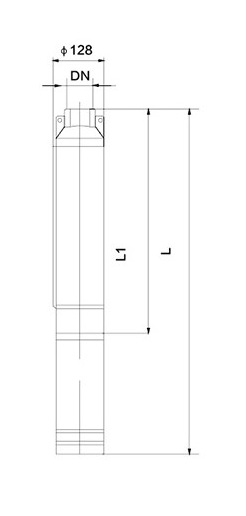

- Maximum diameter: Φ 125mm
- Height temperature of liquid: 35ºC

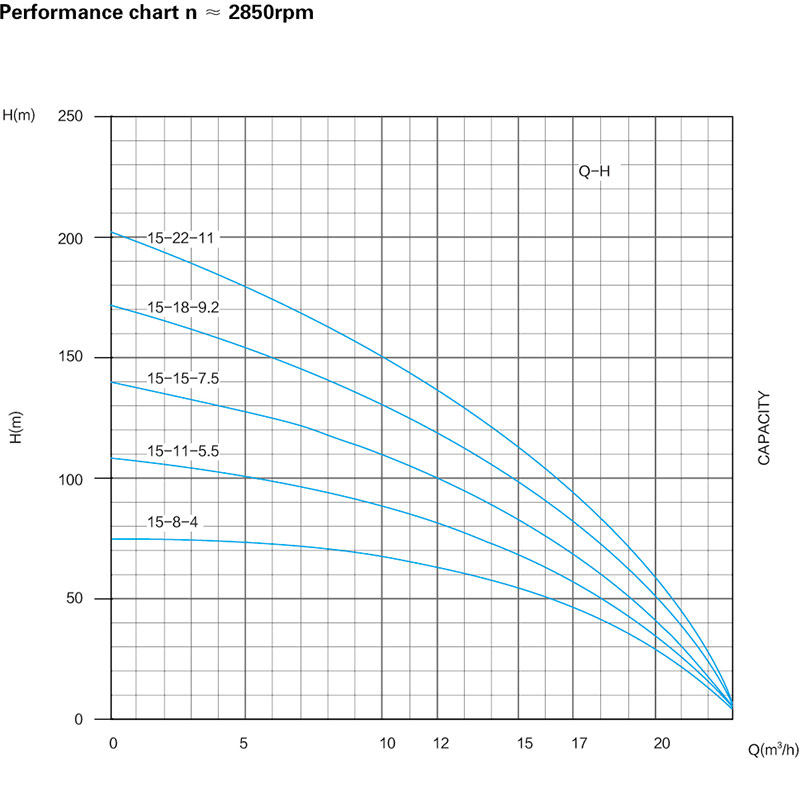

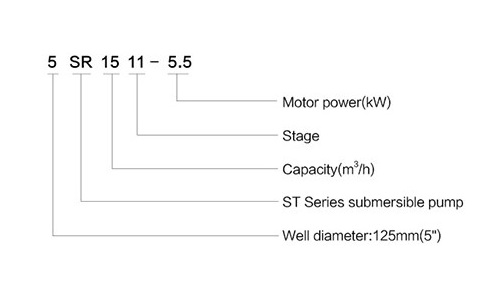

| MODEL | POWER | Capacity and Head | |||||||
| Three Phase 380-415-50 Hz | kW | HP | m3/h | 0 | 8 | 12 | 15 | 17 | 19 |
| I/min | 0 | 133 | 200 | 250 | 283 | 317 | |||
| 5SR15-8 | 4 | 5.5 | Head(m) | 73 | 65 | 55 | 45 | 39 | 31 |
| 5SR15-11 | 5.5 | 7.5 | 106 | 87 | 73 | 60 | 48 | 37 | |
| 5SR15-14 | 7.5 | 10 | 138 | 116 | 98 | 80 | 67 | 52 | |
| 5SR15-18 | 9.2 | 12.5 | 169 | 142 | 120 | 98 | 82 | 64 | |
| 5SR15-22 | 11 | 15 | 201 | 169 | 143 | 115 | 98 | 76 | |
