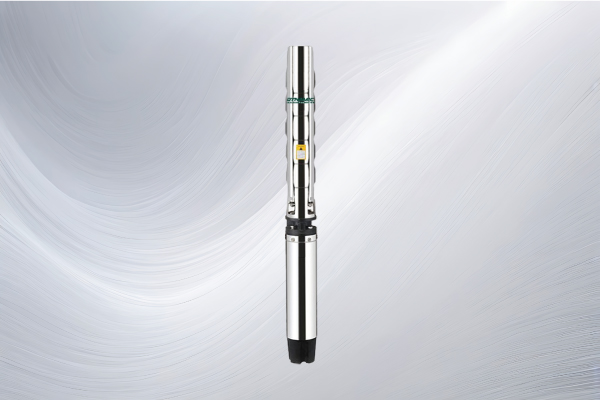

Dynamic Submersible pump 6SR45

HomeDynamic Submersible pump 6SR45

Technical Data

Applications

For water supply from wells or reservoir
For domestic use, for civil and industrial application
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35ºC
Maximum sand content:0.25%
Maximum immersion:100m.
Minimum well diameter:6"

Motor and Pump

Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Direct start(1 cable)
Star-delta start(2 cable)
Equip with start control box or digital
Auto-control box
NEMA dimension standards
Curve tolerance according to ISO 2548

Options on request

Special mechanical seal
Other voltages or frequency 60Hz

Warranty: 1 year

(according to our general sales conditions).

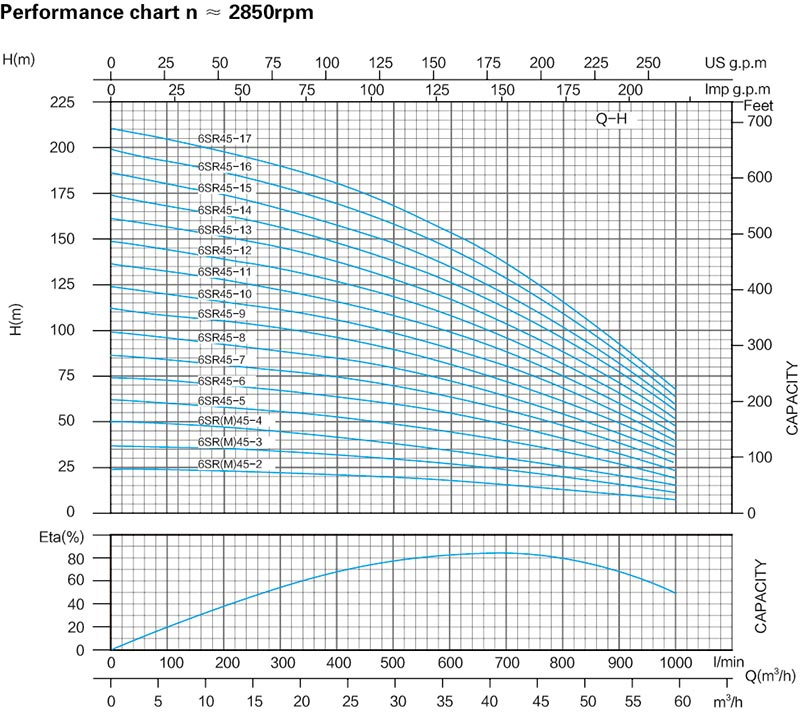

MODEL		P2		DELIVERY n~2850l/min
1~ 220V/240V	3~ 380V/415V	KW	HP	m3/h	0	6	12	19	24	30	36	42	48	54	60
1~ 220V/240V	3~ 380V/415V	KW	HP	I/min	0	100	200	300	400	500	600	700	800	900	1000
6SRM45-2	6SR45-2	3	4		25	24	23	22	21	20	18	16	14	11	8
6SRM45-3	6SR45-3	4	5.5		37	36	35	33	32	30	27	24	20	16	12
6SRM45-4	6SR45-4	5.5	7.5		50	48	46	44	42	39	36	32	27	22	16
-	6SR45-5	7.5	10		62	60	58	55	53	49	45	40	34	27	20
-	6SR45-6	9.2	12.5		74	72	70	67	63	59	54	48	41	33	24
-	6SR45-7	11	15		87	84	81	78	74	69	63	56	48	38	28
-	6SR45-8	13	17.5		99	96	93	89	84	79	72	64	54	44	32
-	6SR45-9	15	20		112	108	104	100	96	89	81	72	61	49	36
-	6SR45-10	18.5	25		124	120	116	111	105	99	90	80	68	54	40
-	6SR45-11	18.5	25		136	132	128	122	116	108	99	88	75	60	44
-	6SR45-12	22	30		149	144	139	133	126	118	108	96	82	65	48
-	6SR45-13	22	30		161	156	151	144	137	128	117	104	88	71	52
-	6SR45-14	26	35		174	168	162	155	148	138	126	112	95	76	56
-	6SR45-15	26	35		186	180	174	167	158	148	135	120	102	82	60
-	6SR45-16	30	40		198	192	186	178	169	158	144	128	109	87	64
-	6SR45-17	30	40		211	204	197	189	179	168	153	136	116	93	68
