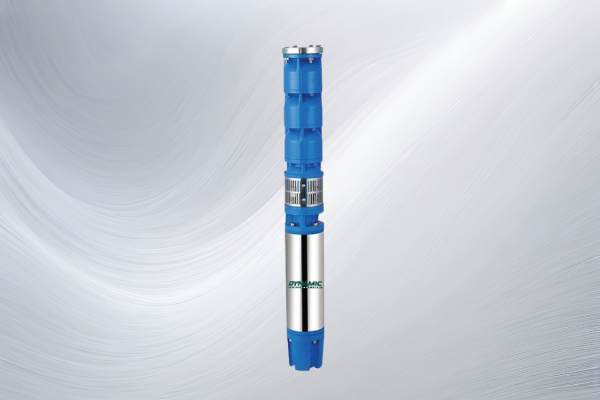

Dynamic Submersible pump S150B

HomeDynamic Submersible pump S150B

Technical Data

Applications

For water supply from wells or reservoir
For domestic use, for civil and industrial application
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +50ºC
Maximum sand content:0.5%
Maximum immersion:100m.
Minimum well diameter:6"

Motor and Pump

Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Direct start(1 cable)
Star-delta start(2 cable)
Equip with start control box or digital
Auto-control box

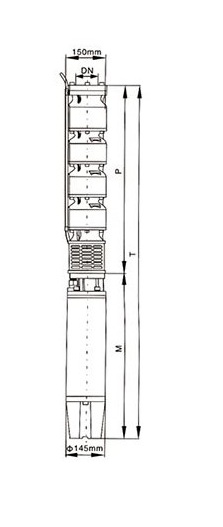

NEMA dimension standards
Curve tolerance according to ISO 9906

Options on request

Special mechanical seal
Other voltages or frequency 60Hz

Warranty: 1 year

(according to our general sales conditions).

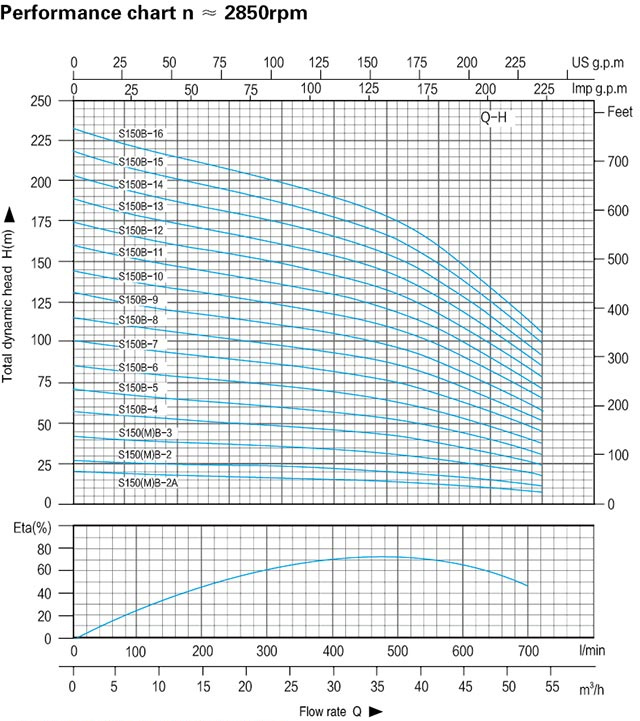

MODEL		POWER		Capacity and Head
220V/240V-50Hz/2850rpm	380V/415V-50Hz/2850rpm	KW	HP	m3/h	0	6	12	18	24	30	36	42	48	54
220V/240V-50Hz/2850rpm	380V/415V-50Hz/2850rpm	KW	HP	I/min	0	100	200	300	400	500	600	700	800	900
S150MB-2A	S150MB-2A	3	4	Head (m)	22	21	21	20	19	18	17	14	12	10
S150MB-2	S150MB-2	4	5.5		29	28	27	26	29	24	23	20	17	14
S150MB-3	S150MB-3	5.5	7.5		44	42	40	39	39	37	34	30	26	20
-	S150MB-4	7.5	10		59	56	54	52	48	50	45	40	34	27
-	S150MB-5	9.2	12.5		73	70	68	65	58	63	56	50	43	34
-	S150MB-6	11	15		88	84	81	78	68	75	68	60	51	40
-	S150MB-7	13	17.5		103	98	95	91	77	88	79	70	60	47
-	S150MB-8	15	20		118	112	108	104	87	100	90	81	88	54
-	S150MB-9	18.5	25		132	126	122	117	96	113	101	91	77	61
-	S150MB-10	18.5	25		147	140	135	130	106	125	113	101	85	68
-	S150MB-11	22	30		162	154	149	143	116	138	124	111	94	74
-	S150MB-12	22	30		176	168	162	156	135	150	135	121	102	81
-	S150MB-13	26	35		191	182	176	169	154	163	146	131	111	88
-	S150MB-14	26	35		206	196	189	182	174	175	158	141	119	95
-	S150MB-15	30	40		220	210	203	195	193	188	169	151	128	101
-	S150MB-16	30	40		235	224	216	208	193	200	180	161	136	108
