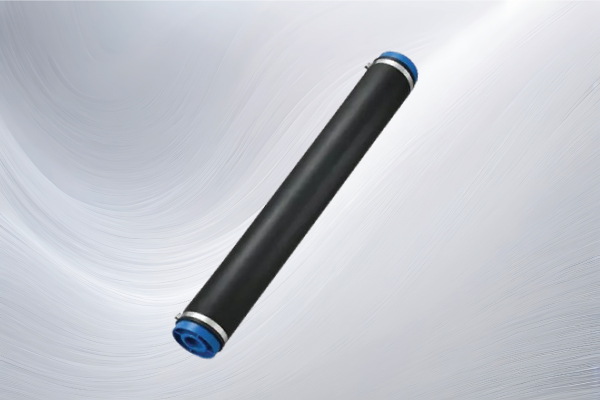

Fine Bubble Tube Diffuser (LTF-275)

Fine Bubble Tube Diffuser (LTF-275)

High oxygen transfer efficiency.
High EPDM membrane tenacity.
Low pressure loss.
Simple construction, Light weight and easy to install.
Larger surface with higher treatment function.
Wide space between filters, no blockage.
High plankton containment.
Sturdy, easily installed, low price.

Model : LTF-275

Goldentech

Features

  1. High Oxygen Transfer Efficiency
  2. High Resistance to Clogging & Corrosion
  3. Wide Airflow Range
  4. Low System Head-loss
  5. Backflow Prevention

Applications

  1. Municipal & Industrial Wastewater Treatment
  2. Gray Water Treatment
  3. Sludge Stabilization
  4. Wastewater Ozone Diffusion
  5. Aeration of Fish Ponds
Model Material Airflow Rate (L/Min) A
(mm)
B
(mm)
C
(mm)
Connection Size
LTF - 275- Ø 64 PVC Didduser Body
EPDM Membrane
SS316 Clamp Locator
80-120 275 305 64 PT- 3/4" female
LTF - 550- Ø 64 160-240 550 580 64 PT- 3/4" female
LTF - 620- Ø 64 180-270 620 650 64 PT- 3/4" female
LTF - 1000- Ø 64 290-440 1000 1030 64 PT- 3/4" female
LTF - 550- Ø 95 350-530 550 590 95 PT- 1  1/4" female
LTF - 620- Ø 95 395-595 620 660 95 PT- 1  1/4" female
LTF - 1000- Ø 95 640-970 1000 1040 95 PT- 1  1/4" female
