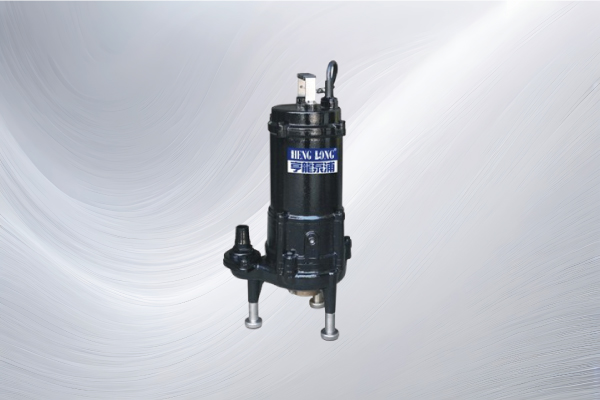

Features
- With high quality cast iron housing for the long term using.

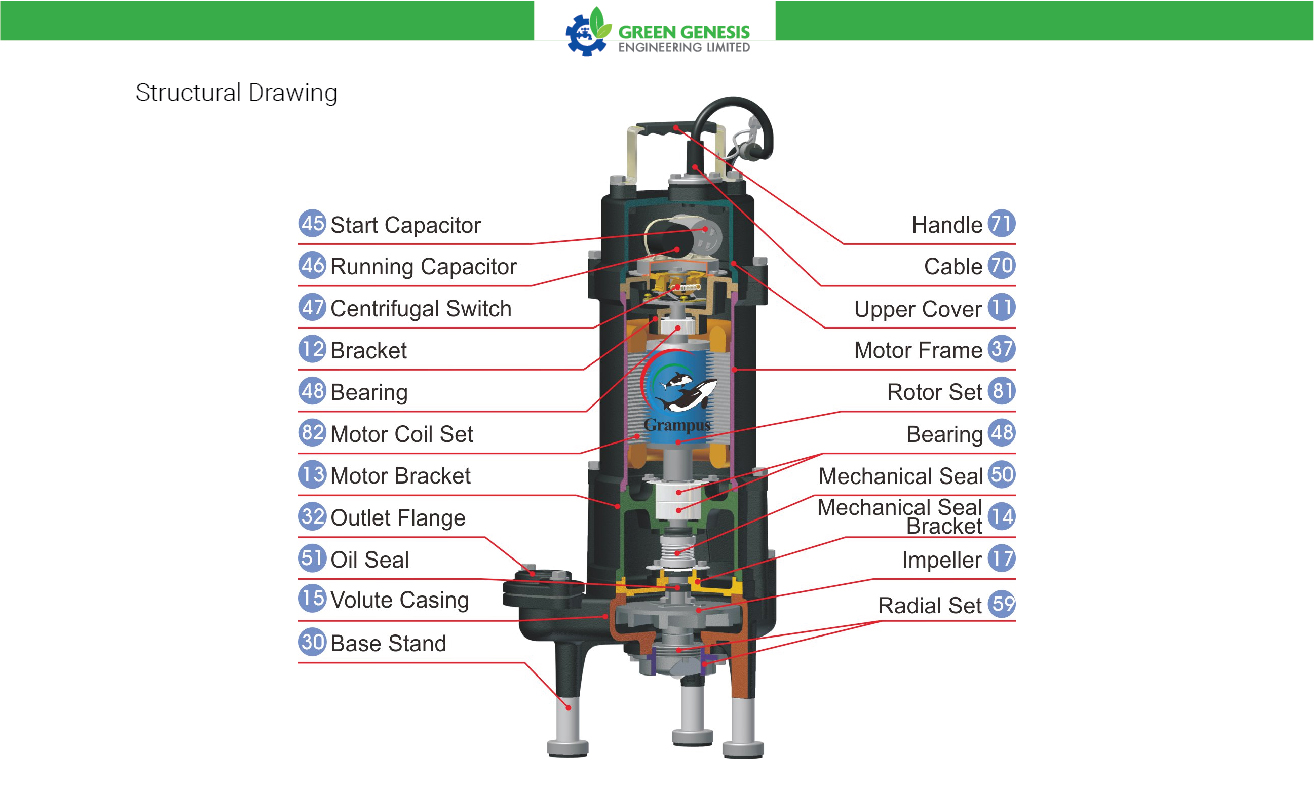

- To achieve excellent performance, we use great VCT cable with Epoxy resin base, dry motor, and dura-mechanical seals.
- This series also with heavy-duty ball bearing and protector and the insulation level is IP 68.
- The design of a centrifugal semi-open impeller which can avoid any long fiber items or other objects to block the inlet.
- Both radial cutter and ring are made from SUS-440C material in which the hardness is reached HRc 55-60°. Any high tenacity objects such as leather, textile, plastic bags, and rope are easy to be ground.
Application
- The material such as leathers, textile fiber, food, and other tenacity objects can be ground.
- General household using, drainage systems of buildings and apartments, resorts and wastewater systems.
- Commercial buildings, industrial factories, sewage water treatments.
- Wastewater systems of schools, municipal engineering sewage treatments and so on are appropriate to this application.
- Available using in various wastewater drainage systems and sewage water treatments.

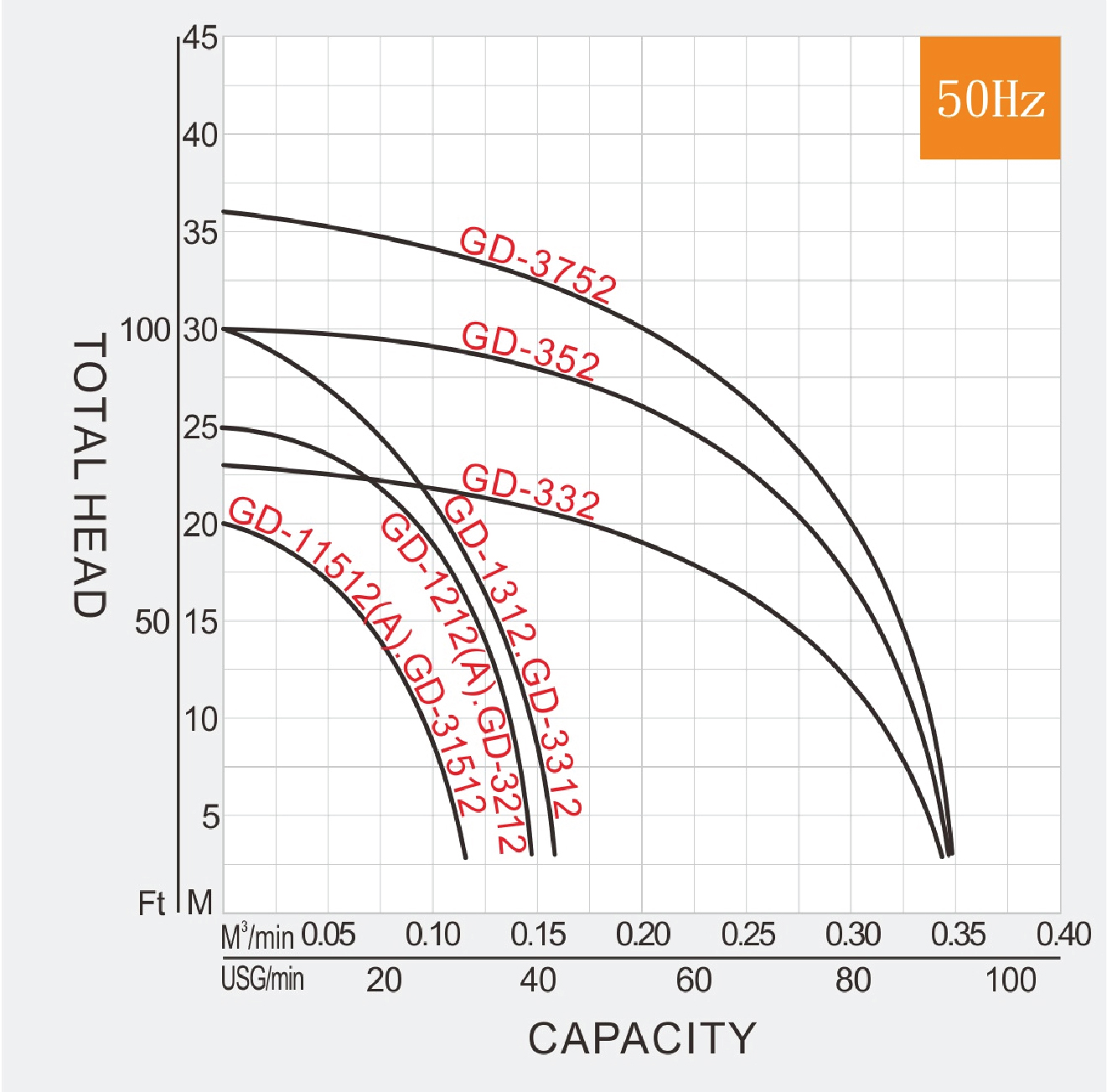

Performance Curve
Type | Frequency | Phase | Power | Discharge | Pole/Rotation | Std.Head | Std.Flow | Max.Head | Max.Flow MA | Weight | ||
HZ | PH | HP | KW | Inch | mm | P/rpm | M | M3/Min | M | M3/Min | KG | |
GD-11512 | 50 | 1φ | 1½ | 1.1 | 1¼" | 32 | 2P / 2850 | 16 | 0.06 | 20 | 0.12 | 27 |
GD-31512 | 50 | 3φ | 1½ | 1.1 | 1¼" | 32 | 2P / 2850 | 16 | 0.06 | 20 | 0.12 | 25 |
GD-1212 | 50 | 1φ | 2 | 1.5 | 1¼" | 32 | 2P / 2850 | 23 | 0.06 | 25 | 0.15 | 36 |
GD-3212 | 50 | 3φ | 2 | 1.5 | 1¼" | 32 | 2P / 2850 | 23 | 0.06 | 25 | 0.15 | 33 |
GD-1312 | 50 | 1φ | 3 | 2.2 | 1¼" | 32 | 2P / 2850 | 26 | 0.06 | 30 | 0.16 | 39 |
GD-3312 | 50 | 3φ | 3 | 2.2 | 1¼" | 32 | 2P / 2850 | 26 | 0.06 | 30 | 0.16 | 36 |
GD-332 | 50 | 3φ | 3 | 2.2 | 2" | 50 | 2P / 2850 | 19 | 0.2 | 23 | 0.35 | 51 |
GD-352 | 50 | 3φ | 5 | 3.7 | 2" | 50 | 2P / 2850 | 26 | 0.2 | 30 | 0.35 | 53 |
GD-3752 | 50 | 3φ | 7½ | 5.5 | 2" | 50 | 2P / 2850 | 30 | 0.2 | 36 | 0.35 | 54 |
