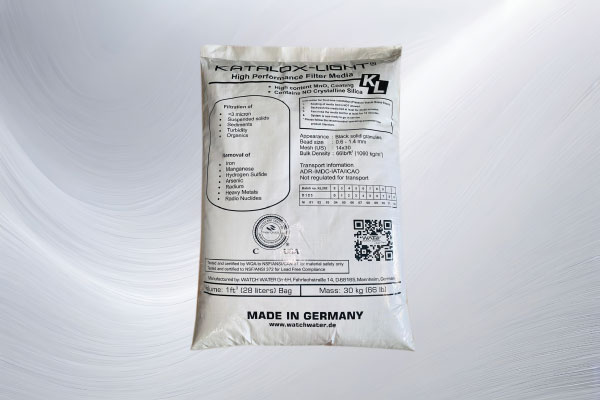

KATALOX LIGHT

KATALOX LIGHT
KATALOX LIGHT in Bangladesh
  • Total Suspended solids
  • Organic
  • Sediments
  • Turbidity
  • Color (some, organic)
  • Odour
  • Iron (Inlet conc. up to. 100 mg/L)
  • Manganese (Inlet conc. up to 20 mg/L)
  • Hydrogen Sulfide
  • Arsenic
  • Uranium, Radium
  • Heavy Metals
  • Radionuclides
  • High content MnO2 coating (10%)
  • Very High Surface Area
  • Contains NO Crystalline Silica
  • Light Weight – providing significant savings on backwash water
  • Higher Filtration rates
  • Filtration of sand, sediment and suspended solids, down to 3 micron
  • High efficiency removal capacity of Iron, Manganese and Hydrogen sulfide
  • Effective reduction of Arsenic, Zinc, Copper, Lead, Radium, Uranium, radionuclides and other heavy metals
  • Media replacement every 7 – 10 years
  • No disinfection by-product
  • No mandatory KMnO4, chlorine or chlorine dioxide dosing
  • Low operational costs
  • Unique product, unmatched by our competitors
  • Katalox, Brand of Germany.
  • 30 kg (66Ib)

Comparison of katalox light over other iron removal media

S/L Criteria KATALOX LIGHT BIRM Green Sand Plus
1 Operating pH 5.8 – 10.5 6.8-9.0 6.2 – 8.5
2 Filtration Level <3 Micron Not act as Filter Not act as Filter
3 Iron Removal Up to 100 ppm Very Limited Very Limited
4 Mn Removal Up to 20 ppm Very Limited Very Limited
5 Arsenic Removal Possible Not Possible Not Possible
6 No of Filter (Vessel) Required Possible of Stand-Alone Treatment
( Work as Multigrade and Carbon Media Also)
Multigrade and Carbon Filter Required Multigrade and Carbon Filter Required
7 Area Required Less Area Required More then Katalox Light More than Katalox Light
8 Operating Cost Less Higher Higher
9 Compressed Air Requirement Not Required Required for Scouring During Backwash Required for Scouring during Backwash and Oxidation
10 Regeneration Not Required Not Required Required
11 Backwash Time 10 – 15 Min 20 – 30 Min 20 – 30 Min
12 Rinse Time 2- 3 Min 5-10 min 5-10 min
13 Coating of MnO2 10% 0.5% 1%
14 Media Life Time 10 year 5 year 5 Year
15 Color Removal Possible Not Possible Not Possible
16 Turbidity Removal Possible Not Possible Not Possible
