Overview

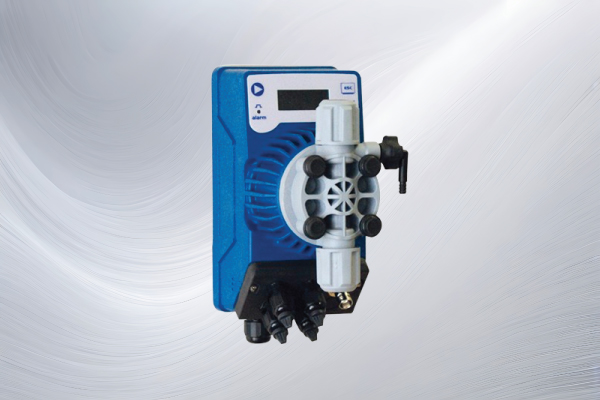

A versatile, multi-model solution within the SEKO solenoid dosing pumps range, the wall-mounted Kompact series is ideal for cost-critical applications with small delivery requirements such as chemical dosing systems for swimming pools.
Among the energy-saving features of the Kompact chemical dosing pumps range is a stabilized multi power supply, which draws the precise quantity of power required to activate the pump. This optimizes efficiency and ensures power supply fluctuations do not jeopardise performance.
Kompact is built with the superior components you expect from a SEKO product, including ceramic ball valves, PTFE diaphragm and PVDF-T pump head (PVDF optional). This delivers exceptional chemical compatibility with wetted parts for outstanding life expectancy and reduced maintenance requirement.
Features
Specification
Accessories to enhance your Kompact pump
Features
- Adjustable constant and proportional flow rates to suit application
- Password protection for added security (digital models)
- Programmable timer for regular dosing
- Multi-colour LED status system simplifies pump monitoring
- Level control input ensures pump does not run dry
- Five-year guarantee
Specification
- Flow rate: up to 5 l/h
- Pressure: up to 10 bar (145 psi)
- Stroke rate: up to 160 strokes/minute
- Wetted part materials: PVDF-T, PTFE, EPDM, FPM and ceramic
- Power supply: 100–240 VAC 50/60 Hz
- Ingress protection: IP65
Accessories to enhance your Kompact pump
- Multifunction valve
- Flow sensor
- Temperature probe
- Low-level alarm
Kompact AMC
Constant flow rate that can be manually adjusted or with proportional flow rate according to a digital input signal (from water meter), Power-ON led indicator and level control input. The two different modes are:
- Constant (switch in C position) The pump constantly doses the rate selected with the potentiometer
- Proportional (switch in P position) The pump doses proportionally to the digital input signal (Division mode 4 : 1). Maximum input frequency: 80Hz
Kompact AML
Analogue dosing pump with constant flow rate with manual adjustment using the control dial on the front panel with two frequency ranges (0÷20% or 0÷100%), Power-ON LED indicator and level control input.
Kompact AMM
Constant flow rate that can be manually adjusted or with proportional flow rate according to an external analogue signal (4÷20 mA), Power-ON led indicator and level control input. The two different modes are:
- Constant (switch in C position) The pump constantly doses the rate selected with the potentiometer
- Proportional (switch in P position) The pump doses proportionally to the analogue input signal (4÷20 mA)
Kompact AMS
Analogue dosing pump with constant flow rate with manual adjustment using the control dial on the front panel. Power-ON LED indicator.
The pump head comes as standard in PVDF-T, but can be optionally specified in PVDF
Kompact DPT
Constant flow rate manually adjustable, with proportional flow rate according to an external analogue (0/4 - 20 mA or 20 - 4/0 mA) or digital signal (water meter, hall sensor or voltage signal).
- Programmable via keypad and features a 2 line x 8 digit backlit display
- The pump head has a manual priming valve
- The flow rate is manually or automatically (by signal input) adjustable from 0 (pump stop) to 100% of the max flow rate
- Comes with a low-level alarm
Kompact DRP
Constant flow rate manually adjustable, with proportional flow rate according the measured pH or Redox value.
- Programmable via keypad and features a two-line x eight-digit backlit display
- The pump head has a manual priming valve
- The flow rate is manually or automatically (by signal input) adjustable from 0 (pump stop) to 100% of the max flow rate
- Comes with a low-level alarm
Model | Pressure (bar) | Flow Rate(L/h) | Stroke Capacity (cc/stroke) |
Connections IN/OUT (mm) |
Frequency max (stroke/min) |
Consumption (W) |
Weight (Kg) | Wooden Box Size(LxWxH) mm |
200 | 8 | 5 | 0.52 | 4/6 mm | 160 | 12 | 2.4 | 285x185x180 |
10 | 3 | 0.31 | ||||||
2 | 9 | 0.93 | ||||||
201 | 7 | 1 | 0.1 |
