Overview

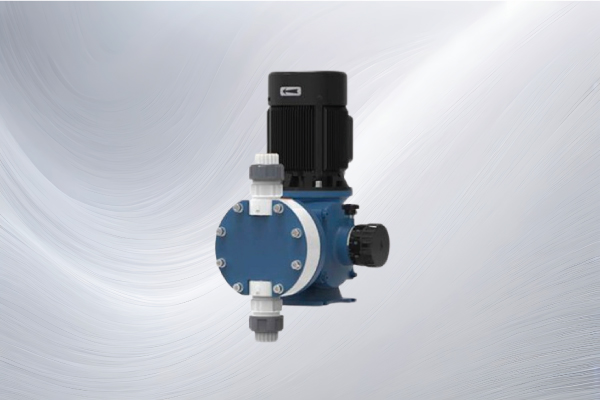

Representing one of our most flexible chemical dosing solutions, the Kosmo range of motor-driven diaphragm pumps offers consistently accurate and reliable performance in applications as diverse as reverse osmosis, cooling water and potable water treatment.
Superior operation across a range of flow rates up to 2,300 l/h means the fully-reciprocating Kosmo is particularly suited to water-treatment applications requiring a low flow rate. Meanwhile, high-grade 316L stainless steel, PVC and PVDF components provide outstanding chemical compatibility and an optional cast aluminium housing offers a lightweight yet strong, durable alternative.
Kosmo’s permanently-lubricated mechanism includes ball bearings for the principal moving parts, helping to prevent overheating and delivering quiet running even during continuous operation.
Features
Specification
Accessories to enhance your Kosmo pump
Features
- High-grade components for chemical compatibility, durability and extended service life
- IP55 protection against water jets and dust
Specification
- Flow rate: up to 2,300 l/h
- Pressure: up to 12 bar (174 psi)
- Stroke rate: up to 175 strokes/minute
- Wetted part materials: 316L stainless steel, PVC and PVDF
- Power output: 0.25 – 1.1 kW
- Power supply: 230/400V 50 Hz
- Ingress protection: IP55
Accessories to enhance your Kosmo pump
- Flow-rate calibration pots
- Pulsation dampers
- Safety valves
- Back pressure valves
