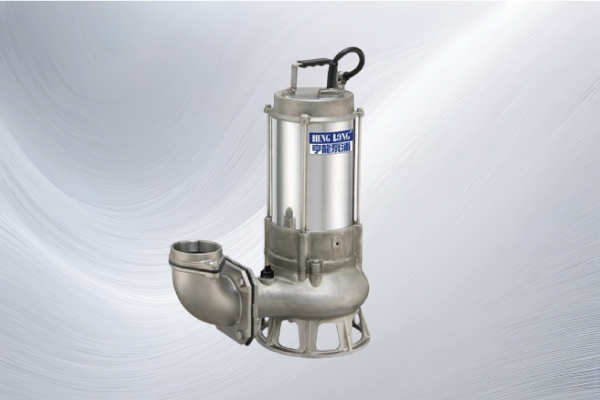

P Series SS316 Non-Clog Sewage Pump

P Series SS316 Non-Clog Sewage Pump
Features
  1. Pump cover made by SCS14 which resists wastewater with weak-acid and weak-alkalinity.
  2. Cable base and core wire are dealt with Epoxy Resin to prevent the moisture into the motor.
  3. Volute casing is equipped with the vortex impeller without clogging situations for pumping mud and sewage effectively.
  4. The mechanical seal parts are combined with the high-quality double silicon carbide to improve stainless steel pumps work as well in the weak acid and weak alkalinity environment.
  5. Motor is B class(130°C) insulation, enclosure IEC IP68.
  6. Auto-cut prevents the motor from overheat.
  7. This type can be equipped with a lift bracket.
Application
  1. Wastewater lift station, municipal wastewater treatment plant.
  2. Building a wastewater treatment system.
  3. Piggery excrement, animal & poultry farm.
  4. School, hospital, community wastewater treatment system.
  5. Food, paper, mining, textile, leather industry wastewater treatment system.
Structural-Drawing-of-of-Grampus-Non-Clog-Sewage-Submersible-Mud-Pump-Taiwan
Dimension-of-Grampus-Non-Clog-Sewage-Submersible-Mud-Pump-Taiwan

Material And Standard Table

Performance-curve-of-of-Grampus-Non-Clog-Sewage-Submersible-Mud-Pump-Taiwan
Type Frequency Phase Power Discharge Pole/Rotation Std.Head Std.Flow Max.Head Max.Flow MA P Weight TUP-P Weight Solid Passage
HZ PH HP HP KW KW Inch mm P/rpm M M3/Min M M3/Min KG KG mm
P-1052(A) 50 ½ 0.4 2" 50 2P / 2850 5 0.2 9 0.28 15 26 35
P-3052 50 ½ 0.4 2" 50 2P / 2850 5 0.2 9 0.28 15 26 35
P-102(A) 50 1 0.75 2" 50 2P / 2850 9 0.2 13 0.35 28 29 35
P-312 50 1 0.75 2" 50 2P / 2850 9 0.2 13 0.35 28 29 35
P-123 50 2 1.5 3" 80 2P / 2850 6 0.5 15 0.70 36 54 40
P-323 50 2 1.5 3" 80 2P / 2850 6 0.5 15 0.70 35 53 40
P-333 50 3 2.2 3" 80 2P / 2850 10 0.5 17 1.00 42 60 45
P-353 50 5 3.7 3" 80 2P / 2850 18 0.5 23 1.30 45 63 40
P-3754 50 5.5 4" 100 2P / 2850 11 1 26 1.30 55 73 50
P-3104 50 10 7.5 4" 100 2P / 2850 18 1 30 1.30 60 78 50
