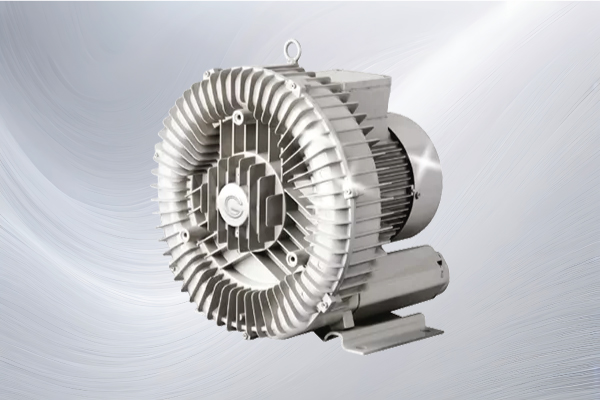

Precise blade and cover made of die-cast aluminum alloy housing Wide voltage and frequency. Stable working performance and energy saving
Dual-usage: Compressor and vacuum(blow and suction). Centrifugal circulation design. High pressure and big smooth air volume. No oily odors.
Air flow cushioning design. Low noise and low vibration. Compact lightweight design. Longer operating life and easy installation
Model: GHS Series
Specifications
Cooler running NSK & TPI bearing
Precise blade and cover made of die-cast aluminum
High quality copper winding motor with IP54 and IP55 protection and insulation class H
Die-cast aluminum alloy housing
Wide voltage and frequency.Stable working performance and energy saving
Dual-usage: Compressor and vacuum(blow and suction)
Centrifugal circulation design.High pressure and big smooth air volume
No oily odors
Air flow cushioning design.Low noise and low vibration
Compact light weight design.Longer operating life and easy installation
Applications
Printing Machines
Burning Machines
Household Machines
Plastic Extruder, Laminating, Film Making Machines
Machinery for the Food and Beverage Industries
Uniform Temperature Equipment
Grain Elevators
Woodworking Machines
Pollution Machines
Hot Air Blower
Textile Machines
Dryers Machines
Incinerators
Machinery for Cooling
Dust Collectors
Single- Phase motor, 50Hz handling performance table
| ITEM | MODEL 50Hz | RATED OUTPUT (KW) | VOLTAGE(V) | CURRENT (A) | VOLTAGE(V) | CURRENT (A) | STATIC PRESSURE VACUUM/COMPRESSOR (Mbar) | MAX VOLUME (M3/min) | NOISE (Db) | WEIGHT (KG) | RELIEF VALVE PRESSURE TYPE | SUCTION FILTER |
| E1 | GHS-129 | 0.18 | 110-120 | 2.5 | 220-240 | 1.25 | 50/40 | 0.8 | 52 | 6.5 | - | GMF8 |
| E2 | GHS-229 | 0.4 | 110-120 | 5.5 | 220-240 | 2.6 | 110/130 | 1.4 | 58 | 11.5 | 01*1/01*1 | GMF10 |
| E3 | GHS-229L | 0.4 | 110-120 | 5.5 | 220-240 | 2.6 | 110/130 | 1.4 | 58 | 12 | 01*1/01*1 | GMF10 |
| E4 | GHS-329 | 0.75 | 110-120 | 11 | 220-240 | 5.5 | 140/160 | 2.4 | 63 | 16 | 01*1/01*1 | GMF12 |
| E6 | GHS-329L | 0.75 | 110-120 | 1 | 220-240 | 5.5 | 140/160 | 2.4 | 63 | 16.5 | 01*1/01*1 | GMF12 |
| E5 | GHS-339 | 1.1 | - | - | 220-240 | 7.0 | 160/190 | 2.4 | 63 | 16.5 | 01*1/01*1 | GMF12 |
| E7 | GHS-429-2 | 1.1 | - | - | 220-240 | 8.5 | 150/150 | 3.6 | 70 | 26 | 01*1/01*1 | GMF16 |
| E8 | GHS-429 | 1.5 | - | - | 220-240 | 10 | 180/190 | 3.6 | 70 | 26 | 01*1/01*1 | GMF16 |
| E9 | C1HS-429L | 1.5 | - | - | 220-240 | 10 | 180/190 | 3.6 | 70 | 26.5 | 01*1/01*1 | GMF16 |
| E10 | GHS-2308 | 0.75 | 110-120 | 9.2 | 220-240 | 4.5 | 180/220 | 1.5 | 60 | 17.5 | 01*1/01*1 | GMF 10 |
| E11 | GHS-3315 | 1.5 | - | - | 220-240 | 10 | 240/250 | 2.6 | 66 | 28.5 | 01*1/01*1 | GMF12 |
Three- Phase motor, 50Hz handling performance table
| ITEM | MODEL 50Hz | RATED OUTPUT (KW) | VOLTAGE(V) | CURRENT (A) | VOLTAGE(V) | CURRENT (A) | STATIC PRESSURE VACUUM/COMPRESSOR (Mbar) | MAX VOLUME (M3/min) | NOISE (Db) | WEIGHT (KG) | RELIEF VALVE PRESSURE TYPE | SUCTION FILTER |
| E12 | GHS-129 | 0.18 | 220-240 | 1.2 | 346-415 | 0.69 | 50/60 | 0.8 | 52 | 6.5 | - | GMF8 |
| E13 | GHS-229 | 0.4 | 220-240 | 2.25 | 346-415 | 1.29 | 110/130 | 1.4 | 58 | 11 | 01*1/01*1 | GMF10 |
| E14 | GHS-229L | 0.4 | 220-240 | 2.25 | 346-415 | 1.29 | 100/130 | 1.4 | 58 | 11.5 | 01*1/01*1 | GMF10 |
| E15 | GHS-329 | 0.75 | 220-240 | 3.7 | 346-415 | 2.14 | 140/140 | 2.4 | 63 | 14.5 | 01*1/01*1 | GMF12 |
| E16 | GHS-329-1 | 0.9 | 220-240 | 4.2 | 346-415 | 2.4 | 165/180 | 2.4 | 3 | 15.5 | 01*1/01*1 | GMF12 |
| E17 | GHS-329-9 | 0.75 | 220-240 | 3.7 | 346-415 | 2.14 | 110/120 | 2.4 | 63 | 14.5 | 01*1/01*1 | GMF12 |
| E18 | GHS-329L | 0.75 | 220-240 | 3.7 | 346-415 | 2.14 | 140/140 | 2.4 | 63 | 15 | 01*1/01*1 | GMF12 |
| E19 | GHS-339 | 1.3 | 220-240 | 4.6 | 346-415 | 2.65 | 175/200 | 2.4 | 63 | 16 | 01*1/01*1 | GMF12 |
| E20 | GHS-429-1 | 60 | 220-240 | 4.2 | 346-415 | 2.4 | 130/120 | 3.6 | 70 | 20.5 | 01*1/01*1 | GMF16 |
| E21 | GHS-429-2 | 1.3 | 220-240 | 5.7 | 346-415 | 3.3 | 180/180 | 3.6 | 70 | 22 | 01*1/01*1 | GMF16 |
| E22 | GHS-429 | 1.75 | 220-240 | 6.7 | 346-415 | 3.9 | 210/220 | 3.6 | 70 | 23 | 01*1/01*1 | GMF16 |
| E23 | GHS-429-9 | 1.75 | 220-240 | 6.7 | 346-415 | 3.9 | 140/160 | 3.6 | 70 | 23 | 01*1/01*1 | GMF16 |
| E24 | GHS-429L | 1.75 | 220-240 | 6.7 | 346-415 | 3.9 | 210/220 | 3.6 | 70 | 23.5 | 01*1/01*1 | GMF16 |
| E25 | GHS-439 | 2.2 | 220-240 | 7.8 | 346-415 | 4.5 | 220/270 | 3.6 | 70 | 26 | 01*1/01*1 | GMF16 |
| E26 | GHS-529 | 2.2 | 220-240 | 9.5 | 346-415 | 5.5 | 230/220 | 5.2 | 72 | 32 | 01*1/01*1 | GMF16 |
| E27 | GHS-529-9 | 2.2 | 220-240 | 9.5 | 346-415 | 5.5 | 160/200 | 5.2 | 72 | 32 | 01*1/01*1 | GMF16 |
| E28 | GHS-529L | 2.2 | 220-240 | 9.5 | 346-415 | 5.5 | 230/220 | 5.2 | 72 | 32.5 | 01*1/01*1 | GMF16 |
| E29 | GHS-629 | 3.4 | 220-240 | 12 | 346-415 | 6.9 | 255/280 | 5.2 | 72 | 35 | 01*1/01*1 | GMF16 |
| E30 | GHS-629L | 3.4 | 220-240 | 2 | 346-415 | 6.9 | 255/280 | 5.2 | 72 | 35.5 | 01*1/01*1 | GMF16 |
| E31 | GHS-639 | 4.0 | 220-240 | 13.9 | 346-415 | 8.0 | 270/325 | 5.2 | 72 | 38 | 01*1/02*1 | GMF16 |
| E32 | GHS-7299 | 5.5 | 220-240 | 21 | 346-415 | 12 | 270/300 | 9.2 | 74 | 78 | 01*1/02*1 | GMF20 |
| E33 | GH5-829 | 7.5 | 220-240 | 27 | 346-415 | 15.6 | 295/395 | 9.2 | 74 | 82 | 02*1/02*1 | GMF20 |
| E34 | GHS-919 | 9 | 220-240 | 36 | 346-415 | 20.8 | 200/190 | 18.9 | 76 | 100 | - | GMF32 |
| E35 | GHS-929 | 13 | 220-240 | 46.8 | 346-415 | 27 | 305/295 | 18.9 | 76 | 112 | - | GMF32 |
| E36 | GHS-939 | 20 | 220-240 | 66.7 | 346-415 | 38.6 | 350/440 | 18.9 | 76 | 159 | - | GMF32 |
| E37 | GHS-2308 | 0.75 | 220-240 | 3.45 | 346-415 | 2.0 | 200/240 | 1.5 | 60 | 17 | 01*1/01*1 | GMF10 |
| E38 | GHS-3319 | 1.75 | 220-240 | 6.7 | 346-415 | 3.9 | 275/320 | 2.6 | 66 | 25 | 01*1/02*1 | GMF12 |
| E39 | GHS-3326 | 2.2 | 220-240 | 7.8 | 346-415 | 4.5 | 280/375 | 2.6 | 66 | 28 | 01*1/02*1 | GMF12 |
| E40 | GHS-4337 | 3.4 | 220-240 | 2 | 346-415 | 6.9 | 345/410 | 3.7 | 74 | 40 | 02*1/02*1 | GMF16 |
| E41 | GHS-4346 | 4.0 | 220-240 | 14.3 | 346-415 | 8.3 | 355/495 | 3.7 | 74 | 43 | 02*1/02*1 | GMF16 |
| E42 | GHS-6346 | 4.0 | 220-240 | 14.3 | 346-415 | 8.3 | 360/380 | 5.2 | 75 | 55 | 02*1/02*1 | GMF16 |
| E43 | GHS-6355 | 5.5 | 220-240 | 21 | 346-415 | 12 | 410/515 | 5.2 | 75 | 72 | 02*1/02*2 | GMF16 |
| E44 | GHS-6375 | 7.5 | 220-240 | 27 | 346-415 | 15.6 | 420/580 | 5.2 | 75 | 80.5 | 02*1/02*2 | GMF16 |
| E45 | GHS-6455 | 5.5 | 220-240 | 21 | 346-415 | 12 | 200/220 | 7.8 | 75 | 70 | 01*1/01*1 | GMF16 |
| E46 | GHS-6475 | 7.5 | 220-240 | 27 | 346-415 | 15.6 | 240/275 | 7.8 | 75 | 80.5 | 01*1/01*1 | GMF16 |
| E47 | GHS-8310 | 7.5 | 220-240 | 27 | 346-415 | 15.6 | 360/350 | 9.6 | 76 | 112 | 02*1/02*1 | GMF20 |
| E48 | GHS-8315 | 13 | 220-240 | 46.8 | 346-415 | 27 | 430/600 | 96 | 7 | 142 | 02*1/02*3 | GMF20 |
| E49 | GHS-8320 | 20 | 220-240 | 66.7 | 346-415 | 38.6 | 450/700 | 9.6 | 76 | 160 | 02*1/02*3 | GMF20 |
| E50 | GHS-8410 | 7.5 | 220-240 | 27 | 346-415 | 15.6 | 180/145 | 14.2 | 76 | 110 | - | GMF20 |
| E51 | GHS-8415 | 13 | 220-240 | 46.8 | 346-415 | 27 | 260/260 | 14.2 | 76 | 140 | - | GMF20 |
| E52 | GHS-9320 | 13 | 220-240 | 46.8 | 346-415 | 27 | 265/255 | 19 | 75 | 165 | - | GMF32 |
| E53 | GHS-9325 | 20 | 220-240 | 66.7 | 346-415 | 38.6 | 410/375 | 19 | 75 | 178 | - | GMF32 |
| E54 | GHS-9420 | 13 | 220-240 | 46.8 | 346-415 | 27 | 160/150 | 32 | 76 | 170 | - | GMF32 |
| E55 | GHS-9425 | 20 | 220-240 | 66.7 | 346-415 | 38.6 | 260/240 | 32 | 76 | 200 | - | GMF32 |
