Overview

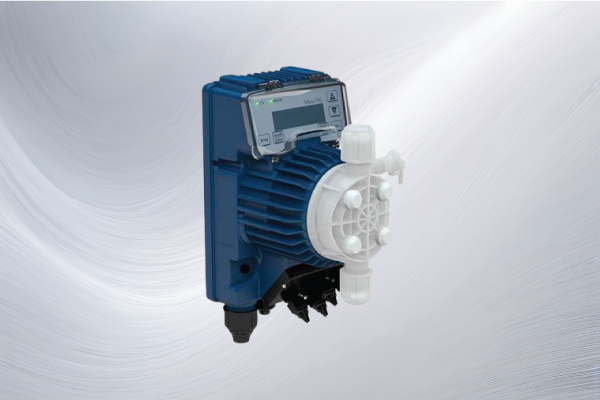

For high-accuracy, consistent and reliable chemical dosing in water-treatment applications, SEKO’s Tekna series of wall-mounted solenoid-driven dosing pumps represents a benchmark in versatility and performance.
Comprising a range of five diaphragm pumps, Tekna is just as commonly found delivering antibiotics into livestock drinking water as it is maintaining precise chlorine levels within a swimming pool chemical-dosing system. Meanwhile, Tekna is also available in an ATEX-compliant model for use in explosive atmospheres such as mining, power-generation and petrochemical applications. The ATEX version includes an AISI 316 stainless steel head and aluminum casing for outstanding resistance to aggressive environments.
Special versions available include
- AKE200 5 l/h @ 8 bar
- AKL101 1 – 6 l/d
- AKS604 10 l/h @ 5 bar
- ATL400 STD version
- ATL400 Air-conditioning version
- TPG300 0.5 l/h @ 5 bar
PVDF pump head, PTFE diaphragms and ceramic ball valves offer outstanding compatibility with chemicals such as chlorine, hydrogen peroxide and peracetic acid
- Stabilized multi power supply always draws specific current to activate the pump, regardless of power-supply fluctuations
- Statistics menu allows pump performance and chemical consumption to be monitored
- Constant or proportional dosing (including batch mode) via analogue and digital inputs
- PT100 probe input enables thermal compensation
- Programmable timer facilitates regular dosing
- Flow rate: 0.4–110 l/h
- Pressure: up to 20 bar (290 psi)
- Stroke rate: up to 300 strokes/minute
- Wetted part materials: PVDF, PTFE, EPDM, FPM, ceramic and AISI 316 (ATEX)
- Power supply: 100–240 VAC 50/60 Hz
- Analogue input: 4–20 mA
- Ingress protection: IP65
- ATEX classification: CE Ex II 3GD | Ex ic nA IIB T4 Gc | Ex tc III CT120°C Dc IP65
- Multifunction valve
- Automatic degassing head
- Flow sensor
- Temperature probe
- Low-level alarm
| Model | Pressure (bar) | Flow Rate(L/h) | Stroke Capacity (cc/stroke) | Connections IN/OUT (mm) | Frequency max (stroke/min) | Consumption (W) | Weight (Kg) | Wooden Box Size(LxWxH) mm |
| 500 | 20 | 0.4 | 0.06 | 4/6 Suc. 4/7 Dis. | 120 | 15 | 3.4 | 285x185x240 |
| 16 | 0.8 | 0.11 | ||||||
| 10 | 1.2 | 0.16 | ||||||
| 6 | 1.5 | 0.21 | ||||||
| 600 | 20 | 2.5 | 0.35 | 4/6 Suc. 4/7 Dis. | 120 | 20 | 3.9 | |
| 18 | 3 | 0.42 | ||||||
| 14 | 4.2 | 0.58 | ||||||
| 8 | 7 | 0.97 | ||||||
| 603 | 12 | 4 | 0.42 | 4/6 Suc. 4/6 Dis. | 160 | 20 | 3.4 | |
| 10 | 5 | 0.52 | ||||||
| 8 | 6 | 0.63 | ||||||
| 2 | 8 | 0.83 | ||||||
| 800 | 16 | 7 | 0.38 | 4/6 Suc. 4/6 Dis. | 300 | 40 | 4.4 | |
| 10 | 10 | 0.55 | ||||||
| 5 | 15 | 0.83 | ||||||
| 1 | 18 | 1 | ||||||
| 803 | 5 | 20 | 1.11 | 8/12 Suc. 8/12 Dis. | 300 | 40 | 4.4 | |
| 4 | 25 | 1.39 | ||||||
| 2 | 38 | 2.22 | ||||||
| 0.1 | 54 | 3 |
