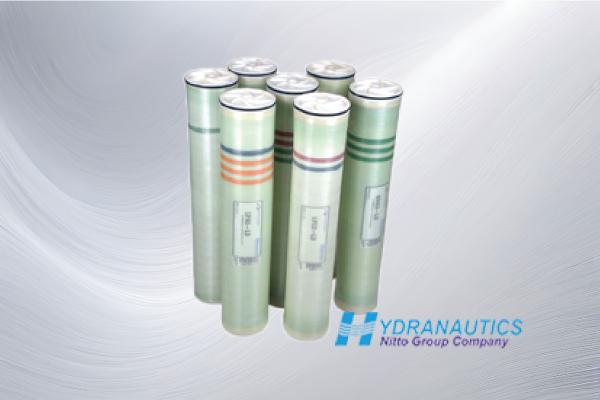

ESPA4 Series Hydranautics RO Membrane Elements

ESPA 4 Series membrane elements feature a lower operating pressure, resulting in lower operating costs, while maintaining high productivity and a minimum salt rejection of 99%.

ESPAB Series Boron Removal Hydranautics RO Membrane Elements

ESPA B boron removing elements provide a new option for communities where boron levels are naturally high or for manufacturers challenged by boron contamination issues.

Please see product specification sheets for the test conditions under which the stated performance are based, and exact membrane element dimensions.

CPA2 – “The Workhorse” Most widely used with consistent performance

CPA3 – Best combination of productivity and salt rejection available

Model No.	Size(Dia.”× Length”)	Flow Rate		Test Pressure (psi)	Nominal Salt Rejection (%)	Minimum Salt Rejection (%)
		gpd	m³/d
CPA2-4040	4” × 40”	2,250	8.5	225	99.5	99.2
CPA2	8” x 40”	10,000	37.9	225	99.7	99.5
CPA3	8” × 40”	11,000	41.6	225	99.7	99.6

CPA5-LD Series – New technology minimizing bio-fouling and colloidal fouling and enhancing cleanability. Where ultrahigh purity water is required under difficult feedwater conditions, the CPA5-LD gives the most desirable combination of high rejection and high flow. For industries such as power, semiconductor, food and beverage, where high purity water is critical to operations, CPA5-LD gives you the most desirable combination of performance and efficiency. CPA5-LD helps reduce RO system power consumption and the membrane resistance to biological and colloidal fouling helps reduce the number of cleanings required, lowering the overall cost of your operation.

Model No.	Size(Dia.”× Length”)	Flow Rate		Test Pressure (psi)	Nominal Salt Rejection (%)	Minimum Salt Rejection (%)
		gpd	m³/d
CPA5-LD-4040	4” × 40”	2,100	7.95	225	99.7	99.5
CPA5-LD	8” × 40”	11,000	41.6	225	99.7	99.6
CPA5MAX	8” × 40”	12,000	45.4	225	99.7	99.6

Please see the product specification sheets for the test conditions under which the stated performance is based and the exact membrane element dimensions.

LFC-3-LD Membrane Elements with Hydranautics LD Technology™ innovative low-fouling membranes combine the attributes of a neutrally charged surface with hydrophilicity to achieve the lowest organic and colloidal fouling in the most demanding Feedwater conditions. Hydranautics LFC3-LD membrane elements are designed with a thicker brine spacer lowering the Delta P meeting the increased demand for lower fouling membranes that require less frequent cleanings while maintaining a high permeate flow.

Please see the product specification sheets for the test conditions under which the stated performance is based, and the exact membrane element dimensions. Superior membrane technology is the key to Hydranautics’ innovative LFC (Low Fouling Composite) membranes. LFC3-LD membranes offer breakthrough technology in the treatment of difficult feedwaters and municipal wastewaters. Until now, these applications required significant pretreatment prior to being subjected to a composite polyamide membrane, which is eliminated with the use of the LFC3-LD membrane.

Model No.	Size (Dia.”× Length”)	Flow Rate		Test Pressure (psi)	Nominal Salt Rejection (%)	Minimum Salt Rejection (%)
		gpd	m³/d
LFC3-LD-4040	4” × 40”	2,100	7.95	225	99.7	99.5
LFC3-LD	8” × 40”	11,000	41.6	225	99.7	99.5

Performance Details & Ordering Information for Hydranautics SWRO Membrane Elements

SWC4 Series Seawater RO Membranes Highest Boron Rejection Available (95% average)

Model No.	Size(Dia.”× Length”)	Flow Rate		Test Pressure(psi)	Nominal Salt Rejection (%)	Minimum Salt Rejection (%)
		gpd	m³/d
SWC4BMAX	8” × 40”	7,200	27.3	800	99.8	99.7

SWC5 Series Seawater RO Membranes Lower Fouling for Maximum Performance

Model No.	Size(Dia.”× Length”)	Flow Rate		Test Pressure(psi)	Nominal Salt Rejection (%)	Minimum Salt Rejection (%)
		gpd	m³/d
SWC5-LD-4040	4” × 40”	1,750	6.6	800	99.7	99.5
SWC5-LD	8” × 40”	9,000	34.1	800	99.8	99.7
SWC5MAX	8” × 40”	9,900	37.5	800	99.8	99.7

SWC6 Series Seawater RO Membranes Highest Permeate Flow Rate Available with 91% Average Boron Rejection

Model No.	Size(Dia.”× Length”)	Flow Rate		Test Pressure(psi)	Nominal Salt Rejection (%)	Minimum Salt Rejection (%)
		gpd	m³/d
SWC6-4040	4” × 40”	2,500	7.2	800	99.7	99.5
SWC6	8” × 40”	12,000	45.5	800	99.8	99.7
SWC6MAX	8” × 40”	13,200	50	800	99.8	99.7

Please see the product specification sheets for the test conditions under which the stated performance is based, and the exact membrane element dimensions.
