Duty Parameter
- Capacity: Up to 750 m3/hr
- Head: Up to 170 m
- Temp: -200 C to 120°C
- Delivery Size: 32-150 mm
Design Features

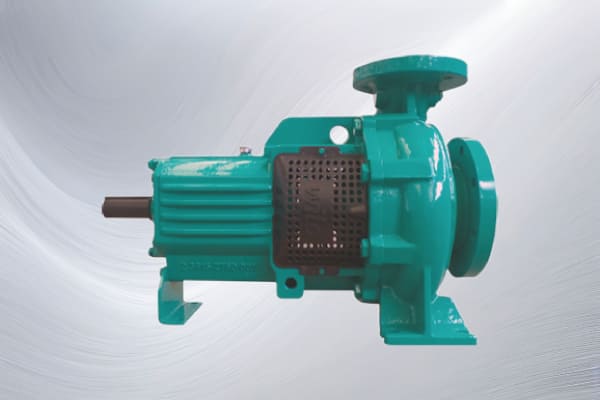

- End Suction Top Discharge Centrifugal Type
- Single Stage
- Closed Impeller
- Gland Packing / Mechanical Seal
-
-
-
Applications
- HVAC Systems
- Water Transfer
- Distribution Systems
- Fire Fighting
- Cooling Tower
- Drinking Water Supply
Material of Construction
- Casing : SS(304 / 316 L)
- Impeller : SS(304 / 316 L)
Brand
| Model |
Suction (mm) |
Delivery (mm) |
Power Rating (kW) |
Capacity (m3/h) |
Head (m) |
Data Curve |
| MISO 32-160 |
50 |
32 |
3-5.5 |
7.5-25 |
47-20 |
|
| MISO 50-160 |
65 |
50 |
3-7.5 |
20-55 |
47-20 |
|
| MISO 65-160 |
80 |
65 |
7.5-15 |
30-100 |
48-20 |
|
| Model |
Suction (mm) |
Delivery (mm) |
Power Rating (kW) |
Capacity (m3/h) |
Head (m) |
Data Curve |
| PISO 32-125 |
50 |
32 |
3.0-4.0 |
10.0-35.0 |
27.0-10.0 |
|
| PISO 32-160 |
50 |
32 |
3.0-5.5 |
5.0-25.0 |
47-20 |
|
| PISO 50-125 |
65 |
50 |
3.0-4.0 |
15.0-45.0 |
28.0-10.0 |
|
| PISO 50-160 |
65 |
50 |
3.0-7.5 |
20.0-60.0 |
47.0-15.0 |
|
| PISO 65-160 |
80 |
65 |
5.5-15.0 |
40.0-100.0 |
47.0-15.0 |
|
