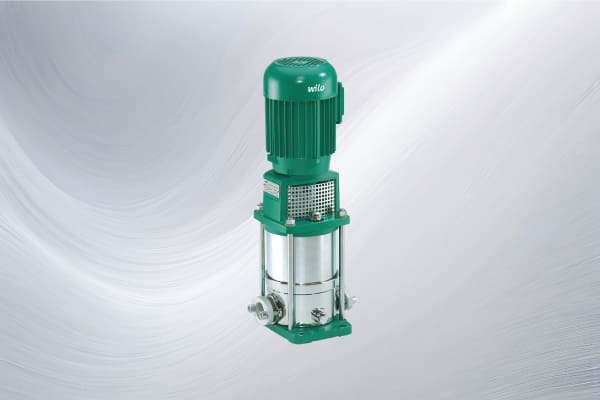

MVI Vertical Multistage in Bangladesh- Best Water Treatment (ETP, STP, WTP, RO) Solutions in Bangladesh.
Duty Parameter
- Capacity: Up to 800 m3/hr
- Head: Up to 160 m
- Temp: up to 120°C
- Delivery Size: DN 32-DN 100
Design Features
- Multi-pump pressure boosting systems from two up to eight pumps in stainless steel construction
- Fitted on a common Baseplate with vibration dampers
- Design Pressure: 25 Bar
-
-
-
Applications
- Pressure Boosting for Apartment, commercial complexes, hotels, industries, etc.
- Boiler Feed
- RO Feed
Material of Construction
- Casing – SS (304/316L) / Cast Iron
- Impeller – SS (304/316L)
Brand
MVI SERIES (Vetical Multistage Pump)
| Model |
Power |
Port |
Capacity |
Head |
Data Curve |
| Single Phase |
Three Phase |
KW |
HP |
Suc. (mm) |
Del. (mm) |
m3/h |
Ltr/min |
in M |
|
MVI 112 |
1.1 |
1.5 |
25 |
25 |
0.4 - 2.8 |
6.67-46.68 |
110 - 55 |
|
|
MVI 114 |
1.5 |
2 |
25 |
25 |
0.4 - 2.8 |
6.67-46.68 |
135 - 70 |
|
|
MVI 118 |
1.85 |
2.5 |
25 |
25 |
0.4 - 2.8 |
6.67-46.68 |
170-90 |
|
|
MVI 212 |
1.85 |
2.5 |
25 |
25 |
0.8 - 3.6 |
13.34-60.01 |
125 - 70 |
|
|
MVI 214 |
2.2 |
3 |
25 |
25 |
0.4 - 4.8 |
6.67-80.02 |
150 - 40 |
|
|
MVI 407 |
1.5 |
2 |
32 |
32 |
1.0 - 7.5 |
16.67-125.03 |
73 - 26 |
|
|
MVI 412 |
3 |
4 |
32 |
32 |
1.0 - 7.5 |
16.67-125.03 |
130 - 55 |
|
|
MVI 414 |
3 |
4 |
32 |
32 |
1.0 - 7.5 |
16.67-125.03 |
152- 60 |
|
|
MVI 417 |
3.7 |
5 |
32 |
32 |
1.0 - 7.5 |
16.67-125.03 |
188 - 80 |
|
|
MVI 419 |
4 |
5.5 |
32 |
32 |
1.0 - 7.5 |
16.67-125.03 |
210 - 90 |
|
|
MVI 807 |
5.5 |
7.5 |
40 |
40 |
2.0 - 18.0 |
33.34-300.06 |
120 - 30 |
|
|
MVI 808 |
3 |
4 |
40 |
40 |
2.0-13.0 |
33.34-216.71 |
95-46 |
|
|
MVI 812 |
5.5 |
7.5 |
40 |
40 |
2.0-13.0 |
33.34-216.71 |
140 - 70 |
|
|
MVI 814 |
5.5 |
7.5 |
40 |
40 |
2.0-13.0 |
33.34-216.71 |
162 - 80 |
|
|
MVI 817 |
7.5 |
10 |
40 |
40 |
2.0-13.0 |
33.34-216.71 |
200- 105 |
|
|
MVI 819 |
7.5 |
10 |
40 |
40 |
2.0-13.0 |
33.34-216.71 |
200-119 |
|
|
MVI 1605 |
5.5 |
7.5 |
50 |
50 |
4.0-24.0 |
66.68-400.08 |
84-30 |
|
|
MVI 1607 |
7.5 |
10 |
50 |
50 |
3.0 - 25.0 |
50.01-416.75 |
118 - 38 |
|
|
MVI 1612 |
15 |
20 |
50 |
50 |
3.0 - 25.0 |
50.01-416.75 |
200-60 |
|
|
MVI 3203 |
5.5 |
7.5 |
65 |
65 |
6.0 - 45.0 |
100.02-750.15 |
52 -12 |
|
|
MVI 3204 |
7.5 |
10 |
65 |
65 |
6.0 - 45.0 |
100.02-750.15 |
70 - 20 |
|
|
MVI 5204 |
11 |
15 |
80 |
80 |
15.0-65.0 |
250.05-1083.55 |
75-30 |
|
|
MVI 7002 |
11 |
15 |
100 |
100 |
20.0-95.0 |
333.4-1583.64 |
38-13 |
|
|
MVI 7003/2 |
15 |
20 |
100 |
100 |
20.0-95.0 |
333.4-1583.65 |
70-35 |
|
|
MVI 9503 |
22 |
30 |
100 |
100 |
20.0-130.0 |
333.4-2167.1 |
76-35 |
|
|
MVI 9502 |
15 |
20 |
100 |
100 |
20.0-130.0 |
333.4-2167.1 |
53-24 |
|
