Duty Parameter
- Capacity: Up to 2500 m3/hr
- Head: Up to 580 m
- Temp: up to 40°C
- Delivery Size: DN 25-DN 400
Design Features

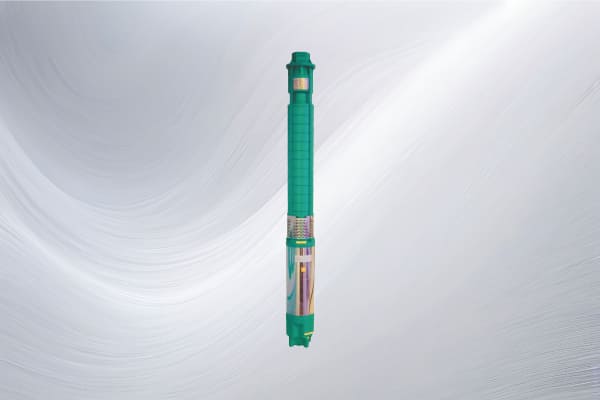

- Submersible multistage pumps
- Integrated non return valve
- Up to 20 starts per hour
- Max. Sand content 50 g/m3
- Protection Class: IP 68
-
-
-
Applications
- Water supply from borehole
- Sprinkler and Irrigation
- Pressure Boosting
- Process Water supply
Material of Construction
- Casing – Grey Cast Iron, SS
- Impeller – Grey Cast Iron, Bronze, SS and Duplex SS
Brand
| Model |
Power |
NRV Dia |
Max Pump Dia |
Capacity |
Head |
Data Curve |
| Single Phase |
Three Phase |
KW |
HP |
m3/h |
Ltr/min |
in M |
| WBW4E-15/07/40/1-220 |
|
1.1 KW |
1.5 |
40 MM |
98 |
2.1 ~ 7.8 |
35-130 |
51 ~ 17 |
|
|
WBW 4F - 40/ 16 |
3.0 Kw |
4 |
40 MM |
98 |
3 ~ 9 |
50-150 |
115 ~ 35 |
|
|
WBW 4F - 50/ 20 |
3.7 kW |
5 |
40 MM |
98 |
3 ~ 9 |
50-150 |
139 ~ 40 |
|
|
WBW 6C - 75/ 12 |
5.5 kW |
7.5 |
50 MM |
146 |
4.5~18 |
75-300 |
114 ~36 |
|
|
WBW 6C - 100/ 16 |
7.5 kW |
10 |
50 MM |
146 |
4.5 ~ 18 |
75-301 |
152 ~ 48 |
|
|
WBW 6 G - 75/08 |
5.5 kW |
7.5 |
65 MM |
146 |
21 ~ 43 |
350-715 |
67 ~ 10 |
|
|
WBW 7D- 100/03 |
7.5 kW |
10 |
100 MM |
175 |
30 ~ 102 |
500-1700 |
50 ~ 20 |
|
|
WBW 7F - 150/03 |
11 KW |
15 |
100 MM |
175 |
30 ~ 102 |
500-1701 |
54 ~ 24 |
|
|
WBW 7 F -200/04 |
15 KW |
20 |
100 MM |
175 |
30 ~ 102 |
500-1702 |
72 ~ 32 |
|
|
WBW 8 I - 250/05 |
18.5 KW |
25 |
100 MM |
200 |
48 ~ 138 |
800-2300 |
90 ~ 25 |
|
