- Capacity: Up to 2500 m3/hr
- Head: Up to 580 m
- Temp: up to 400 C
- Delivery Size: DN 25-DN 400

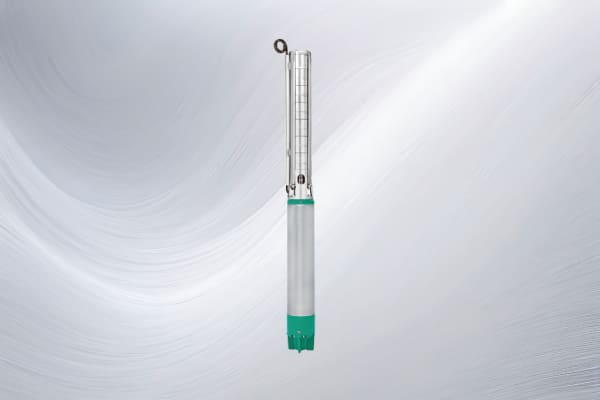

- Submersible multistage pumps
- Integrated non return valve
- Up to 20 starts per hour
- Max. Sand content 50 g/m3
- Protection Class: IP 68
- Water supply from borehole
- Sprilking and Irrigation
- Pressure Boosting
- Process Water supply
- Casing – Grey Cast Iron, SS
- Impeller – Grey Cast Iron, Bronze, SS and Duplex SS
Wilo
| Model | Power | NRV Dia | Max Pump Dia | Capacity | Head | Data Curve | |||
| Single Phase | Three Phase | KW | HP | m3/h | Ltr/min | in M | |||
| Xiro SPI 6.45-5A1/X16-7.5-B1 | 7.5 Kw | 10.0 HP | 4"/100 MM | 150 MM | 15-58 | 250-967 | 65-30 |
 |
|
| Xiro SPI 6.60-6A1/X16-11-B1 | 11 KW | 15.0 HP | 4" /100 MM | 150 MM | 20-75 | 333-1250 | 75-45 |
|
|
| Xiro SPI 7.75- 4-A1/X16-15-B1 | 15 KW | 20 HP | 5"/ 125 MM | 150 MM | 25-95 | 417-1584 | 90-45 |
|
|
| Xiro SPI 7.75- 5-A1/X16-18.5-B1 | 18.5 kW | 25.0 HP | 5"/125 MM | 150 MM | 25-95 | 417-1585 | 90-45 |
|
|
| Xiro SPI 8.110-3-A1/X16-22-B1 | 22 KW | 30 HP | 6"/150 MM | 150 MM | 35-135 | 584-2251 | 75-40 |
|
|
| Xiro SPI 8.160-3-A1/X16-30-B1 | 30 KW | 40 HP | 6"/150 MM | 150 MM | 45-200 | 750-3334 | 70-30 |
|
|
