Application Limits
- Suction head up to 8m
- Liquid temperature up to +60℃
- Ambient temperature up to +40℃
- Max. Working pressure: 6bar
- Voltage fluctuation should not exceed 10% of rated value.
- pH: 6.5 to 8.5
Applications Fields
- Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
- Widely used in industrial and urban water supply, high-rise building boosting, fire protection system, breeding
-
-
-
Feature

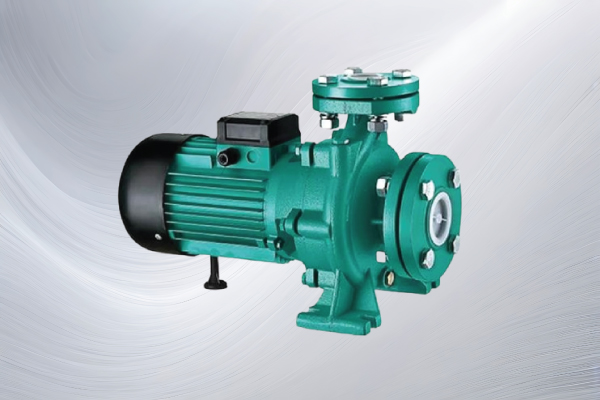

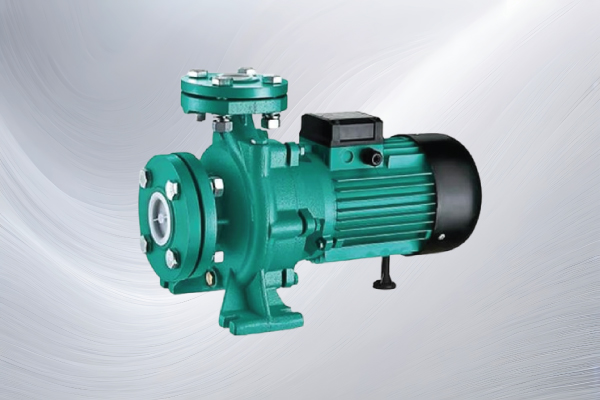

- Standard flange centrifugal pump
- Large flow, high efficiency
Performance Range
- Max. Flow: 39m3/h
- Max. Head: 52m
Motor
- Three-Phase 380V/50Hz
- Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
- Protection: IP44
- Insulation: Class B
Optional Available on Request
- Motor whose insulation class is F
- NSK bearing
| Model |
Power |
Capacity |
2 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
| 380V, 50Hz, 3P |
KW |
HP |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
| DPM32-160-1.5 |
1.5 |
2 |
Head (Meter) |
22 |
21 |
20.5 |
20 |
19.5 |
19 |
18.5 |
18 |
17 |
| DPM32-160-2.2 |
2.2 |
3 |
29 |
28 |
28 |
27.5 |
27 |
27 |
26 |
24 |
20 |
| DPM32-160-3 |
3 |
4 |
35 |
34.5 |
34.5 |
34 |
34 |
33.5 |
33 |
31 |
29 |
| DPM 32-200-4 |
4 |
5.5 |
45 |
44 |
43 |
43.5 |
43 |
42 |
39 |
37 |
33 |
| DPM 32-200-5.5 |
5.5 |
7.5 |
57 |
56.5 |
56 |
55.5 |
54 |
53 |
51 |
48 |
43 |
| DPM 32-200-7.5 |
7.5 |
10 |
70 |
71 |
69 |
68 |
67 |
66 |
63 |
60 |
55 |
| Model |
Power |
Capacity |
4 |
8 |
12 |
16 |
20 |
24 |
28 |
32 |
36 |
| 380V, 50Hz, 3P |
KW |
HP |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
| DPM40-125-1.5 |
1.5 |
2 |
Head (Meter) |
17 |
17 |
16 |
15 |
- |
- |
- |
- |
- |
| DPM40-125-2.2 |
2.2 |
3 |
23 |
22 |
21 |
19.5 |
20 |
- |
- |
- |
- |
| DPM40-160-3 |
3 |
4 |
28 |
27.5 |
27 |
26.5 |
25 |
- |
- |
- |
- |
| DPM40-160-4 |
4 |
5.5 |
35.5 |
35 |
34.5 |
34 |
34 |
33 |
- |
- |
- |
| DPM40-200-5.5 |
5.5 |
7.5 |
42 |
41.5 |
41.5 |
41 |
40 |
39 |
36 |
- |
- |
| DPM40-200-7.5 |
7.5 |
10 |
52 |
51 |
50.5 |
50 |
49.5 |
49 |
47 |
43 |
36 |
| Model |
Power |
Capacity |
4 |
8 |
12 |
16 |
20 |
24 |
28 |
32 |
36 |
| 380V, 50Hz, 3P |
KW |
HP |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
m 3 / h |
| DPM80-125A-7.5 |
7.5 |
10 |
Head (Meter) |
27.5 |
27 |
26 |
25.5 |
25 |
23.5 |
22.5 |
- |
- |
Related Products

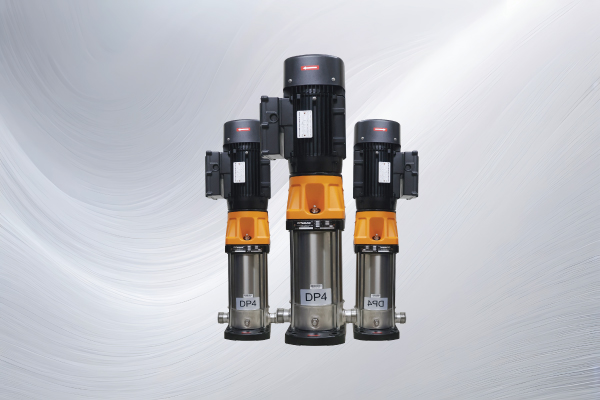

DP Series Dynamic Pump

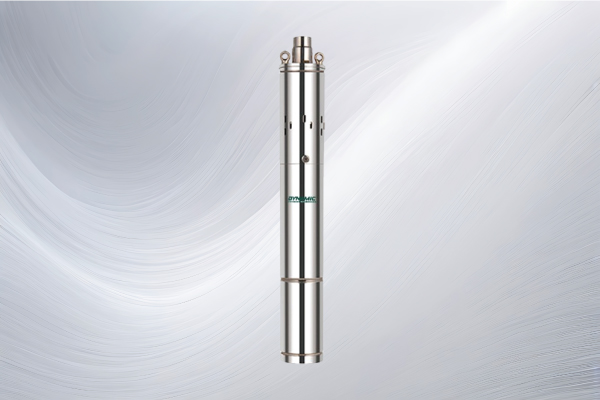

Dynamic Submersible pump 2QGDA
