Dynamic Submersible pump 2QGDA

Dynamic Submersible pump 2QGDA

Series Submersible Screw Pumps

Pump

  • Capacity from 1.0 to 2(m³/h)
  • Total head from 50 to 160(m)

Motor

  • Adopted the NEWA standard
  • Power:0.25 to 11 kW (Single phase)
  • Insulation class:8
  • Protection grade: IP 68
  • Maximum Diameter: Φ 55mm
  • Highest temperature of liquid :35ºC

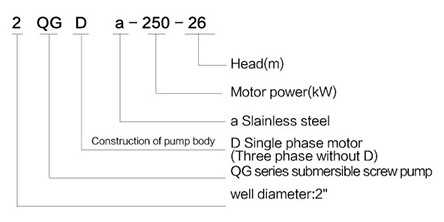

Dynamic Submersible pump model 2QGDA

MODEL POWER Capacity and Head Voltage Max. Dia pipe Dia
TYPE Single Phase KW HP m3/h m V mm inch
QGDa 0.5-26-0-0.25 0.25 0.333 1 60 220 55 ½
