Series Submersible Screw Pumps
Pump
- Capacity from 1.0 to 2(m³/h)
- Total head from 50 to 160(m)
Motor
- Adopted the NEWA standard
- Power:0.37 to 11 kW (Single phase)
- Insulation class:B
- Protection grade: IP 68
- Maximum Diameter: Φ 94.5mm
- Highest temperature of liquid :35ºC

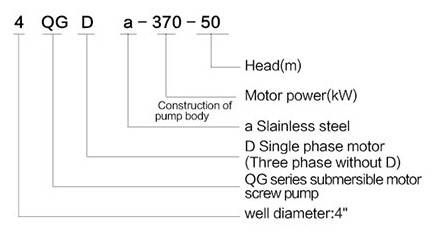

| MODEL | POWER | Capacity and Head | Voltage | Max. Dia | pipe Dia | Dimension | |||
| TYPE | size Q_H_kW | KW | HP | m3/h | m | V | mm | inch | mm |
| QGDa | 1-50-0.25 | 0.25 | 0.33 | 1 | 50 | 220/380 | 102 | 1 | 510x 140x165 |
| 1.2-50-0.37 | 0.37 | 0.5 | 1.2 | 50 | 220/380 | 102 | 1 | 510x 140x165 | |
| 1.8-50-0.50 | 0.5 | 0.7 | 1.8 | 50 | 220/380 | 102 | 1 | 510x 140x165 | |
| 2.5-50-0.55 | 0.55 | 0.75 | 2.5 | 50 | 220/380 | 102 | 1 | 565x150x190 | |
| 1.2-100-0.55 | 1.1 | 1.2 | 1.2 | 100 | 220/380 | 102 | 1 | 565x150x190 | |
