Technical Data
Pump:
- Qmax:2.8(m3/11)
- Capacity from0.75 to 1.5(m3/h)
- Total head from 138 to 38(m)
Motor:
- Power:0.25 to 1.5kw(Single phase)
- Insulation class:8
- Protection grade:IP68
- Maximum diameter: Φ 83mm
- Highest temperature of liquid: 35o C

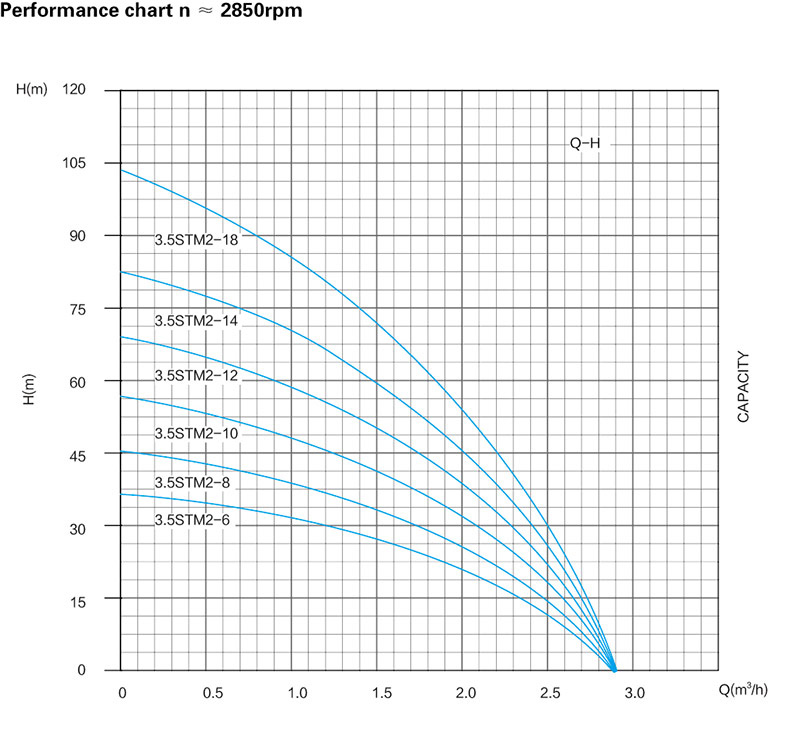

| MODEL | POWER | Capacity and Head | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SINGLE | THREE | KW | HP | m3/h | 0 | 0.5 | 0.8 | 1 | 1.5 | 2.8 |
| I/min | 0 | 8 | 13 | 17 | 25 | 43 | ||||
| 3.5STM2-6 | 0.37 | 0.5 | Head(m) | 35 | 30 | 28 | 26 | 24 | 20 | |
| 3.5STM2-8 | 0.55 | 0.75 | 46 | 41 | 36 | 32 | 28 | 22 | ||
| 3.5STM2-10 | 3.5STM2-10 | 0.75 | 1 | 58 | 53 | 46 | 40 | 33 | 28 | |
| 3.5STM2-12 | 3.5STM2-12 | 1.1 | 1.5 | 70 | 42 | 54 | 48 | 40 | 34 | |
| 3.5STM2-14 | 3.5STM2-14 | 1.1 | 1.5 | 81 | 76 | 70 | 63 | 56 | 40 | |
| 3.5STM2-18 | 3.5STM2-18 | 1.5 | 2 | 104 | 85 | 80 | 65 | 57 | 50 | |
