Technical Data
Pump/Motor
- Continuous service
- Qmax:3(m³/h)
- Insulation class: B
- Protection grade: IP 68
- Maximum diameter: Φ 75mm
- Highest temperature of liquid: 35ºC

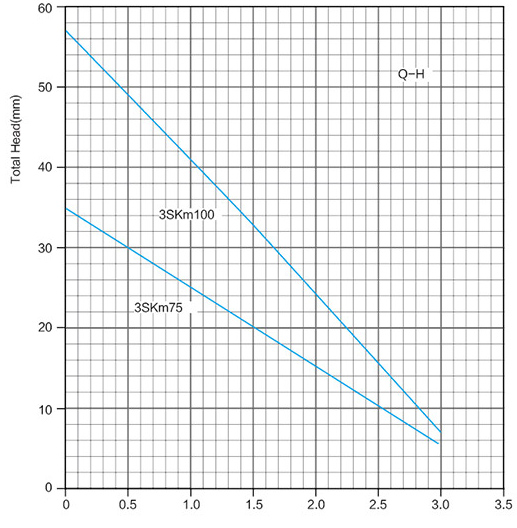

| MODEL | POWER | Capacity and Head | Length (mm) | |||||||||
| Single phase-220V-240V-50Hz | Three phase 380-415v-50Hz | KW | HP | m3/h | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | |
| I/min | 0 | 8.333 | 16.67 | 25 | 33.33 | 41.67 | 50 | |||||
| lmp.g.m | 0 | 1.8 | 3.6 | 5.4 | 7.2 | 9 | 11 | |||||
| 3SKm75 | 3SK75 | 0.55 | 0.733 | Head | 35 | 29 | 25 | 20 | 15 | 9.5 | 6 | 519 |
| 3SKm100 | 3SK100 | 0.75 | 1 | (m) | 57 | 48 | 40 | 32 | 25 | 17 | 7 | 589 |
