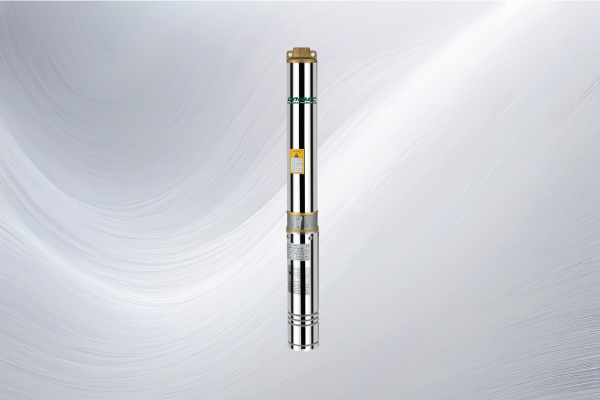

Technical Data
Identification Code
- 4STM2-6
- 4:Well diameter:4"
- ST: submersible pump model
- M:Single phase motor(three phase without M)
- 2:Capacity(m3/h)
- 6:Stage
Fields of Application:
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
Technical Data
- Suitable fluids
- Clear, free from solid or abrasive substances,
- Chemically neutral and close to the characteristics of water Performance
- Speed range:285Orpm
- Fluid temperature range:-10o -4OoC
- Max Working pressure:40bar
- Ambient Temperature
- Permissible up to 40oC
Power
- Single phase 1-240V/50Hz,
- three-phase: 380V-415V/50Hz
Motor
- Degree of protection: IP68
- Insulation class: B
- Construction Materials
- Casing both of pump and motor, pump shaft: stainless steel AISI304
- Outlet and Inlet: bronze
- Impeller and diffuser, non-return valve: thermoplastic resin PPO
Accessories
- Control switch, waterproof glue.

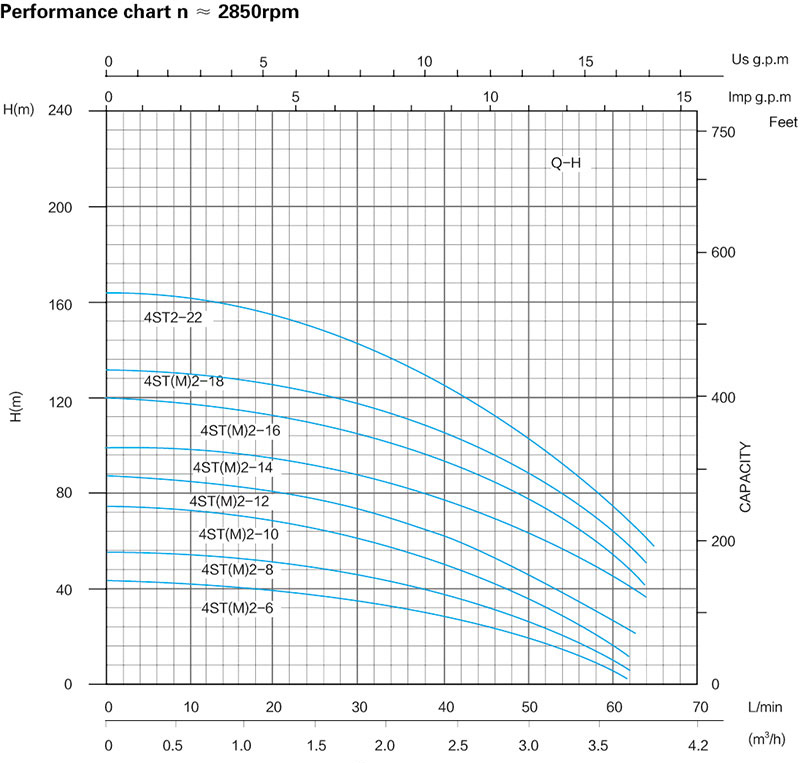

| MODEL | POWER | Capacity and Head | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SINGLE | THREE | KW | HP | m3/h | 0 | 0.6 | 0.8 | 1.2 | 1.8 | 3 | 3.3 | 3.9 |
| I/min | 0 | 10 | 15 | 20 | 30 | 50 | 54 | 65 | ||||
| 4STM2/6 | 4ST2/6 | 0.37 | 0.5 | Head(m) | 45 | 38 | 35 | 28 | 24 | 18 | 10 | 5 |
| 4STM2/8 | 4ST2/8 | 0.55 | 0.75 | 60 | 50 | 46 | 45 | 40 | 28 | 18 | 8 | |
| 4STM2/10 | 4ST2/10 | 0.75 | 1 | 75 | 65 | 61 | 55 | 46 | 26 | 26 | 16 | |
| 4STM2/12 | 4ST2/12 | 1.1 | 1.5 | 90 | 84 | 80 | 76 | 64 | 36 | 36 | 26 | |
| 4STM2/14 | 4ST2/14 | 1.1 | 1.5 | 105 | 100 | 90 | 80 | 75 | 70 | 60 | 38 | |
| 4STM2/16 | 4ST2/16 | 1.5 | 2 | 120 | 110 | 95 | 85 | 73 | 70 | 63 | 41 | |
| 4STM2/18 | 4ST2/18 | 1.5 | 2 | 135 | 120 | 110 | 100 | 90 | 80 | 70 | 52 | |
| 4STM2/22 | 4ST2/22 | 2.2 | 3 | 165 | 150 | 140 | 130 | 120 | 105 | 90 | 63 | |
| 4STM2/30 | 4ST2/30 | 3 | 4 | 225 | 215 | 205 | 190 | 180 | 175 | 130 | 75 | |
| Model | DN | Dimensions(mm) | ||
| L1 | L(s) | L(T) | ||
| 4STM2-6 | 1 1/4″ | 371 | 739 | 724 |
| 4STM2-8 | 1 1/4″ | 420 | 843 | 828 |
| 4STM2-10 | 1 1/4″ | 470 | 753 | 933 |
| 4STM2-12 | 1 1/4″ | 558 | 1142 | 1102 |
| 4STM2-14 | 1 1/4″ | 608 | 1382 | 1322 |
| 4STM2-16 | 1 1/4″ | 707 | 1666 | 1591 |
| 4STM2-18 | 1 1/4″ | 845 | 1935 | |
| 4STM2-22 | 1 1/4″ | |||
