Technical Data
Working Conditions
- Water temperature up to 25
- Minimum internal diameter of well:102mm
- Maximum immersion depth:40m
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
Accessories
- Control switch, waterproof glue.
| Components | Material |
| Pump external casing | AISI 304 ss |
| Delivery casing | AISI 304 ss |
| Suction lantern | AISI 304 ss |
| Stage casing | AISI 304 ss Plastic.PPO |
| Impeller | AISI 304 ss Plasdc.PPO |
| Shaft | AISI 316 ss |
| Fitter | AISI 304 ss |
| weaning | AISI 304 ss |
| Motor external casing | AISI 304 ss |
| Former cover | Cast-Cu ASTM280 |
| Bottom support | Cast-Cu ASTM280 |
| Mechanical seal | Special seal for deep well(carbon-SIC/TC) |
| Shaft | RISE 316 ss-C1045 |
| Bearing | NSK.NTN.CU |
| Seal lubricant of | Oil for food machinery and pharmaceutical use. |
| MODEL | P2 | DELIVERY n~2850 l/min | ||||||||||
| 1~ 220V/240V |
3~ 380V/415V |
KW | HP | Q | m3/h | 0 | 4 | 8 | 12 | 14 | 16 | 24 |
| I/min | 0 | 67 | 133 | 200 | 233 | 267 | 400 | |||||
| 4STM16/4 | 4ST16/4 | 1.1 | 1.5 | Head(m) | 24 | 22 | 20 | 17 | 15 | 12 | 4 | |
| 4STM16/6 | 4ST16/6 | 1.5 | 2 | 36 | 33 | 29 | 25 | 22 | 19 | 7 | ||
| 4STM16/9 | 4ST16/9 | 2.2 | 3 | 54 | 50 | 44 | 38 | 34 | 28 | 10 | ||
| 4ST16/13 | 3 | 4 | 78 | 72 | 64 | 55 | 49 | 40 | 14 | |||
| 4ST16/15 | 4 | 5.5 | 90 | 83 | 74 | 63 | 56 | 47 | 17 | |||
| 4ST16/20 | 5.5 | 7.5 | 120 | 111 | 98 | 84 | 75 | 62 | 22 | |||

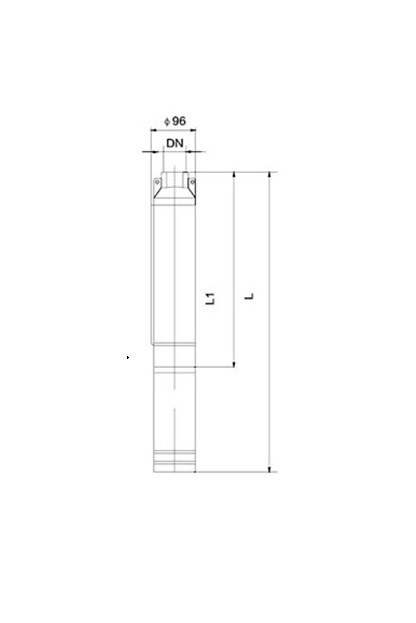

| MODEL | DN | DIMENSIONS(mm) Ll L(s) L(T) | ||
| 4ST(M)16-4 | 11/4 11/2 | 512 | 914 | 874 |
| 4ST(M)16-6 | 650 | 1071 | 1051 | |
| 4ST(M)16-9 | 857 | 1383 | 1308 | |
| 4ST16-13 | 1133 | 1613 | ||
| 4ST16-15 | 1258 | 1618 | ||
| 4ST16-20 | 1603 | 2203 | ||
