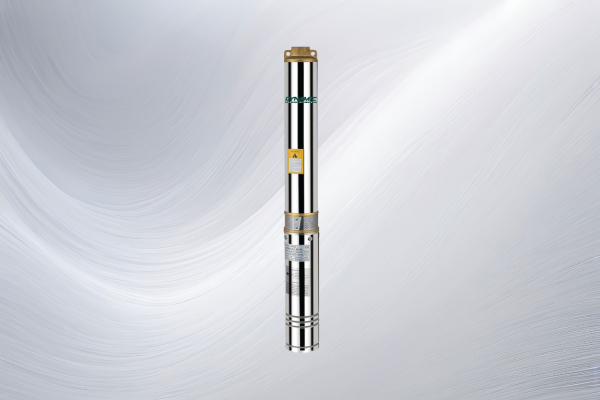

Technical Data
Pump
- Qmax:14.7(m3/h)
- Capacity from 6 to 10(m3/h)
- Total head from 224 to 10(m)
Motor
- Adopted the NEMA standard
- Power:0.55 to 2.2kW(Single phase)
- Insulation class: B
- Protection grade:IP68
- Maximum diameter: Φ 98mm
- Highest temperature of liquid:35ºC

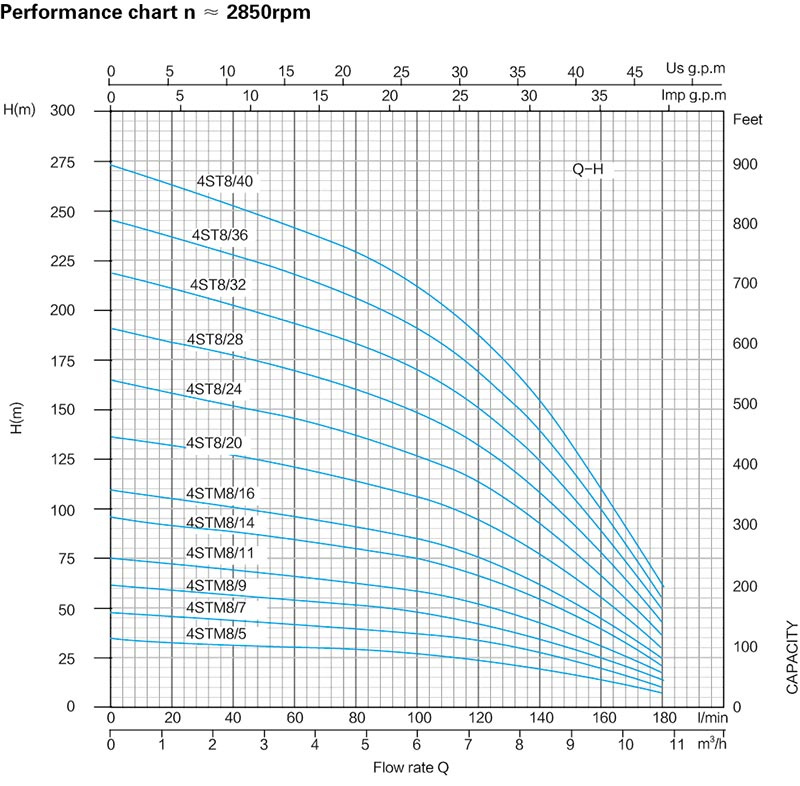

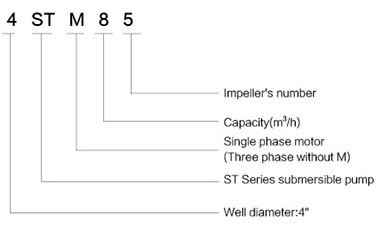

| MODEL | P2 | DELIVERY n~2850 l/min | |||||||||||||
| 1~ 220V/240V |
3~ 380V/415V |
KW | HP | Q | m3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| I/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | |||||
| 4STM8/5 | 4ST8/5 | 0.55 | 0.75 | Head(m) | 34 | 33 | 32 | 30 | 29 | 26 | 23 | 19 | 14 | 7 | |
| 4STM8/7 | 4ST8/7 | 0.75 | 1.1 | 48 | 46 | 44 | 42 | 40 | 37 | 33 | 27 | 19 | 10 | ||
| 4STM8/9 | 4ST8/9 | 1.1 | 1.5 | 61 | 59 | 57 | 54 | 51 | 48 | 42 | 35 | 25 | 13 | ||
| 4STM8/11 | 4ST8/11 | 1.5 | 2 | 75 | 72 | 70 | 67 | 63 | 58 | 52 | 42 | 30 | 17 | ||
| 4STM8/14 | 4ST8/14 | 2.2 | 3 | 96 | 92 | 89 | 85 | 80 | 74 | 66 | 54 | 38 | 21 | ||
| 4STM8/16 | 4ST8/16 | 2.2 | 3 | 109 | 105 | 101 | 97 | 91 | 82 | 75 | 62 | 44 | 24 | ||
| 4ST6/20 | 3 | 4 | 137 | 132 | 127 | 121 | 114 | 106 | 94 | 77 | 55 | 30 | |||
| 4ST6/24 | 4 | 5.5 | 164 | 158 | 152 | 145 | 137 | 128 | 113 | 92 | 66 | 36 | |||
| 4ST6/28 | 5.5 | 7.5 | 191 | 184 | 177 | 169 | 160 | 148 | 132 | 108 | 77 | 42 | |||
| 4ST6/32 | 5.5 | 7.5 | 218 | 210 | 202 | 194 | 183 | 170 | 150 | 123 | 88 | 48 | |||
| 4ST6/36 | 7.5 | 10 | 246 | 237 | 228 | 218 | 205 | 191 | 169 | 139 | 99 | 54 | |||
| 4ST6/4 | 7.5 | 10 | 273 | 263 | 253 | 242 | 228 | 212 | 188 | 154 | 110 | 60 | |||
| MODEL | DN | Dimensions | |||||
| Single phase 220-240V- 50Hz | Three phase 380-415V- 50Hz | Length(mm) | Weight(kg) | ||||
| L1 | L(s) | L(T) | G(S) | G(T) | |||
| 4STM8/5 | 4ST8/5 | 1 1/4″ / 1 1/2″ / 2″ | 434 | 761 | 746 | 12 | 11 |
| 4STM8/7 | 4ST8/7 | 1 1/4″ / 1 1/2″ / 2″ | 510 | 857 | 837 | 13 | 12 |
| 4STM8/9 | 4ST8/9 | 1 1/4″ / 1 1/2″ / 2″ | 586 | 973 | 933 | 16 | 14 |
| 4STM8/11 | 4ST8/11 | 1 1/4″ / 1 1/2″ / 2″ | 662 | 1109 | 1039 | 19 | 16 |
| 4STM8/14 | 4ST8/14 | 1 1/4″ / 1 1/2″ / 2″ | 776 | 1312 | 1213 | 24 | 20 |
| 4STM8/16 | 4ST8/16 | 1 1/4″ / 1 1/2″ / 2″ | 852 | 1388 | 1289 | 25 | 20 |
| – | 4ST8/20 | 1 1/4″ / 1 1/2″ / 2″ | 1036 | – | 1513 | – | 24 |
| – | 4ST8/24 | 1 1/4″ / 1 1/2″ / 2″ | 1188 | – | 1739 | – | 28 |
| – | 4ST8/28 | 1 1/4″ / 1 1/2″ / 2″ | 1340 | – | 1961 | – | 32 |
| – | 4ST8/32 | 1 1/4″ / 1 1/2″ / 2″ | 1492 | – | 2113 | – | 33 |
| – | 4ST8/36 | 1 1/4″ / 1 1/2″ / 2″ | 1644 | – | 2355 | – | 38 |
| – | 4ST6/40 | 1 1/4″ / 1 1/2″ / 2″ | 1827 | – | 2538 | – | 40 |
