Technical Data
MAIN USES
For4″ wells. Pumping clear water in to: Detached houses-Country house and farm-Cottages. Moving water in fountains. Rain irrigation. Feeding pressure systems. Filling and emptying tanks.
CONSTRUCTION FEATURES
Shaft, jacket, and hydraulics in stainless steel. Brass impeller. Built-in non-return valve. Thermoplastic parts. Oil-cooled motor with compensating diaphragm. Graphite mechanical seal protected by sand-proof ring. the pump parts are hon-toxic and non-polluting.

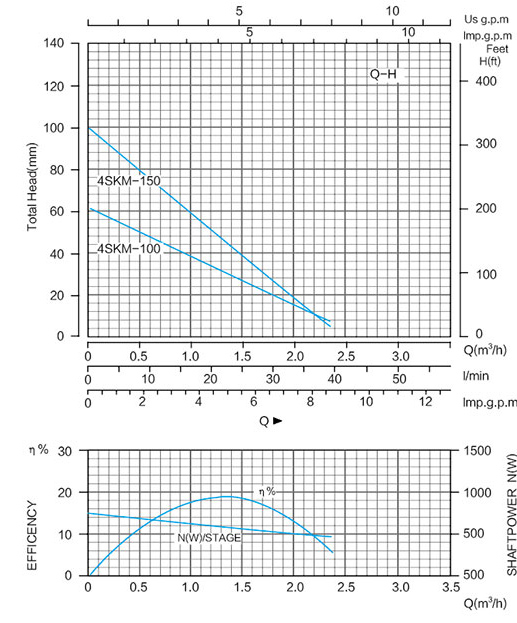

| MODEL | POWER | Capacity and Head | ||||||||
| Single phase-220V-240V-50Hz | Three phase 380-415v-50Hz | KW | HP | m3/h | 0 | 0.5 | 1 | 1.5 | 2 | 2.4 |
| I/min | 0 | 8.333 | 16.67 | 25 | 33.33 | 40 | ||||
| 4SKM-100 | 4SKM-100 | 0.75 | 1 | Head | 61 | 50 | 38 | 27 | 15 | 4 |
| 4SKM-150 | 4SKM-150 | 1.1 | 1.467 | (m) | 99 | 79 | 59 | 39 | 19 | 4 |
| 4SVM-100 | 4SVM-100 | 0.75 | 1 | SKM | 61 | 50 | 38 | 27 | 15 | 4 |
