Technical Data
Identification Code

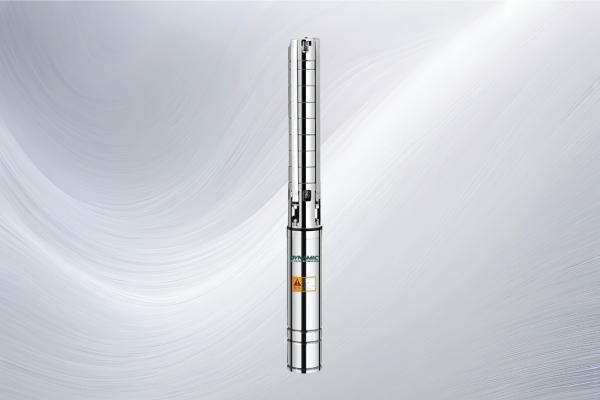

- 4SM2-8F
- 4:Well diameter:4"
- S:submersible pump model
- M:Single phase motor(three phase without M)
- 2:Capacity(m3/h)
- 8:Stage
- F:Motor filled with oil
Field of Applications
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
Technical Data
- Suitable fluids
- Clear, free from solid or abrasive substances
- Chemically neutral and close to the characteristics of water Performance
- Speed range:2900rpm
- Fluid temperature range:-10ÂșC ~ 40ÂșC
- Max. Working pressure:50 bar
- Ambient Temperature
- Permissible up to 40ÂșC
- Power: Single phase:1-240V/50Hz,60Hz Three-phase:380V-415V/50Hz,60Hz
Features
- Good-looking appearance and all the fluid-passing components of both the submerged pump and the submerged motor are made of stainless steel.
- Low weight and convenient in movement and installation High efficiency, save electricity.
- Provided with non-return valve to avoid damage due to back-flow of water at shutd of pump or water hammer affecting the pump
- The liquid inlet is fixed with a filter screen to prevent solid grain of a given size from entrance.
Motor
- Degree of protection:IP68
- Insulation class: B
- Construction Materials
- Casing both of pump and motor, pump shaft: stainless steel AlS1304
- Impeller and diffuser: stainless steel
Accessories
- Control switch, waterproof glue.

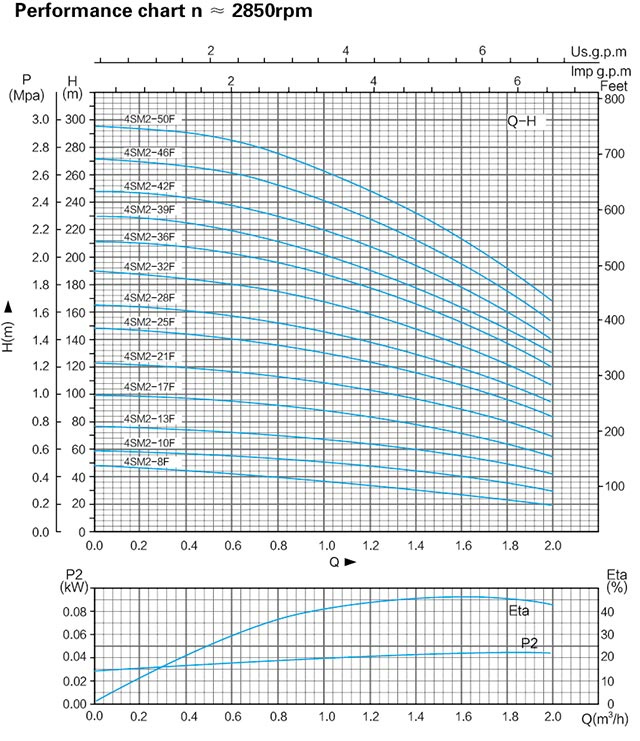

| MODEL | POWER | Capacity and Head | ||||||||
| 50Hz | KW | m3/h | 0.4 | 0.8 | 1.2 | 1.6 | 2 | 2.4 | 2.8 | 3 |
| I/min | 6.667 | 13.33 | 20 | 26.67 | 33.33 | 40 | 46.67 | 50 | ||
| 4SM2-8F | 0.37 | Head | 47 | 43 | 40 | 37 | 33 | 30 | 26 | 23 |
| 4SM2-10F | 0.55 | (m) | 59 | 54 | 50 | 46 | 42 | 38 | 32 | 28 |
| 4SM2-13F | 0.75 | 76 | 70 | 65 | 60 | 54 | 50 | 42 | 37 | |
| 4SM2-17F | 1.1 | 100 | 92 | 85 | 78 | 71 | 65 | 55 | 48 | |
| 4SM2-21F | 1.5 | 124 | 114 | 105 | 96 | 88 | 80 | 67 | 59 | |
| 4SM2-25F | 2.2 | 148 | 135 | 125 | 115 | 105 | 95 | 80 | 70 | |
| 4SM2-28F | 2.2 | 165 | 151 | 140 | 129 | 117 | 106 | 90 | 79 | |
| 4SM2-32F | 3 | 190 | 173 | 160 | 147 | 134 | 122 | 103 | 90 | |
| 4SM2-36F | 3 | 213 | 195 | 180 | 165 | 151 | 137 | 115 | 101 | |
| 4SM2-39F | 3 | 230 | 211 | 195 | 180 | 163 | 148 | 125 | 110 | |
| 4SM2-42F | 4 | 248 | 227 | 210 | 193 | 176 | 160 | 135 | 118 | |
| 4SM2-46F | 4 | 272 | 248 | 230 | 211 | 196 | 175 | 147 | 130 | |
| 4SM2-50F | 5 | 295 | 270 | 250 | 230 | 210 | 190 | 160 | 140 | |
