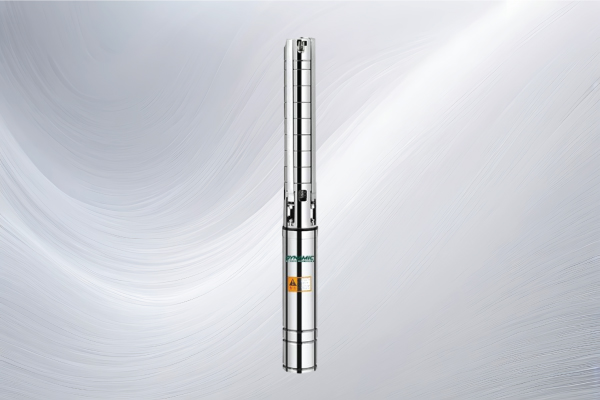

Technical Data
Identification Code
- 4SM5-4F
- 4:Well diameter:4"
- S:submersible pump model
- M:Single phase motor(three phase without M)
- 2:Capacity(m3/h)
- 8:Stage
- F:Motor filled with oil
Field of Applications
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
Technical Data
- Suitable fluids
- Clear, free from solid or abrasive substances
- Chemically neutral and close to the characteristics of water Performance
- Speed range:2900rpm
- Fluid temperature range:-10ÂșC ~ 40ÂșC
- Max. Working pressure:50 bar
- Ambient Temperature
- Permissible up to 40ÂșC
- Power: Single phase:1-240V/50Hz,60Hz Three-phase:380V-415V/50Hz,60Hz
Features
- Good-looking appearance and all the fluid-passing components of both the submerged pump and the submerged motor are made of stainless steel.
- Low weight and convenient in movement and installation High efficiency, save electricity.
- Provided with non-return valve to avoid damage due to back-flow of water at shutd of pump or water hammer affecting the pump
- The liquid inlet is fixed with a filter screen to prevent solid grain of a given size from entrance.
Motor
- Degree of protection:IP68
- Insulation class: B
- Construction Materials
- Casing both of pump and motor, pump shaft: stainless steel AlS1304
- Impeller and diffuser: stainless steel
Accessories
- Control switch, waterproof glue.

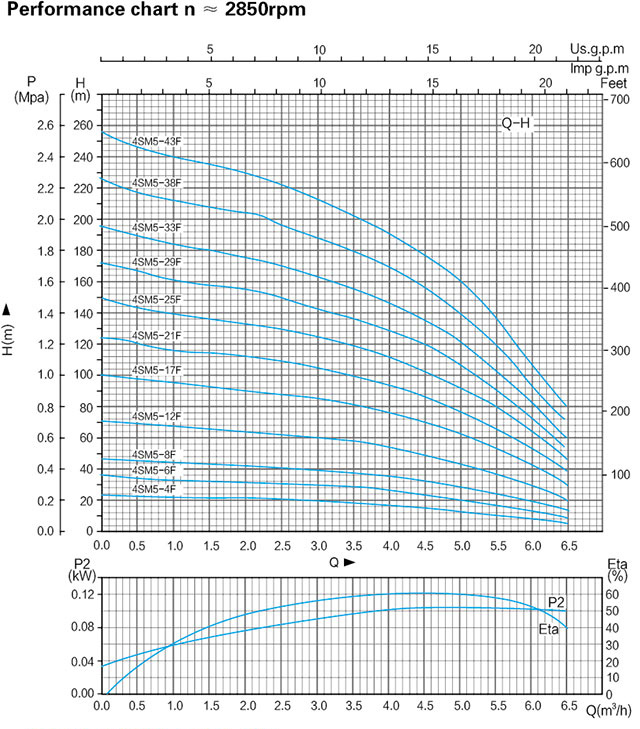

| MODEL | POWER | Capacity and Head | ||||||||||
| Three phase 380-415v-50Hz | KW | HP | m3/h | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 5 | 6.6 |
| I/min | 42 | 50 | 58 | 67 | 75 | 83 | 91.7 | 83 | 110 | |||
| 4SM5-4F | 0.37 | 0.5 | Head | 21 | 20 | 19 | 18 | 17 | 15 | 13 | 10 | 8 |
| 4SM5-6F | 0.55 | 0.7 | (m) | 31 | 30 | 28 | 27 | 25 | 22 | 19 | 15 | 11 |
| 4SM5-8F | 0.75 | 1 | 41 | 40 | 38 | 36 | 33 | 30 | 25 | 20 | 15 | |
| 4SM5-12F | 1.1 | 1.5 | 62 | 59 | 57 | 54 | 50 | 45 | 38 | 30 | 23 | |
| 4SM5-17F | 1.5 | 2 | 88 | 84 | 80 | 76 | 71 | 64 | 54 | 43 | 32 | |
| 4SM5-21F | 2.2 | 3 | 109 | 104 | 99 | 94 | 87 | 79 | 67 | 53 | 39 | |
| 4SM5-25F | 2.2 | 3 | 129 | 124 | 118 | 112 | 104 | 94 | 80 | 64 | 47 | |
| 4SM5-29F | 3 | 4 | 150 | 144 | 137 | 130 | 120 | 108 | 92 | 74 | 55 | |
| 4SM5-33F | 3 | 4 | 171 | 163 | 156 | 148 | 137 | 123 | 105 | 84 | 62 | |
| 4SM5-38F | 4 | 5.5 | 197 | 188 | 178 | 170 | 158 | 141 | 121 | 97 | 71 | |
| 4SM5-43F | 4 | 5.5 | 223 | 213 | 203 | 193 | 179 | 161 | 137 | 109 | 81 | |
