Technical Data
Identification Code
- 4SM8-5F
- 4:Well diameter:4"
- S:submersible pump model
- M:Single phase motor(three phase without M)
- 2:Capacity(m3/h)
- 8:Stage
- F:Motor filled with oil
Field of Applications
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
Technical Data
- Suitable fluids
- Clear, free from solid or abrasive substances
- Chemically neutral and close to the characteristics of water Performance
- Speed range:2900rpm
- Fluid temperature range:-10ÂșC ~ 40ÂșC
- Max. Working pressure:50 bar
- Ambient Temperature
- Permissible up to 40ÂșC
- Power: Single phase:1-240V/50Hz,60Hz Three-phase:380V-415V/50Hz,60Hz
Features
- Good-looking appearance and all the fluid-passing components of both the submerged pump and the submerged motor are made of stainless steel.
- Low weight and convenient in movement and installation High efficiency, save electricity.
- Provided with non-return valve to avoid damage due to back-flow of water at shutd of pump or water hammer affecting the pump
- The liquid inlet is fixed with a filter screen to prevent solid grain of a given size from entrance.
Motor
- Degree of protection:IP68
- Insulation class: B
- Construction Materials
- Casing both of pump and motor, pump shaft: stainless steel AlS1304
- Impeller and diffuser: stainless steel
Accessories
- Control switch, waterproof glue.

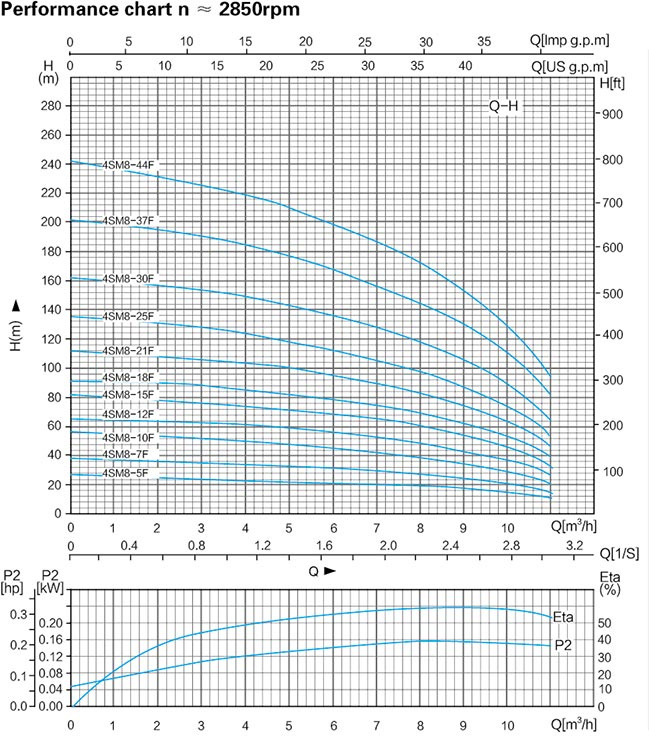

| MODEL | POWER | Capacity and Head | |||||||||||
| Single phase 220-240V-50Hz | KW | HP | m3/h | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| I/min | 33.33 | 50 | 66.67 | 83.33 | 100 | 116.7 | 133.3 | 150 | 166.7 | 183.3 | |||
| 4SM8-5F | 0.75 | 1 | Head | 27 | 26 | 24 | 23 | 22 | 21 | 19 | 17 | 14 | 10 |
| 4SM8-7F | 1.1 | 1.467 | (m) | 38 | 36 | 34 | 33 | 31 | 29 | 27 | 24 | 20 | 14 |
| 4SM8-10F | 1.5 | 2 | 54 | 52 | 50 | 47 | 45 | 42 | 39 | 35 | 29 | 21 | |
| 4SM8-12F | 2.2 | 3 | 65 | 62 | 60 | 57 | 54 | 51 | 47 | 42 | 35 | 26 | |
| 4SM8-15F | 2.2 | 3 | 81 | 77 | 74 | 71 | 68 | 64 | 59 | 53 | 44 | 33 | |
| 4SM8-18F | 3 | 4 | 95 | 93 | 89 | 86 | 81 | 77 | 71 | 63 | 53 | 40 | |
| 4SM8-21F | 4 | 5.5 | 112 | 108 | 104 | 100 | 95 | 90 | 83 | 74 | 62 | 47 | |
| 4SM8-25F | 4 | 5.5 | 136 | 129 | 124 | 119 | 113 | 108 | 99 | 89 | 74 | 56 | |
| 4SM8-30F | 5.5 | 7.5 | 162 | 155 | 149 | 143 | 136 | 130 | 119 | 106 | 88 | 67 | |
| 4SM8-37F | 5.5 | 7.5 | 201 | 191 | 184 | 176 | 167 | 159 | 147 | 131 | 109 | 82 | |
| 4SM8-44F | 7.5 | 10 | 242 | 227 | 218 | 209 | 199 | 190 | 174 | 156 | 129 | 98 | |
