Technical Data
Motor
- Single phase motor: 0.37 to 2.2kW
- Speed:2850rpm
- Voltage:220V-240V-/50Hz
- Insulation class: B
- Protection grade: IP 58
- Highest temperature of liquid: 40ºC
- Maximum content of solid substance: 40gr/m

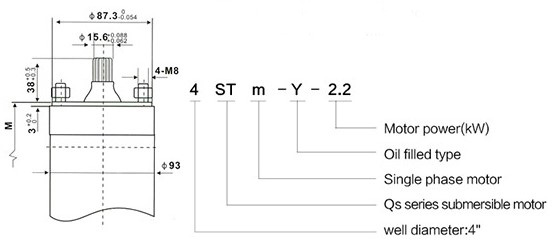

- Flange and coupling according to NEMA standard
- Motor casing: stainless AISI 304
- With sandproof cover/pressure balance
- membrane/mechanical seal with high performance.
| MODEL | POWER | capacitor | current | efficiency | dimension | ||
| Single phase-220V-240V-50Hz | KW | HP | µF | A | ƞ | mm | kg |
| 4STmY-0.37 | 0.37 | 0.5 | 18 | 2.9 | 55 | 331 | 8 |
| 4STmY-0.55 | 0.55 | 0.7 | 25 | 4.2 | 58 | 346 | 8.5 |
| 4STmY-0.75 | 9.8 | 1 | 30 | 5.4 | 61 | 371 | 9.5 |
| 4STmY-1.1 | 10.6 | 1.5 | 35 | 7.7 | 64 | 391 | 10.6 |
| 4STmY-1.5 | 11 | 2 | 45 | 9.7 | 67 | 416 | 11.6 |
| 4STmY-2.2 | 2.2 | 3 | 70 | 15.6 | 68 | 114 | 12.6 |
