Technical Data
Pump
- Qmax: 20(m³/h)
- Capacity from 8 to 12(m³/h)
- Total head from 210 to 44(m)
Motor
- Power: 3 to 11kW (Single Phase)
- Insulation class: B
- Protection grade: IP58
- Maximum diameter: Φ 125mm
- Height temperature of liquid: 35ºC

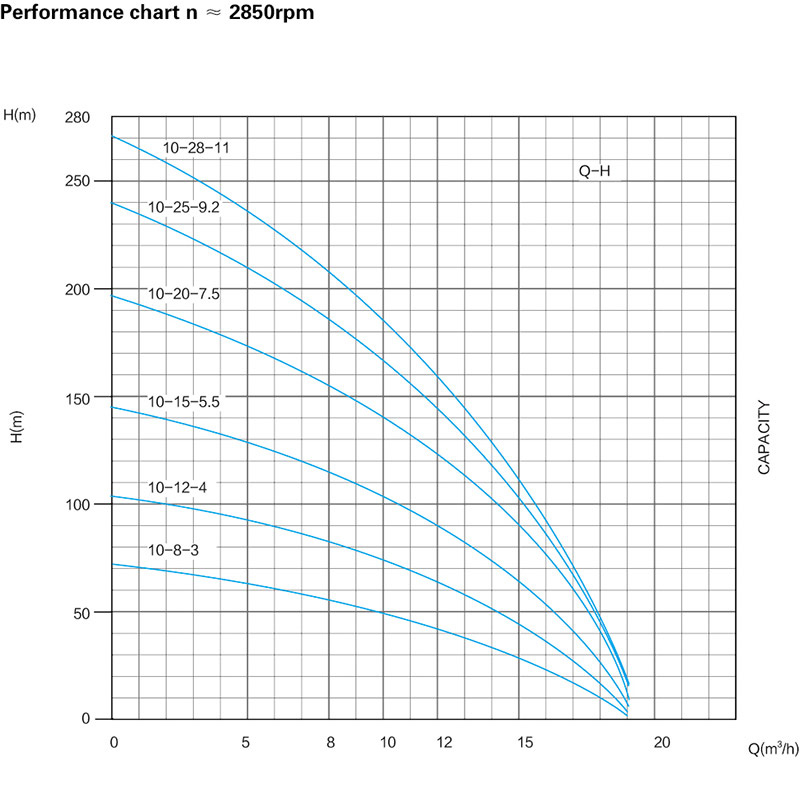

| MODEL | POWER | Capacity and Head | |||||||
| Three Phase 380-415-50 Hz | kW | HP | m3/h | 0 | 5 | 8 | 10 | 12 | 15 |
| I/min | 0 | 83 | 133 | 167 | 200 | 250 | |||
| 5SR10-8 | 3 | 4 | Head(m) | 73 | 65 | 57 | 50 | 44 | 31 |
| 5SR10-12 | 4 | 5.5 | 104 | 93 | 81 | 70 | 62 | 45 | |
| 5SR10-15 | 5.5 | 7.5 | 147 | 130 | 113 | 100 | 87 | 62 | |
| 5SR10-20 | 7.5 | 10 | 197 | 176 | 154 | 135 | 118 | 85 | |
| 5SR10-25 | 9.2 | 12.5 | 239 | 213 | 186 | 165 | 143 | 102 | |
| 5SR10-28 | 11 | 15 | 270 | 240 | 210 | 185 | 160 | 115 | |
