Technical Data
Applications
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
Operating conditions
- Maximum fluid temperature up to +50ºC
- Maximum sand content:0.25%
- Maximum immersion:100m.
- Minimum well diameter:6"
Motor and Pump
- Rewindable motor or Full obturated screen motor
- Three-phase:380V-415V/50Hz
- Direct start(1 cable)
- Star-delta start(2 cable)
- Equip with start control box or digital
- Auto-control box
- NEMA dimension standards
- Curve tolerance according to ISO 2548
Options on request
- Special mechanical seal
- Other voltages or frequency 60Hz
Warranty: 1 year
- (according to our general sales conditions).
| MODEL | POWER | DELIVERY n~2850l/min | |||||||||||||
| 3~ 380V415V |
KW | HP | m3/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 36 |
| I/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |||
| 6SP30-5A | 5.5 | 7.5 | Head(m) | 57 | 56 | 56 | 54 | 53 | 51 | 49 | 46 | 43 | 40 | 36 | 26 |
| 6SP30-7A | 7.5 | 10 | 79 | 79 | 78 | 76 | 74 | 71 | 68 | 65 | 60 | 56 | 50 | 37 | |
| 6SP30-9A | 9.2 | 12.5 | 102 | 101 | 100 | 98 | 95 | 92 | 88 | 83 | 78 | 72 | 65 | 47 | |
| 6SP30-12A | 11 | 15 | 136 | 135 | 135 | 131 | 127 | 122 | 117 | 111 | 104 | 96 | 87 | 63 | |
| 6SP30-14A | 12 | 17.5 | 159 | 158 | 156 | 153 | 148 | 142 | 137 | 129 | 121 | 112 | 101 | 73 | |
| 6SP30-15A | 15 | 20 | 181 | 180 | 178 | 174 | 170 | 163 | 157 | 148 | 138 | 128 | 115 | 84 | |
| 6SP30-19A | 18.5 | 25 | 215 | 214 | 212 | 207 | 202 | 193 | 186 | 176 | 164 | 152 | 137 | 100 | |
| 6SP30-23A | 22 | 30 | 260 | 259 | 156 | 251 | 244 | 234 | 225 | 213 | 199 | 184 | 166 | 121 | |
| 6SP30-28A | 26 | 35 | 317 | 315 | 312 | 305 | 297 | 285 | 274 | 259 | 242 | 224 | 202 | 147 | |

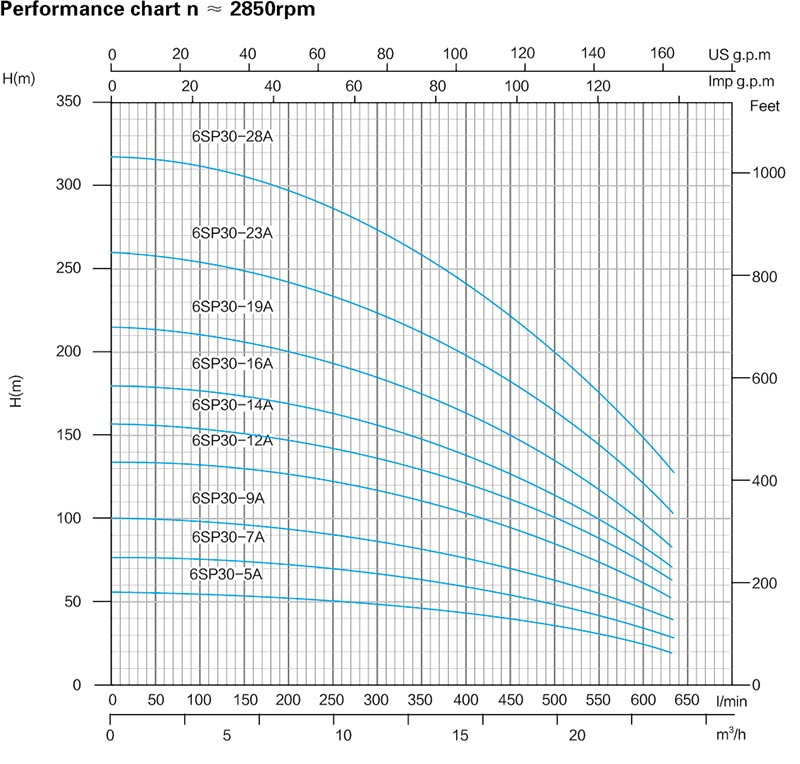

Dynamic Pump Performance Chart
