Technical Data
Applications
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
Operating conditions
- Maximum fluid temperature up to +50ºC
- Maximum sand content:0.25%
- Maximum immersion:100m.
- Minimum well diameter:6"
Motor and Pump
- Rewindable motor or Full obturated screen motor
- Three-phase:380V-415V/50Hz
- Direct start(1 cable)
- Star-delta start(2 cable)
- Equip with start control box or digital
- Auto-control box
- NEMA dimension standards
- Curve tolerance according to ISO 2548
Options on request
- Special mechanical seal
- Other voltages or frequency 60Hz
Warranty: 1 year
- (according to our general sales conditions).

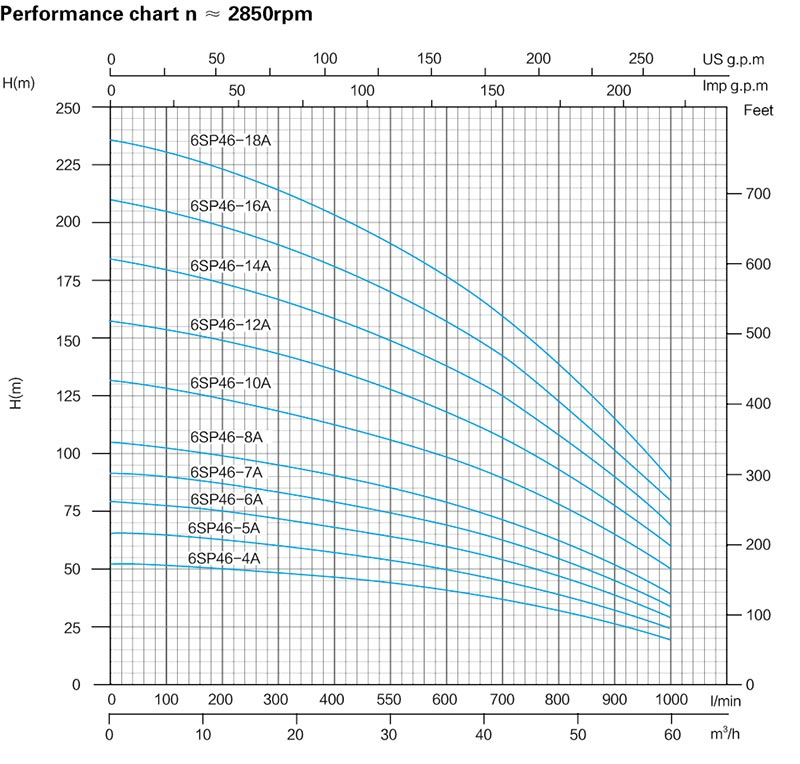

| MODEL | POWER | DELIVERY n~2850l/min | ||||||||||||
| 3~ 380V415V |
KW | HP | m3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| I/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | |||
| 6SP46-4A | 7.5 | 10 | Head(m) | 52 | 51 | 50 | 48 | 45 | 42 | 39 | 36 | 31 | 26 | 20 |
| 6SP46-5A | 7.5 | 10 | 66 | 64 | 62 | 59 | 56 | 53 | 49 | 44 | 38 | 32 | 24 | |
| 6SP46-6A | 9.2 | 12.5 | 79 | 77 | 74 | 71 | 68 | 64 | 59 | 53 | 46 | 38 | 29 | |
| 6SP46-7A | 11 | 15 | 90 | 90 | 87 | 83 | 79 | 74 | 69 | 62 | 54 | 45 | 34 | |
| 6SP46-8A | 13 | 17.5 | 105 | 103 | 99 | 95 | 90 | 85 | 79 | 71 | 61 | 51 | 39 | |
| 6SP46-10A | 15 | 20 | 131 | 128 | 124 | 119 | 113 | 106 | 98 | 89 | 77 | 64 | 49 | |
| 6SP46-12A | 18.5 | 25 | 157 | 124 | 149 | 143 | 135 | 127 | 118 | 107 | 92 | 77 | 59 | |
| 6SP46-14A | 22 | 30 | 184 | 180 | 173 | 166 | 158 | 149 | 138 | 124 | 107 | 89 | 68 | |
| 6SP46-16A | 26 | 35 | 210 | 205 | 198 | 190 | 180 | 170 | 157 | 142 | 123 | 102 | 78 | |
| 6SP46-18A | 30 | 40 | 236 | 231 | 223 | 214 | 203 | 191 | 177 | 160 | 138 | 115 | 88 | |
