Technical Data
Applications
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
Operating conditions
- Maximum fluid temperature up to +50ºC
- Maximum sand content:0.25%
- Maximum immersion:100m.
- Minimum well diameter:6"
Motor and Pump
- Rewindable motor or Full obturated screen motor
- Three-phase:380V-415V/50Hz
- Direct start(1 cable)
- Star-delta start(2 cable)
- Equip with start control box or digital
- Auto-control box
- NEMA dimension standards
- Curve tolerance according to ISO 2548
Options on request
- Special mechanical seal
- Other voltages or frequency 60Hz
Warranty: 1 year
- (according to our general sales conditions).

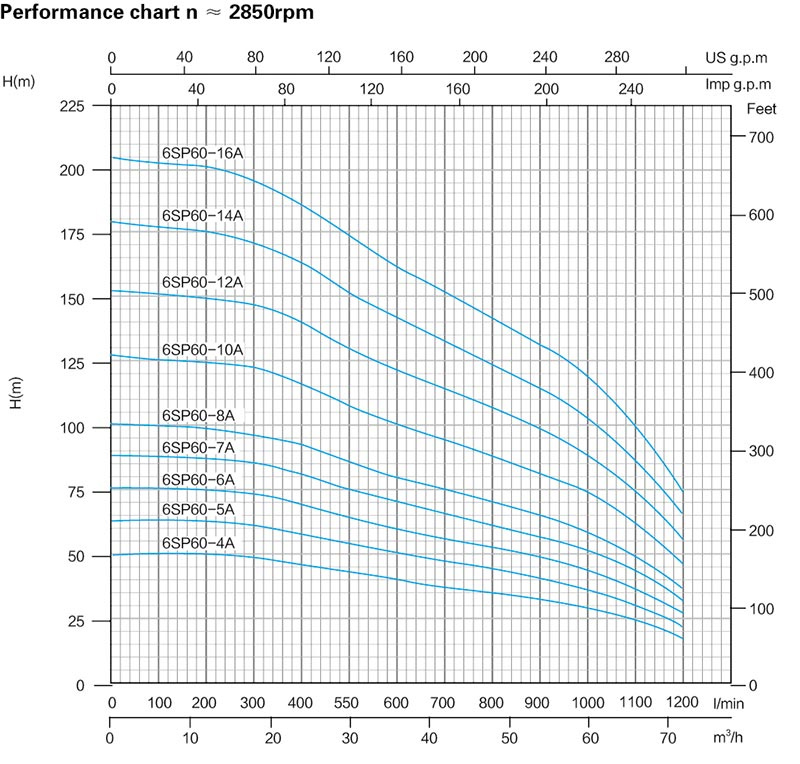

MODEL | POWER | Capacity and Head | ||||||||||||||
380V/415V-50Hz/2850rpm | KW | HP | m3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 |
I/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | |||
6SP60-4A | 7.5 | 10 | Head (m) | 51 | 51 | 50 | 49 | 27 | 44 | 41 | 38 | 36 | 33 | 30 | 25 | 19 |
6SP60-5A | 9.2 | 12.5 | 64 | 63 | 63 | 61 | 40 | 54 | 51 | 48 | 44 | 41 | 37 | 32 | 23 | |
6SP60-6A | 11 | 15 | 77 | 76 | 75 | 74 | 53 | 65 | 61 | 57 | 53 | 50 | 45 | 38 | 28 | |
6SP60-7A | 13 | 17.5 | 89 | 88 | 88 | 86 | 67 | 75 | 71 | 67 | 62 | 58 | 53 | 44 | 33 | |
6SP60-8A | 15 | 20 | 102 | 101 | 100 | 98 | 80 | 87 | 81 | 76 | 71 | 66 | 60 | 51 | 38 | |
6SP60-10A | 18.5 | 25 | 128 | 126 | 125 | 123 | 94 | 106 | 101 | 95 | 89 | 83 | 75 | 63 | 47 | |
6SP60-12A | 22 | 30 | 153 | 152 | 150 | 147 | 107 | 131 | 122 | 114 | 107 | 99 | 90 | 76 | 56 | |
6SP60-14A | 26 | 35 | 179 | 177 | 175 | 172 | 120 | 152 | 142 | 133 | 124 | 116 | 105 | 88 | 66 | |
6SP60-16A | 30 | 40 | 204 | 202 | 200 | 196 | 134 | 174 | 162 | 152 | 142 | 132 | 120 | 101 | 75 |
