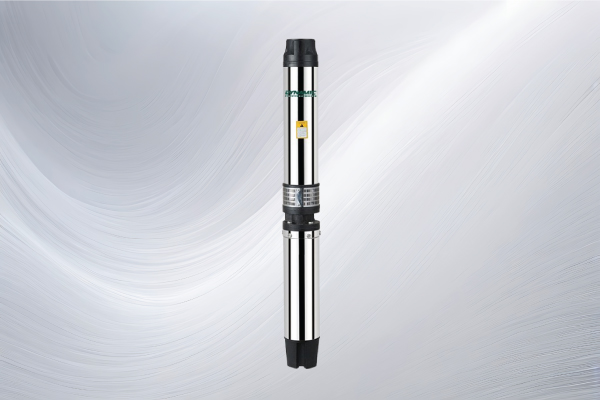

Dynamic Submersible pump 6SR18

HomeDynamic Submersible pump 6SR18

Technical Data

Applications

For water supply from wells or reservoir
For domestic use, for civil and industrial application
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35ºC
Maximum sand content:0.25%
Maximum immersion:100m.
Minimum well diameter:6"

Motor and Pump

Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Direct start(1 cable)
Star-delta start(2 cable)
Equip with start control box or digital
Auto-control box

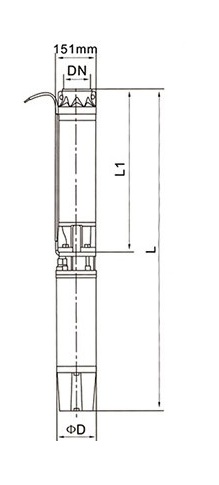

NEMA dimension standards
Curve tolerance according to ISO 2548

Options on request

Special mechanical seal
Other voltages or frequency 60Hz

Warranty: 1 year

(according to our general sales conditions).

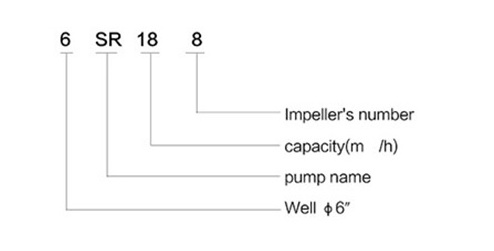

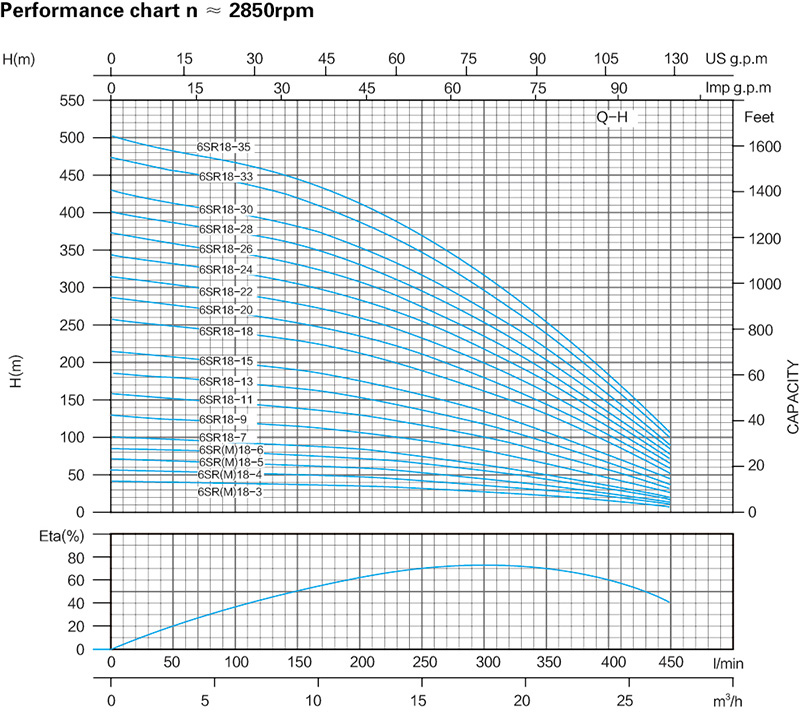

MODEL		P2		DELIVERY n~2850l/min
1~ 220V/240V	3~ 380V/415V	KW	HP	m3/h	0	3	6	9	12	15	18	21	24	27
1~ 220V/240V	3~ 380V/415V	KW	HP	I/min	0	50	100	150	200	250	300	350	400	450
6SRM18-3	6SR18-3	2.2	3		43	41	40	38	35	32	27	22	16	9
6SRM18-4	6SR18-4	3	4		57	55	53	51	47	42	36	29	21	12
6SRM18-5	6SR18-5	4	5.5		72	63	67	64	59	53	45	36	26	15
6SRM18-6	6SR18-6	5.5	7.5		86	83	80	76	71	63	55	44	32	18
-	6SR18-7	5.5	7.5		101	97	94	89	83	74	65	51	37	21
-	6SR18-9	7.5	10		129	124	120	114	106	95	82	66	48	27
-	6SR18-11	9.2	12.5		158	152	147	140	130	116	100	80	58	33
-	6SR18-13	11	15		187	179	174	165	153	137	118	95	69	39
-	6SR18-15	13	17.5		216	207	201	191	177	158	136	109	79	45
-	6SR18-18	15	20		259	248	241	229	212	190	164	131	95	54
-	6SR18-20	18.5	25		287	276	267	254	236	211	182	146	106	660
-	6SR18-22	18.5	25		316	304	294	280	260	232	200	160	116	66
-	6SR18-24	22	30		345	331	321	305	283	253	218	175	127	72
-	6SR18-26	22	3		374	359	348	331	307	274	236	189	137	78
-	6SR18-28	26	35		402	386	374	256	330	295	254	204	148	84
-	6SR18-30	26	35		431	414	401	381	354	316	273	219	159	90
-	6SR18-33	30	40		474	455	441	420	389	348	300	240	174	99
-	6SR18-35	30	40		503	483	468	445	413	369	318	255	185	105
