Technical Data
Applications
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
Operating conditions
- Maximum fluid temperature up to +35ºC
- Maximum sand content:0.25%
- Maximum immersion:100m.
- Minimum well diameter:6"
Motor and Pump
- Rewindable motor or Full obturated screen motor
- Three-phase:380V-415V/50Hz
- Direct start(1 cable)
- Star-delta start(2 cable)
- Equip with start control box or digital
- Auto-control box
- NEMA dimension standards
- Curve tolerance according to ISO 2548
Options on request
- Special mechanical seal
- Other voltages or frequency 60Hz
Warranty: 1 year
- (according to our general sales conditions).

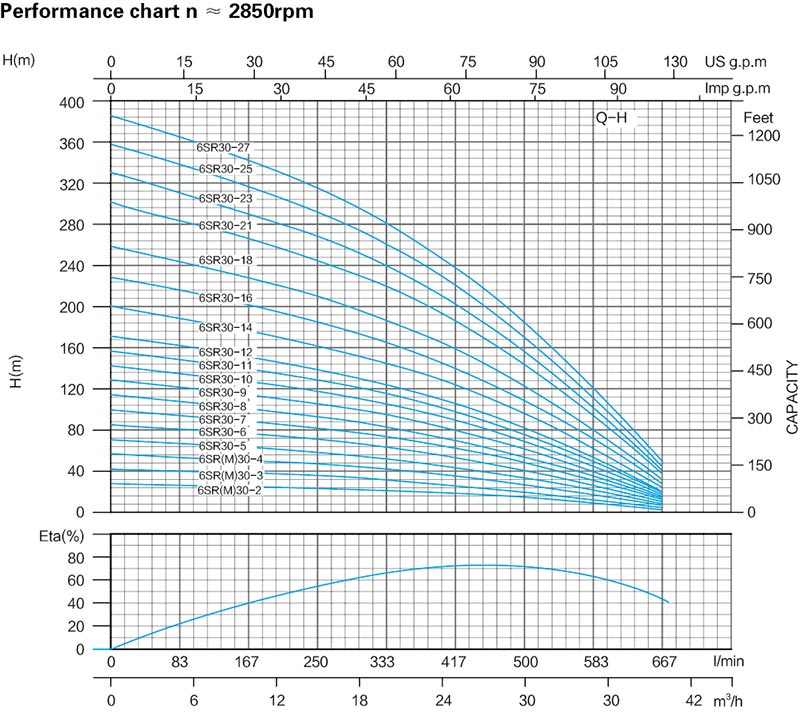

| MODEL | P2 | DELIVERY n~2850l/min | |||||||||||
| 1~ 220V/240V |
3~ 380V/415V |
KW | HP | m3/h | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| I/min | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | 667 | ||||
| 6SRM30-2 | 6SR30-2 | 3 | 4 | 29 | 27 | 25 | 23 | 21 | 17 | 14 | 9 | 4 | |
| 6SRM30-3 | 6SR30-3 | 4 | 5.5 | 43 | 41 | 38 | 35 | 31 | 26 | 20 | 14 | 5 | |
| 6SRM30-4 | 6SR30-4 | 5.5 | 7.5 | 57 | 54 | 50 | 47 | 42 | 35 | 27 | 18 | 7 | |
| - | 6SR30-5 | 5.5 | 7.5 | 71 | 68 | 63 | 58 | 52 | 44 | 34 | 23 | 9 | |
| - | 6SR30-6 | 7.5 | 10 | 86 | 81 | 76 | 70 | 62 | 52 | 41 | 27 | 11 | |
| - | 6SR30-7 | 7.5 | 10 | 100 | 95 | 88 | 81 | 73 | 61 | 47 | 32 | 12 | |
| - | 6SR30-8 | 9.2 | 12.5 | 114 | 108 | 101 | 93 | 83 | 70 | 54 | 36 | 15 | |
| - | 6SR30-9 | 9.2 | 12.5 | 129 | 122 | 113 | 105 | 94 | 79 | 61 | 41 | 16 | |
| - | 6SR30-10 | 11 | 15 | 143 | 135 | 126 | 116 | 104 | 87 | 68 | 45 | 18 | |
| - | 6SR30-11 | 11 | 15 | 157 | 149 | 139 | 128 | 114 | 96 | 75 | 50 | 20 | |
| - | 6SR30-12 | 13 | 17.5 | 172 | 162 | 151 | 140 | 125 | 105 | 81 | 54 | 22 | |
| - | 6SR30-14 | 15 | 20 | 200 | 189 | 176 | 163 | 146 | 122 | 95 | 63 | 25 | |
| - | 6SR30-16 | 18.5 | 25 | 229 | 216 | 201 | 186 | 167 | 140 | 108 | 72 | 29 | |
| - | 6SR30-18 | 18.5 | 25 | 257 | 243 | 227 | 209 | 187 | 157 | 122 | 81 | 33 | |
| - | 6SR30-21 | 22 | 30 | 300 | 286 | 264 | 244 | 219 | 184 | 142 | 95 | 38 | |
| - | 6SR30-23 | 26 | 35 | 329 | 311 | 290 | 267 | 239 | 201 | 156 | 104 | 42 | |
| - | 6SR30-25 | 30 | 40 | 357 | 338 | 315 | 291 | 260 | 219 | 169 | 113 | 45 | |
| - | 6SR30-27 | 30 | 40 | 386 | 365 | 340 | 314 | 281 | 236 | 183 | 122 | 49 | |
