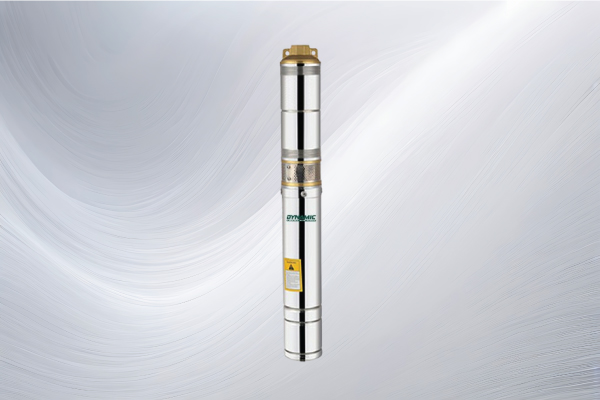

Series Submersible Screw Pumps
Pump
- Capacity from 1.0 to 2(m³/h)
- Total head from 50 to 160(m)
Motor
- Adopted the NEWA standard
- Power:0.37 to 11 kW (Single phase)
- Insulation class:B
- Protection grade: IP 68
- Maximum Diameter: Φ 94.5mm
- Highest temperature of liquid :35ºC
| POWER | Capacity and Head | Voltage | Max. Dia | pipe Dia | Dimension | ||
| KW | HP | m3/h | m | V | mm | inch | mm |
| 0.37 | 0.5 | 1.2 | 50 | 220/380 | 96 | 1 | 640x140x140 |
| 0.5 | 0.7 | 1.8 | 50 | 220/380 | 96 | 1 | 640x140x140 |
| 0.75 | 1 | 1.2 | 100 | 220/380 | 96 | 1 | 720x 140x140 |
| 0.75 | 1 | 2.5 | 60 | 220/380 | 96 | 1 | 300x140x140 |
| 1.1 | 1.5 | 1.8 | 100 | 220/380 | 96 | 1 | 730x140x140 |
| 1.1 | 1.5 | 1.5 | 120 | 220/380 | 96 | 1 | 730x140x140 |
