Technical Data
Applications
- For water supply from wells or reservoir
- For domestic use, for civil and industrial application
- For garden use and irrigation
Operating conditions
- Maximum fluid temperature up to +50ºC
- Maximum sand content:0.5%
- Maximum immersion:100m.
- Minimum well diameter:6"
Motor and Pump
- Rewindable motor or Full obturated screen motor
- Three-phase:380V-415V/50Hz
- Direct start(1 cable)
- Star-delta start(2 cable)
- Equip with start control box or digital
- Auto-control box
- NEMA dimension standards
- Curve tolerance according to ISO 9906
Options on request
- Special mechanical seal
- Other voltages or frequency 60Hz
Warranty: 1 year
- (according to our general sales conditions).

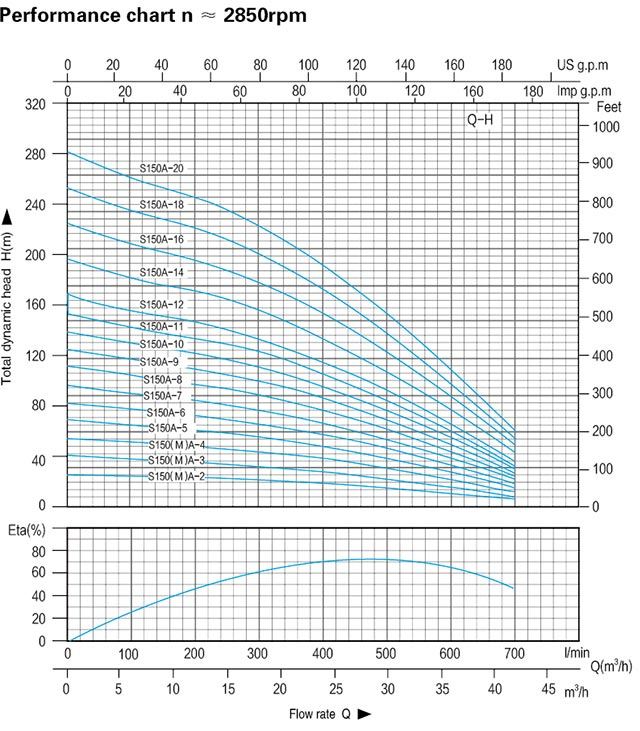

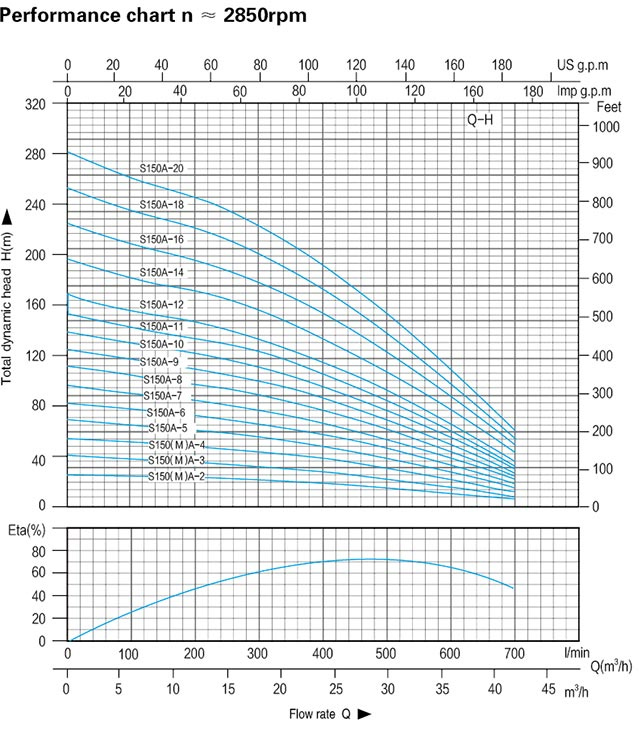

| 220V/240V-50Hz/2850rpm | 380V/415V-50Hz/2850rpm | KW | HP | m3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 |
| I/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | ||||
| S150MA-2 | S150MA-2 | 3 | 4 | Head (m) | 28 | 26 | 25 | 22 | 19 | 15 | 11 | 6 |
| S150MA-3 | S150MA-3 | 4 | 5.5 | 42 | 39 | 37 | 33 | 29 | 23 | 16 | 9 | |
| S150MA-4 | S150MA-4 | 5.5 | 7.5 | 57 | 53 | 49 | 45 | 39 | 31 | 22 | 12 | |
| - | S150MA-5 | 7.5 | 10 | 71 | 66 | 62 | 56 | 48 | 38 | 27 | 15 | |
| - | S150MA-6 | 7.5 | 10 | 85 | 79 | 74 | 67 | 58 | 46 | 33 | 18 | |
| - | S150MA-7 | 9.2 | 12.5 | 99 | 92 | 86 | 78 | 68 | 54 | 38 | 21 | |
| - | S150MA-8 | 11 | 15 | 113 | 105 | 99 | 89 | 77 | 61 | 44 | 24 | |
| - | S150MA-9 | 11 | 15 | 127 | 118 | 111 | 100 | 87 | 69 | 49 | 27 | |
| - | S150MA-10 | 13 | 17.5 | 142 | 132 | 124 | 111 | 96 | 76 | 54 | 30 | |
| - | S150MA-11 | 15 | 20 | 156 | 145 | 136 | 123 | 106 | 84 | 60 | 33 | |
| - | S150MA-12 | 15 | 20 | 170 | 158 | 148 | 134 | 116 | 92 | 65 | 36 | |
| - | S150MA-14 | 18.5 | 25 | 198 | 184 | 173 | 156 | 135 | 107 | 76 | 42 | |
| - | S150MA-16 | 18.5 | 25 | 226 | 210 | 198 | 178 | 154 | 122 | 87 | 48 | |
| - | S150MA-18 | 22 | 30 | 255 | 237 | 222 | 201 | 174 | 138 | 98 | 54 | |
| - | S150MA-20 | 22 | 30 | 283 | 263 | 247 | 223 | 193 | 153 | 109 | 60 |
