Application Limits
- Suction head up to 9m
- Liquid temperature up to +40℃
- Ambient temperature up to +40℃
- Max. Working pressure: 6bar
- Voltage fluctuation should not exceed 10% of rated value.
- pH: 6.5 to 8.5
Applications Fields
- Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
- Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.
Feature

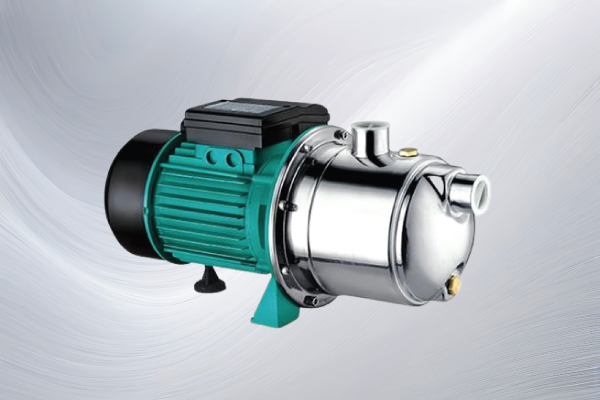

- 304 stainless steel pressed tensile pump body & pump cover
- Hydraulic optimization design, excellent performance
- Nozzle, guide vane and the impeller PPO engineering plastics
- Products are complete in specifications, meet drinking water standards
Performance Range
- Max. Flow: 6m3/h
- Max. Head: 48m
Motor
- Single-Phase 220V/50Hz
- Three-Phase 380V/50Hz
- Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
- Protection: IP44
- Insulation: Class B
Optional Available on Request
- NSK bearing
- Motor whose insulation class is F
- Other voltage or frequency is 60Hz
| Model | Power | Max. Flow (m3/h) |
Max. Head (m) |
Max. Suction (m) |
Capacity (m3/h) |
0.4 m3/h | 1.2 m3/h | 2 m3/h | 2.8 m3/h | 3.6 m3/h | 4.4 m3/h | |
| KW | HP | |||||||||||
| GKS37-0.37 | 0.25 | 0.37 | 3.2 | 28 | 8 | Head (m) | 25 | 19 | 13 | 7 | - | - |
| GKS50-0.50 | 0.37 | 0.5 | 3.6 | 32 | 8 | 28 | 22 | 17 | 11 | - | - | |
| GKS75-0.75 | 0.55 | 0.75 | 4.2 | 35 | 9 | 32 | 27 | 22 | 16 | 12 | - | |
| GKS100-1 | 0.75 | 1 | 5.1 | 40 | 9 | 37 | 33 | 28 | 23 | 18 | 13 | |
| GKS110-1.1 | 1.1 | 1.5 | 6 | 48 | 9 | 46 | 42 | 37 | 32 | 28 | 23 | |
