Features
- Cable base and core wire are dealt with special waterproof treatment to avoid the moisture into the motor.
- Lightweight, durable and corrosion-resistant. The balance of rotor and impeller has been calibrated for the long service life of bearing.
- Main shaft, motor housing, screws, and strainer are made of stainless steel to approach corrosion-resist.
- Good performance, high steady, reducing electric cost, large flow, and easy installation and maintenance.
- Equipped with a high-quality dual SIC mechanical seal.
- Motor is B class (130ā)insulation, enclosure IEC IP68.
- Built-in thermal protector or motor overload protector prevents burnout from overheat.
Application
- Household drainage, garden watering, car washing, garage drainage, and basement or low-lying drainage.
- Mansion, ship and industry pumping and drainage.
- Farm-irrigation, hillside, deep well and stream's water delivery.

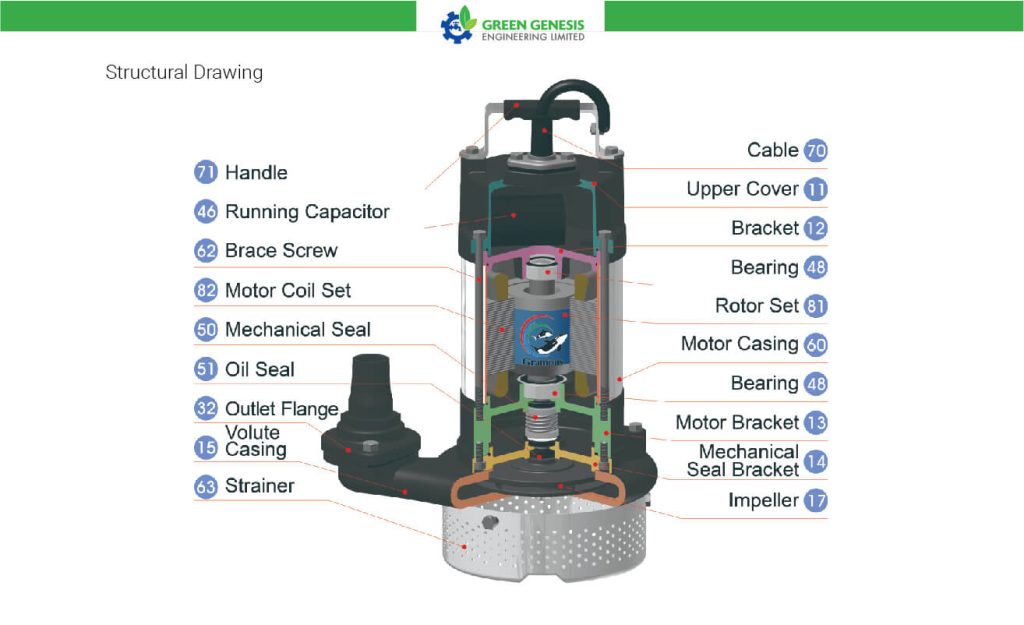

Material And Standard Table
| Calibar | 32mm, 40mm, 50mm, 80mm | ||||||
| Liquid | Temperature | 0Ā°C Ģ“ 40Ā°C (32Ā°F Ģ“ 104 Ā°F) | |||||
| Application | Pumping water for household, garden, farming irrigation, deep well and stream's water delivery. | ||||||
| tde lowest deptd | 30 M | ||||||
| Pump | Structure | Impeller | Channel Centrifugal Impeller | ||||
| Seal | Dual Mechanical Seal | ||||||
| Material | Upper Cover | FC- 200 | |||||
| Bracket | FC-200 | ||||||
| Bearing | Heavy-duty bearing | ||||||
| Motor Bracket | FC-200 | ||||||
| Mechanical Seal Bracket | FC-200 | ||||||
| Impeller | Bronze | ||||||
| Volute Casing | FC-200 | ||||||
| Strainer | SUS-304 | ||||||
| Seal | Lubricant | ISO VG #32 | |||||
| Motor Side | Carbon/ Ceramic | ||||||
| Pump Side | Silicon Carbide/ Silicon Carbide | ||||||
| Motor | Type | Submersible dry type | |||||
| Insulation class | B class (130Ā°C) | ||||||
| Inner protector | Auto Reset Motor Protector | ||||||
| Material | Casing | SUS-304 | |||||
| Main Shaft | SUS-410/ SUS-420 | ||||||
| Cable | Standard VCT | ||||||

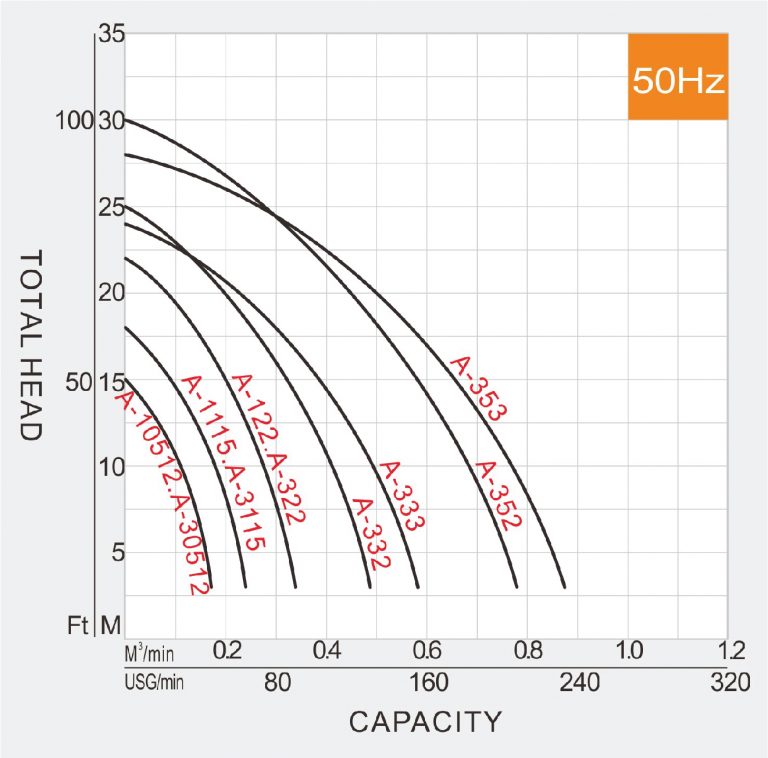

Performance Curve

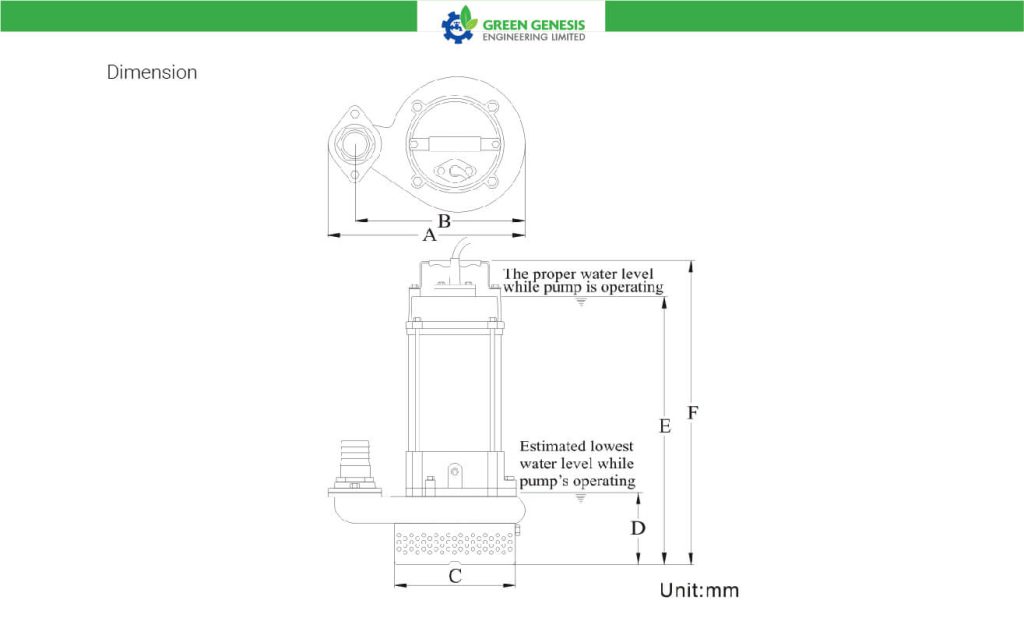

| Type | A | B | C | D | E | F |
| A-10512 | 265 | 225 | 160 | 85 | 320 | 370 |
| A-30512 | 265 | 225 | 160 | 85 | 290 | 345 |
| A-1115 | 265 | 225 | 160 | 85 | 350 | 400 |
| A-3115 | 265 | 225 | 160 | 85 | 320 | 375 |
| A-122 | 290 | 250 | 180 | 100 | 440 | 495 |
| A-322 | 290 | 250 | 180 | 100 | 370 | 425 |
| A-332 | 335 | 280 | 195 | 120 | 420 | 485 |
| A-333 | 335 | 280 | 195 | 120 | 420 | 485 |
| A-352 | 335 | 280 | 195 | 120 | 440 | 505 |
| A-353 | 335 | 280 | 195 | 120 | 440 | 505 |
| Type | Frequency | Phase | Power | Discharge | Ploe/Rotation | Std. Head | Std. Flow | Max. Head | Max. Flow | Weight | |||
| Hz | PH | HP | KW | Inch | mm | P/rpm | M | M3/min | M | M3/min | KG | ||
| A-10512 | 50 | 1Ī¦ | 0.5 | 0.4 | 1.25" | 32 | 2P/2850 | 10 | 0.11 | 15 | 0.18 | 15 | |
| A-30512 | 50 | 3Ī¦ | 0.5 | 0.4 | 1.25" | 32 | 2P/2850 | 10 | 0.11 | 15 | 0.18 | 14 | |
| A-1115 | 50 | 1Ī¦ | 1 | 0.75 | 1.5" | 40 | 2P/2850 | 12 | 0.15 | 18 | 0.25 | 18 | |
| A-3115 | 50 | 3Ī¦ | 1 | 0.75 | 1.5" | 40 | 2P/2850 | 12 | 0.15 | 18 | 0.25 | 17 | |
| A-122 | 50 | 1Ī¦ | 2 | 1.5 | 2" | 50 | 2P/2850 | 15 | 0.2 | 22 | 0.35 | 28 | |
| A-322 | 50 | 3Ī¦ | 2 | 1.5 | 2" | 50 | 2P/2850 | 15 | 0.2 | 22 | 0.35 | 25 | |
| A-332 | 50 | 3Ī¦ | 3 | 2.2 | 2" | 50 | 2P/2850 | 20 | 0.2 | 25 | 0.5 | 33 | |
| A-333 | 50 | 3Ī¦ | 3 | 2.2 | 3" | 80 | 2P/2850 | 18 | 0.3 | 24 | 0.6 | 33 | |
| A-352 | 50 | 3Ī¦ | 5 | 3.7 | 2" | 50 | 2P/2850 | 20 | 0.45 | 30 | 0.8 | 37 | |
| A-353 | 50 | 3Ī¦ | 5 | 3.7 | 3" | 80 | 2P/2850 | 20 | 0.5 | 28 | 0.9 | 37 | |
