Features
- Won the National Standard, CNS, NO. 8080 and 9813 which is by the Ministry of Economic Affairs in Taiwan.
- Equipped with Epoxy Resin cable avoids the moist into the motor.
- Dry motor is 3 phase, 2 or 4 poles, and class F (155°C) Insulation and IEC IP68.
- Dual mechanical seal is made of silicon carbine with wear-resistant, excellent lubricant and durable.
- Ball-bearing with high wear torque, low noise, low vibration and to extend the service life.
- Thick EPOXY coating is better than common painting in corrosion-resistance and rust-resistance.
- The Auto-cut protector usually built-in 2-10 HP of AS series submersible pumps, the miniature thermal protector will be built-in between 15-30HP submersible pumps. Those will shut off automatically to prevent overheat whenever its voltage drop-down, impeller plugged, water level under the watermark and other unusual Conditions.
- Three kinds of impellers, semi-open, closed, vortex, are optional as the picture for various wastewater treatment.
Application
- Building a wastewater treatment system, sewage treatment plant, community market, sanitary sewer.
- Drainage wastewater from the paper industry, dyeing industry, foodstuff industry, leather industry and iron and steel industry.
- Fishery, animal husbandry, dairy farm, piggery, fecal sewage tank, and industrial water supply.
- Other sewage or sump treatment system.

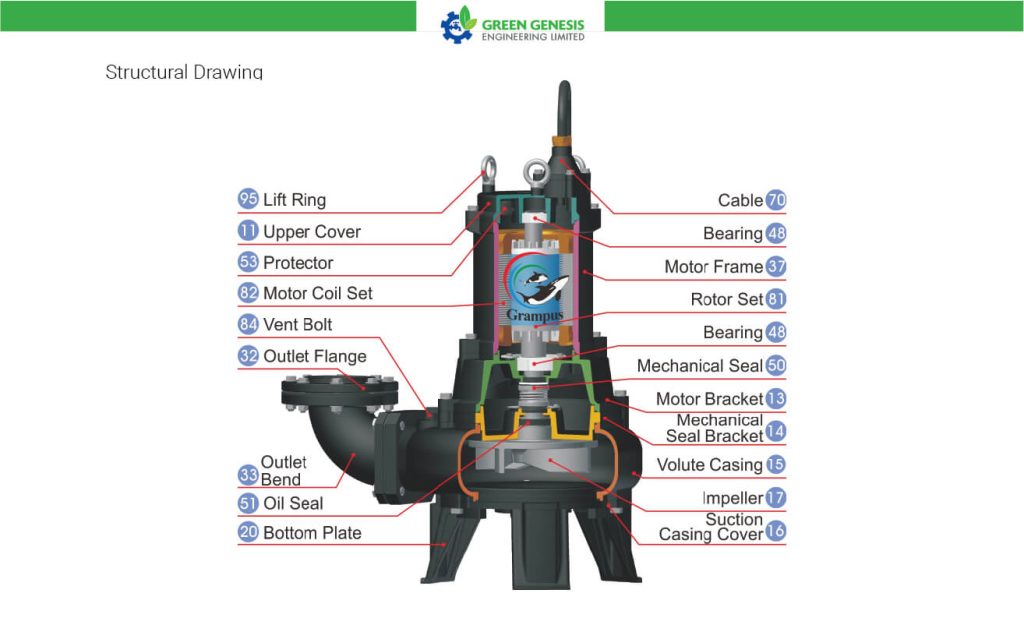

Material And Standard Table
| Calibar | 50mm, 80mm, 100mm, 150mm, 200mm | ||||||
| Liquid | Coating | Epoxy | |||||
| Temperature | 0°C ̴ 40°C (32°F ̴ 104 °F) | ||||||
| Application | Drainage of wastewater of building, farming, animal husbandry,industry and sewer. | ||||||
| The lowest depth | 30 M | ||||||
| Pump | Structure | Impeller | Semi-open, Channel, Vortex Impeller | ||||
| Seal | Dual Mechanical Seal | ||||||
| Material | Upper Cover | FC- 200 | |||||
| Bearing | Heavy-duty bearing | ||||||
| Impeller | FCD-450 | ||||||
| Volute Casing | FC-200 | ||||||
| Suction Casing Cover | FC-200 | ||||||
| Seal | Lubricant | ISO VG #32 | |||||
| Motor Side | Carbon/ Ceramic | ||||||
| Pump Side | Silicon Carbide/ Silicon Carbide | ||||||
| Inner protector | Below 15 HP models are optional | ||||||
| Motor | Type | Submersible dry type | |||||
| Insulation class | F class (155°C) | ||||||
| Inner protector | 1-10HP: Auto Reset Motor Protector 15-30HP: Maniature Thermal Protector | ||||||
| Material | Casing | FC-200 | |||||
| Main Shaft | SUS-410/ SUS-420 | ||||||
| Cable | Standard VCT | ||||||

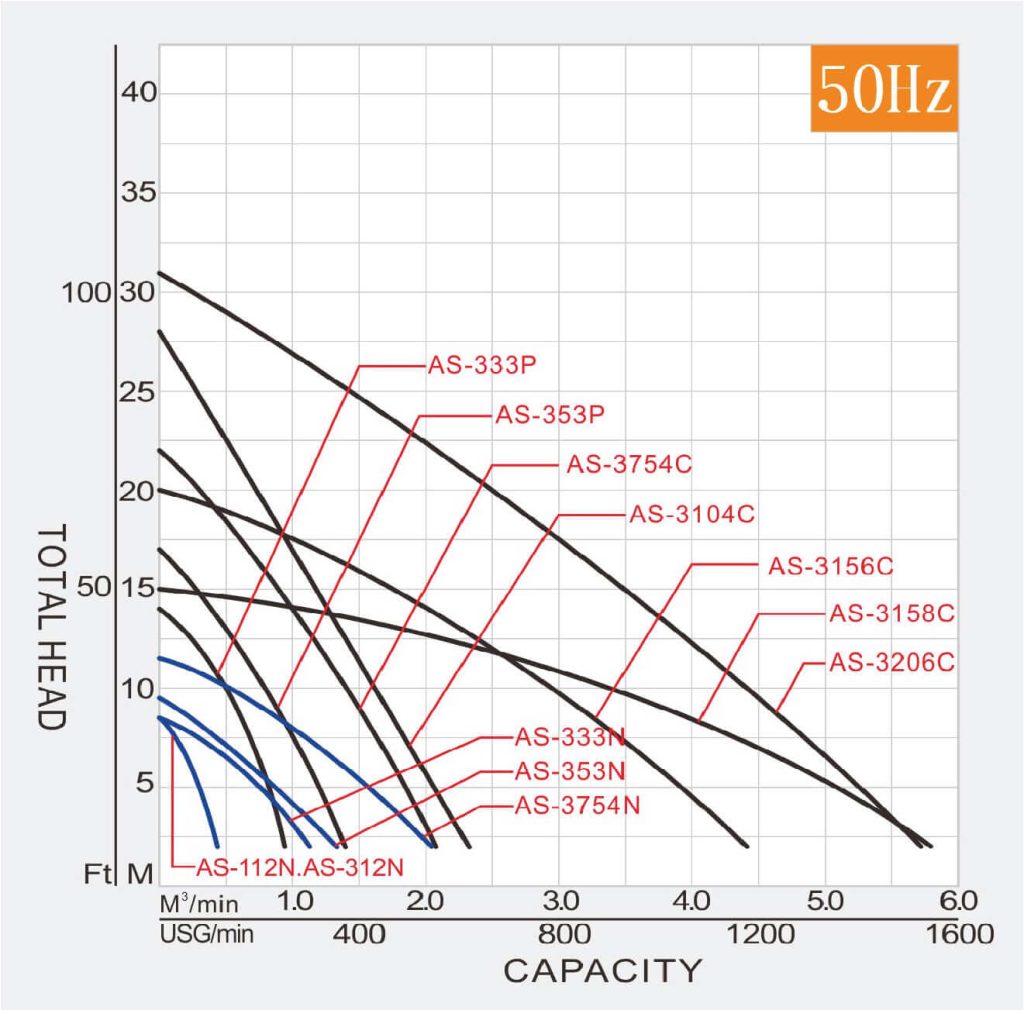

Performance Curve

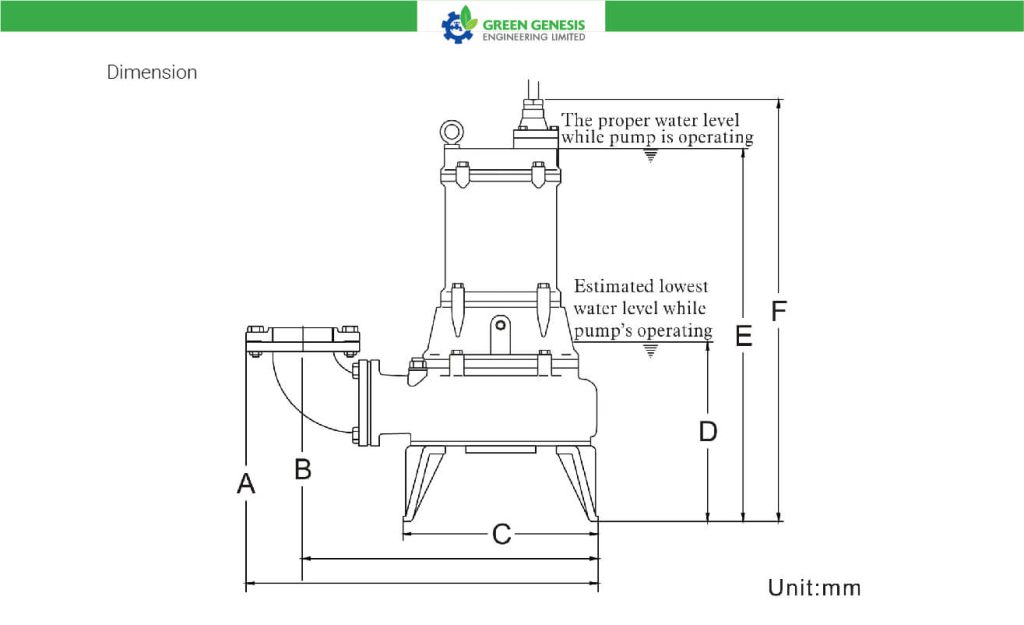

| Type | A | B | C | D | E | F |
| AS-112 | 290 | 250 | 195 | 135 | 530 | 600 |
| AS-312 | 290 | 250 | 195 | 135 | 480 | 550 |
| AS-323S | 425 | 370 | 250 | 200 | 455 | 530 |
| AS-333 | 545 | 455 | 325 | 285 | 575 | 645 |
| AS-353 | 545 | 455 | 325 | 285 | 600 | 670 |
| AS-3754 | 700 | 595 | 405 | 320 | 700 | 805 |
| AS-3104 | 700 | 595 | 405 | 320 | 700 | 805 |
| AS-3156 | 925 | 785 | 450 | 455 | 890 | 995 |
| AS-3158 | 970 | 805 | 450 | 540 | 910 | 1015 |
| AS-3206 | 925 | 785 | 450 | 455 | 940 | 1045 |
| AS-3208 | 970 | 805 | 450 | 540 | 960 | 1065 |
| AS-3256 | 925 | 785 | 450 | 455 | 1010 | 1120 |
| AS-3306 | 925 | 785 | 450 | 455 | 1010 | 1120 |
| Type | Frequency | Phase | Start Method | Power | Discharge | Ploe/Rotation | Std. Head | Std. Flow | Max. Head | Max. Flow | AS Weight | TOS-AS Weight | Solid Passage | ||||
| Hz | PH | HP | KW | Inch | mm | P/rpm | M | M3/min | M | M3/min | KG | mm | |||||
| AS-323S | - | 3Φ | Direct | 2 | 1.5 | 3" | 80 | 4P/1425 | -- | -- | -- | -- | 43 | 63 | 40 | ||
| AS-333P | 50 | 3Φ | Direct | 3 | 2.2 | 3" | 80 | 4P/1425 | 10 | 0.5 | 14 | 1 | 72 | 92 | 50 | ||
| AS-353P | 50 | 3Φ | Direct | 5 | 3.7 | 3" | 80 | 4P/1425 | 13 | 0.5 | 17 | 1.5 | 76 | 96 | 70 | ||
| AS-3754C | 50 | 3Φ | Direct | 7.5 | 5.5 | 4" | 100 | 4P/1425 | 14 | 1 | 22 | 2.2 | 145 | 165 | 48 | ||
| AS-3104C | 50 | 3Φ | Direct | 10 | 7.5 | 4" | 100 | 4P/1425 | 17 | 1 | 28 | 2.5 | 150 | 170 | 48 | ||
| AS-3156C | 50 | 3Φ | Y- Δ | 15 | 11 | 6" | 150 | 4P/1425 | 12 | 2.5 | 20 | 4.7 | 265 | 340 | 70 | ||
| AS-3158C | 50 | 3Φ | Y- Δ | 15 | 11 | 8" | 200 | 4P/1425 | 7 | 4.5 | 15 | 6.17 | 270 | 360 | 80 | ||
| AS-3206C | 50 | 3Φ | Y- Δ | 20 | 15 | 6" | 150 | 4P/1425 | 20 | 2.5 | 31 | 6 | 280 | 355 | 70 | ||
| AS-3208C | - | 3Φ | Y- Δ | 20 | 15 | 8" | 200 | 4P/------ | -- | -- | -- | -- | 285 | 375 | 80 | ||
| AS-3256C | - | 3Φ | Y- Δ | 25 | 19 | 6" | 150 | 4P/1425 | -- | -- | -- | -- | 375 | 450 | 70 | ||
| AS-3306C | - | 3Φ | Y- Δ | 30 | 22 | 6" | 150 | 4P/1425 | -- | -- | -- | -- | 390 | 465 | 70 | ||
