Features
- Cable base and core wire are dealt with Epoxy Resin to avoid the moisture into the motor.
- Volute casing is equipped with the vortex impeller for drawing out mud and sewage effectively.
- Equipped with vent bolt at volute casing is to avoid air lock ensuring the pump operation steady.
- Equipped with a high-quality dual SIC mechanical seal.
- Motor is B class(130°C) insulation, enclosure IEC IP68.
- Auto-cut prevents the motor from overheat.
- This type can be equipped with a lift bracket.
Application
- Wastewater lift station, municipal wastewater treatment plant.
- Building a wastewater treatment system.
- Piggery excrement, animal & poultry farm.
- School, hospital, community wastewater treatment system.
- Food, paper, mining, textile, leather industry wastewater treatment system.
Material And Standard Table
| Calibar | 50mm, 80mm, 100mm | ||||||
| Liquid | Temperature | 0°C ̴ 40°C (32° ̴ 104 °F) | |||||
| Application | Available todeal with wastewater of building, sewer and industrial wastewater of food, paper, mining, textile, leather, dyeing and metal. | ||||||
| The lowest depth | 30 M | ||||||
| Pump | Structure | Impeller | Vortex Impeller | ||||
| Seal | Dual Mechanical Seal | ||||||
| Material | Upper Cover | FC- 200 | |||||
| Bearing | Heavy-duty bearing | ||||||
| Impeller | FC-200 | ||||||
| Volute Casing | FC-200 | ||||||
| Bottom Plate | 0.5- 1 HP: Engineering strength fiber reasin(STD) 2- 15 HP: FC: 200 | ||||||
| Motor Bracket | FC-200 | ||||||
| Mechanical Seal Bracket | FC-200 | ||||||
| Seal | Lubricant | ISO VG #32 | |||||
| Motor Side | Carbon/ Ceramic | ||||||
| Pump Side | Silicon Carbide/ Silicon Carbide | ||||||
| Motor | Type | Submersible dry type | |||||
| Insulation class | B class (130°C)/ F class(7.5- 15 HP) | ||||||
| Inner protector | Auto Reset Motor Protector | ||||||
| Material | Casing | SUS-304 | |||||
| Main Shaft | SUS-410/ SUS-420 | ||||||
| Cable | Standard VCT | ||||||

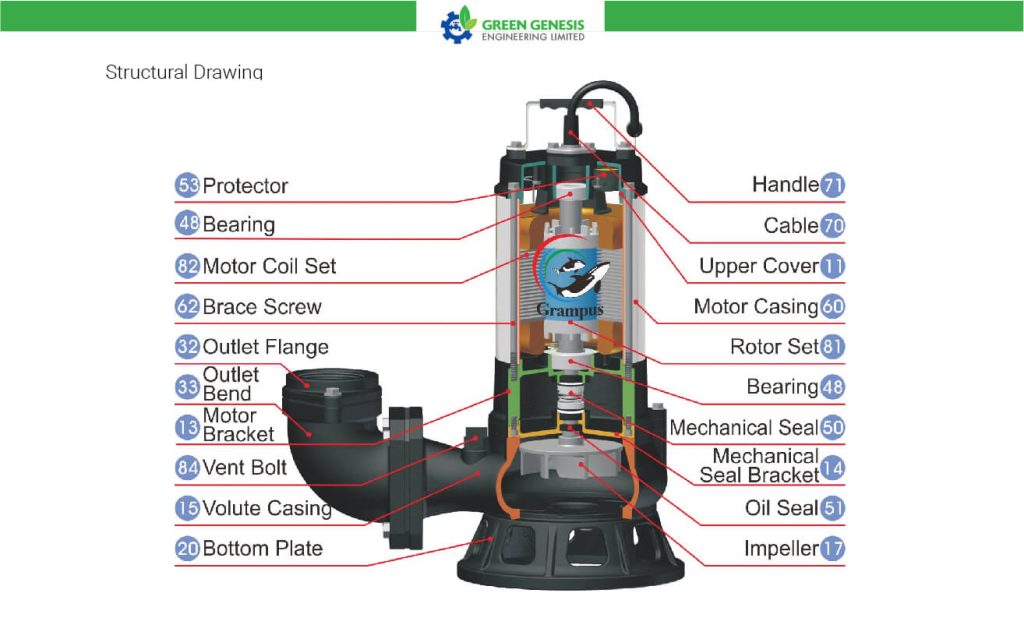

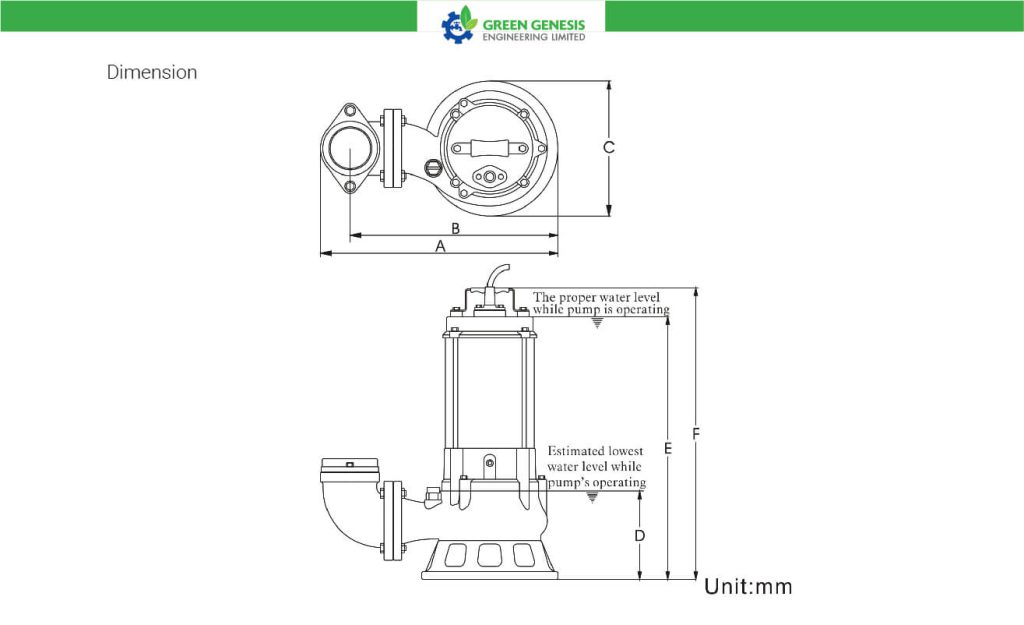

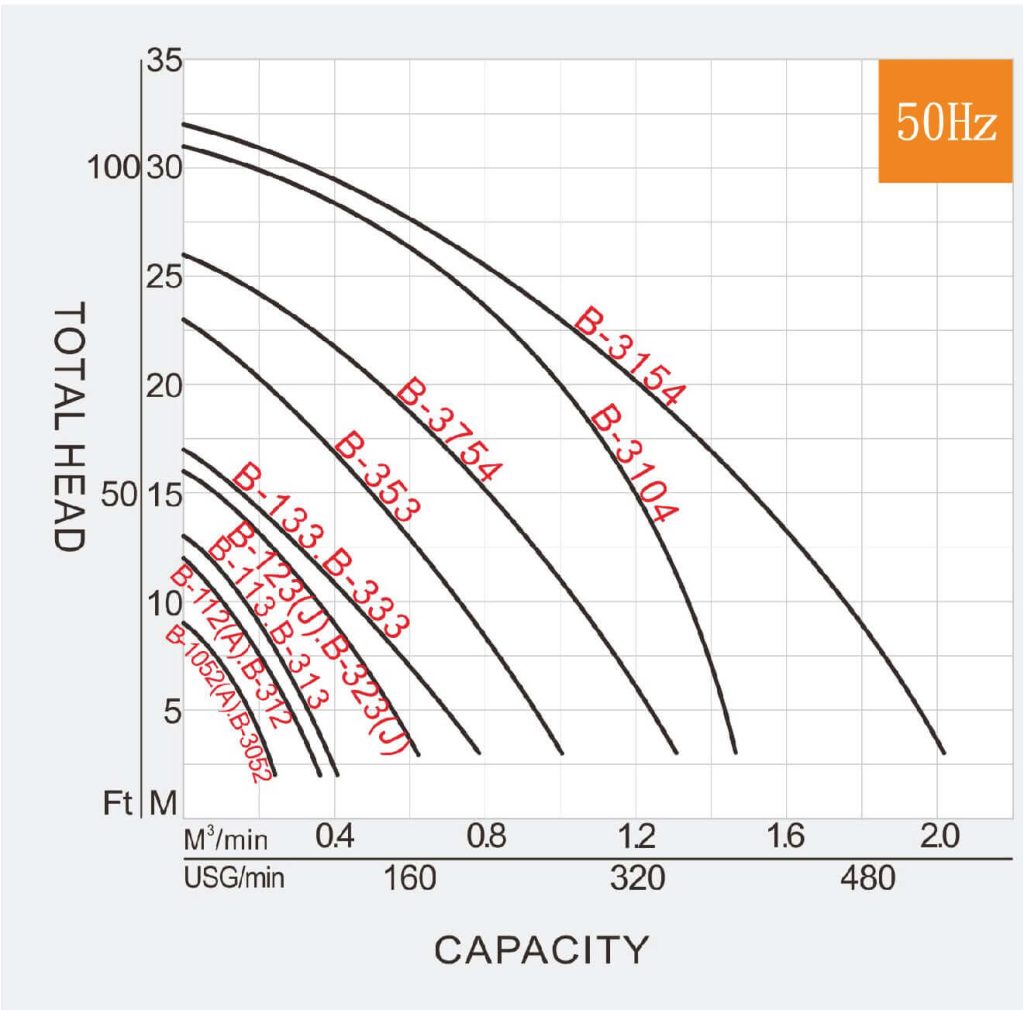

Performance Curve
| Type | A | B | C | D | E | F |
| B-1052(A) | 235 | 195 | 165 | 135 | 355 | 420 |
| B-3052 | 235 | 195 | 165 | 135 | 330 | 395 |
| B-112(A) | 235 | 195 | 165 | 135 | 390 | 450 |
| B-312 | 235 | 195 | 165 | 135 | 360 | 425 |
| B-113 | 265 | 210 | 165 | 135 | 390 | 450 |
| B-313 | 265 | 210 | 165 | 135 | 360 | 425 |
| B-123(J) | 330/405 | 275/355 | 220 | 155 | 505/490 | 570/560 |
| B-323(J) | 330/405 | 275/355 | 220 | 155 | 450/435 | 510/500 |
| B-133 | 445 | 390 | 250 | 150 | 525 | 600 |
| B-333 | 445 | 390 | 250 | 165 | 470 | 540 |
| B-353 | 445 | 390 | 250 | 165 | 490 | 560 |
| B-3754 | 555 | 450 | 250 | 165 | 515 | 595 |
| B-3104 | 555 | 450 | 250 | 165 | 535 | 615 |
| B-3154 | 570 | 465 | 285 | 190 | 595 | 685 |
| Type | Frequency | Phase | Power | Discharge | Ploe/Rotation | Std. Head | Std. Flow | Max. Head | Max. Flow | B Weight | TOS-B Weight | Solid Passage | ||||
| Hz | PH | HP | KW | Inch | mm | P/rpm | M | M3/min | M | M3/min | KG | mm | ||||
| B-1052(A) | 50 | 1Φ | 0.5 | 0.4 | 2" | 50 | 2P/2850 | 4 | 0.2 | 9 | 0.27 | 18 | 27 | 35 | ||
| B-3052 | 50 | 3Φ | 0.5 | 0.4 | 2" | 50 | 2P/2850 | 4 | 0.2 | 9 | 0.27 | 17 | 26 | 35 | ||
| B-112(A) | 50 | 1Φ | 1 | 0.75 | 2" | 50 | 2P/2850 | 7.5 | 0.2 | 12 | 0.4 | 20 | 29 | 35 | ||
| B-312 | 50 | 3Φ | 1 | 0.75 | 2" | 50 | 2P/2850 | 7.5 | 0.2 | 12 | 0.4 | 20 | 29 | 35 | ||
| B-113 | 50 | 1Φ | 1 | 0.75 | 3" | 80 | 2P/2850 | 6 | 0.3 | 13 | 0.45 | 21 | -- | 35 | ||
| B-313 | 50 | 3Φ | 1 | 0.75 | 3" | 80 | 2P/2850 | 6 | 0.3 | 13 | 0.45 | 21 | -- | 35 | ||
| B-123(J) | 50 | 1Φ | 2 | 1.5 | 3" | 80 | 2P/2850 | 6.5 | 0.5 | 16 | 0.7 | 35 | 55 | 40 | ||
| B-323(J) | 50 | 3Φ | 2 | 1.5 | 3" | 80 | 2P/2850 | 6.5 | 0.5 | 16 | 0.7 | 34 | 54 | 40 | ||
| B-133 | 50 | 1Φ | 3 | 2.2 | 3" | 80 | 2P/2850 | 9 | 0.5 | 17 | 0.9 | 45 | 65 | 45 | ||
| B-333 | 50 | 3Φ | 3 | 2.2 | 3" | 80 | 2P/2850 | 9 | 0.5 | 17 | 0.9 | 41 | 61 | 45 | ||
| B-353 | 50 | 3Φ | 5 | 3.7 | 3" | 80 | 2P/2850 | 15 | 0.5 | 23 | 1.1 | 45 | 65 | 40 | ||
| B-3754 | 50 | 3Φ | 7.5 | 5.5 | 4" | 100 | 2P/2850 | 11 | 1 | 26 | 1.4 | 55 | 75 | 50 | ||
| B-3104 | 50 | 3Φ | 10 | 7.5 | 4" | 100 | 2P/2850 | 20 | 1 | 31 | 1.5 | 60 | 80 | 50 | ||
| B-3154 | 50 | 3Φ | 15 | 11 | 4" | 100 | 2P/2850 | 23 | 1 | 32 | 2.1 | 75 | 95 | 50 | ||
