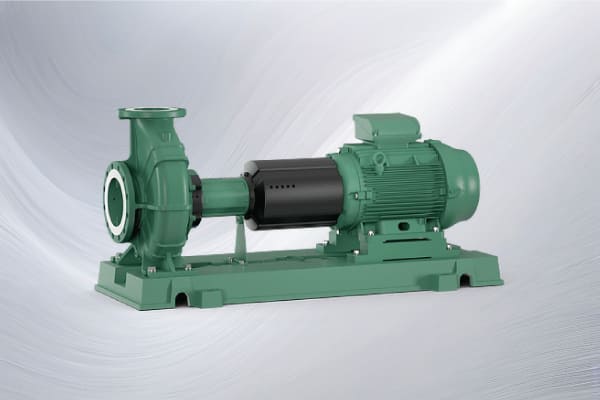

AGN Wilo Pump
  • Capacity: Up to 600m3/hr
  • Head: Up to 150m
  • Temp: up to 120°C
  • Delivery Size: DN 32-DN 150
  • Mounting: Horizontal
  • Stage: Single
  • Back pullout design.
  • Single-stage low-pressure centrifugal pump with axial suction, in accordance with EN 733 and ISO 5199
  • Design Pressure: 16 Bar
  • General industry
  • Chemical & process
  • Water supply
  • Building service/Firefighting
  • Irrigation/sprinkler system
  • Casing – Cast Iron
  • Impeller – Cast Iron / Bronze

Wilo

Model Power Suction Delivery Capacity range Head range Data Curve
kw mm mm m³/h meter
AGN 32-160 2.2-5.5 50 32 16-38 42-29
AGN 32-200 3-7.5 50 32 012-032 57-46
AGN 40-160 4-9 65 40 30-12 8-10.5
AGN 50-250 11-30 65 50 40-90 80-96
AGN 50-200 7.5-18.5 65 50 25-75 68-53
AGN 50-315 03-09 65 50 41-42 25-60
NL 65 - 160 5.5-18.5 80 65 60-150 47-34
AGN 65-200 10-37 80 65 50-165 79-61
AGN 65-250 20-45 80 65 50-180 108-90
AGN 65-315 5.5-15 80 65 20-110 29-43
AGN 80-160 11-22 100 80 40-240 29-45
AGN 80-200 20-45 100 80 60-280 56-82
AGN 80-250 37-90 100 80 100-280 82-112
AGN 100-200 30-75 125 100 80-400 55-75
AGN 100-315 11-30 125 100 80-275 43-28
AGN 100-400 15-55 125 100 80-280 52-66
AGN 125-200 5.5-15 150 125 100-320 18-12
AGN 125-250 7.5-22 150 125 120-330 29-20
AGN 125-315 15-40 150 125 120-380 35-47
AGN 125-400 22-70 150 125 200-450 60-74
AGN 150-250 11-30 200 150 200-500 23-17
AGN 150-315 22-50 200 150 200-560 42-28
AGN 150-400 45-100 200 150 200-640 64-49
